Programming adapter S5

products

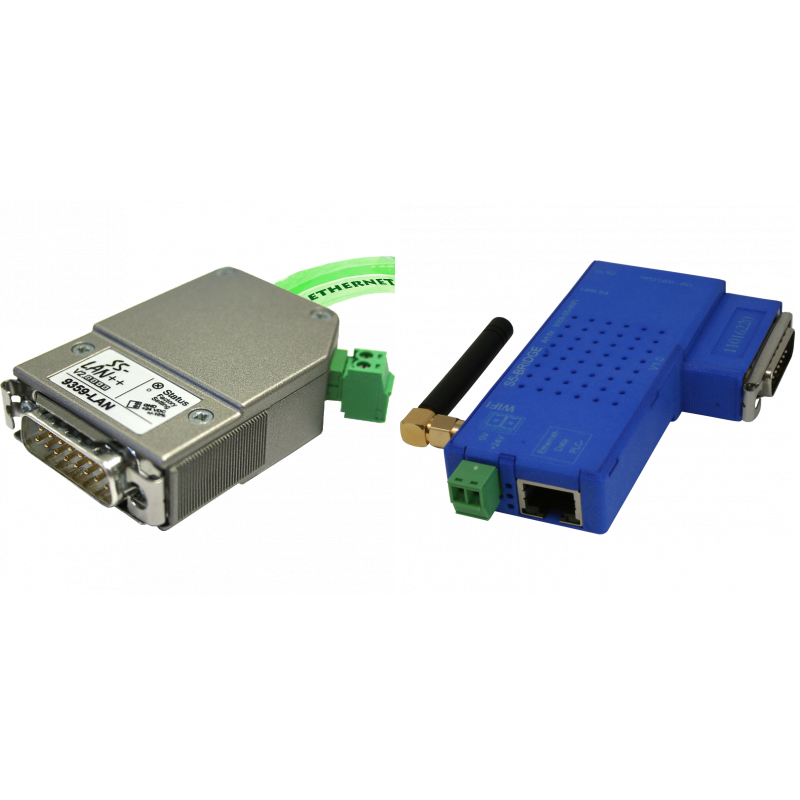

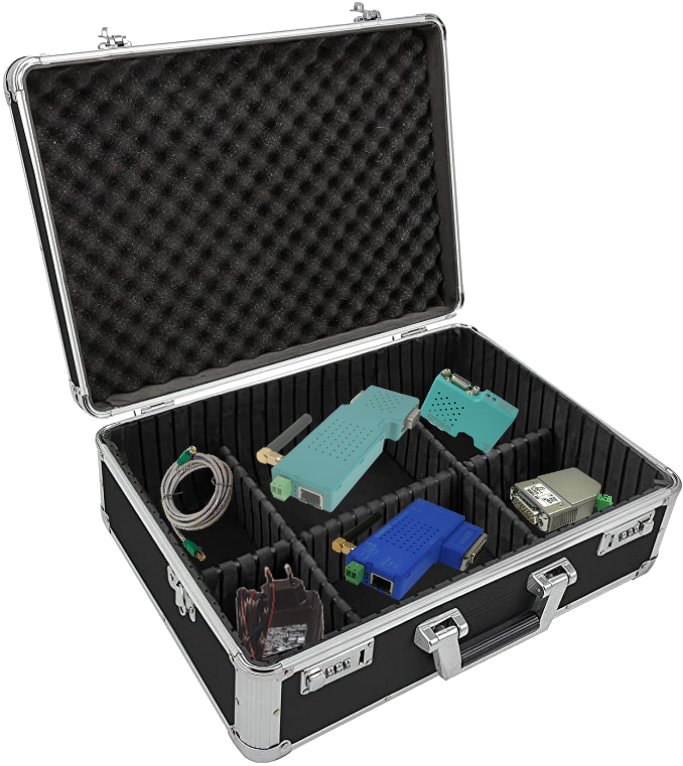

S5 over LAN

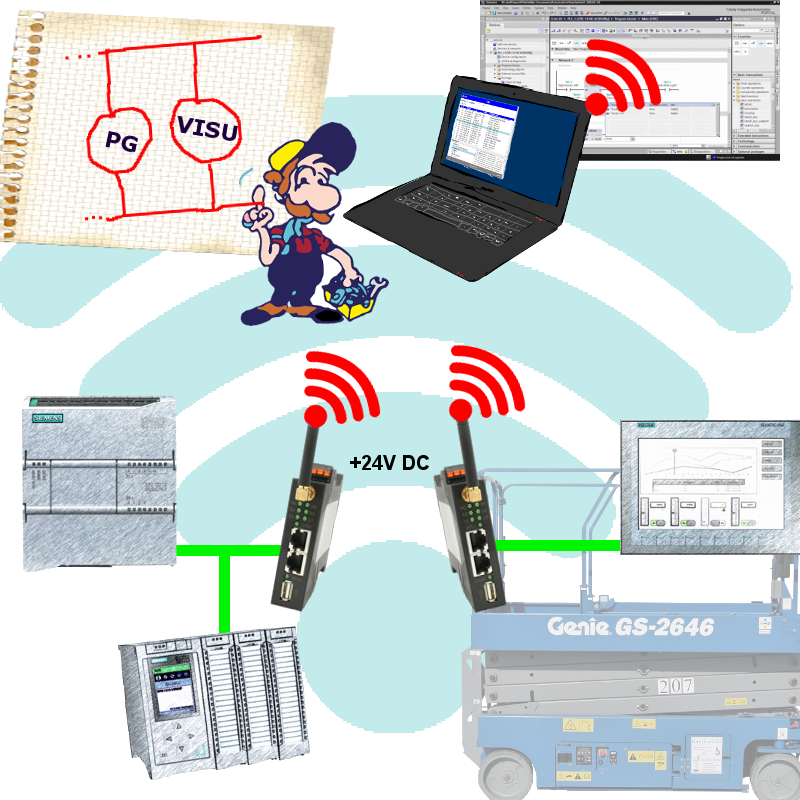

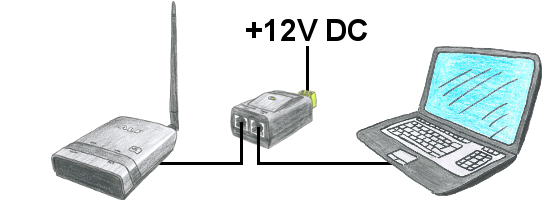

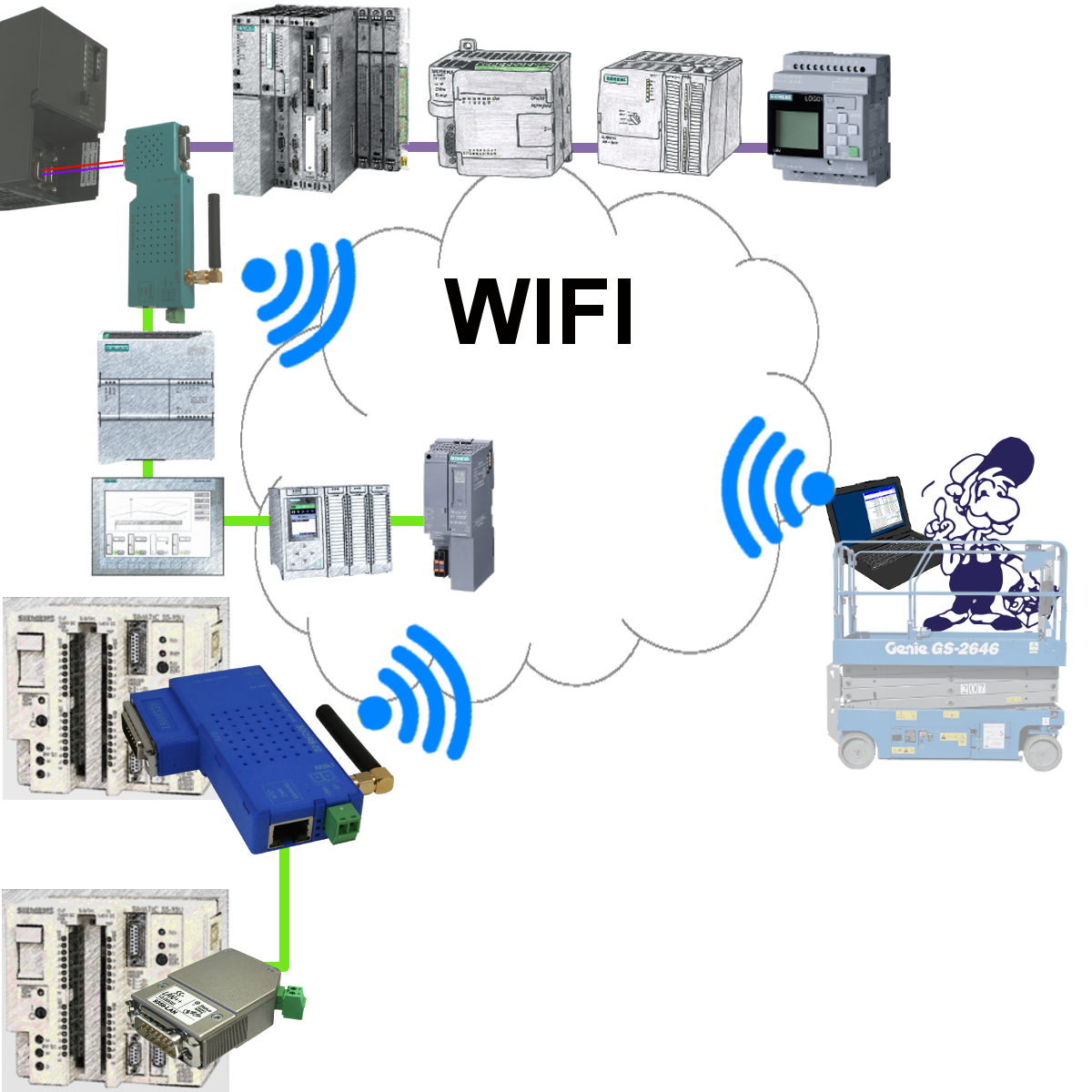

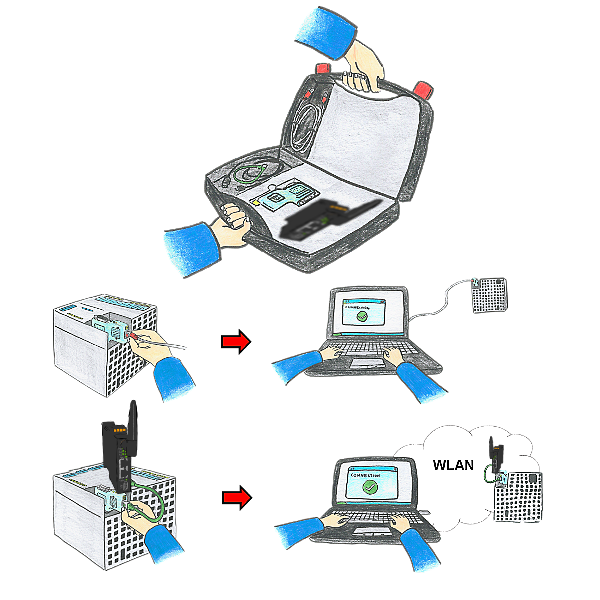

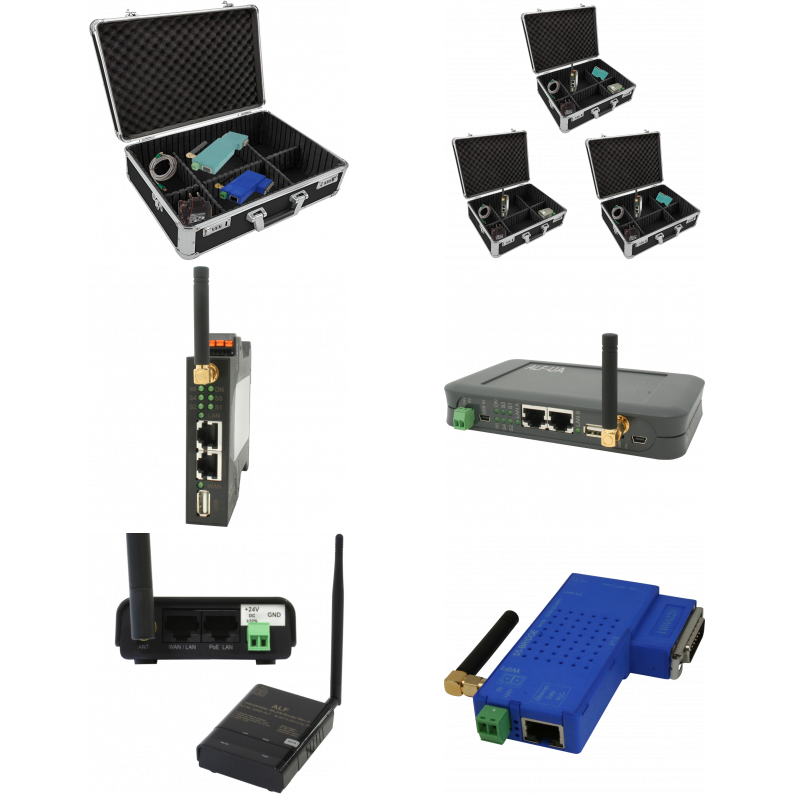

S5 over WLAN/WIFI

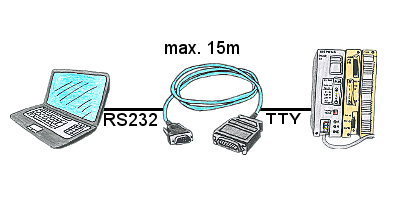

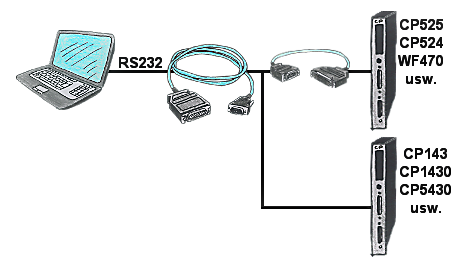

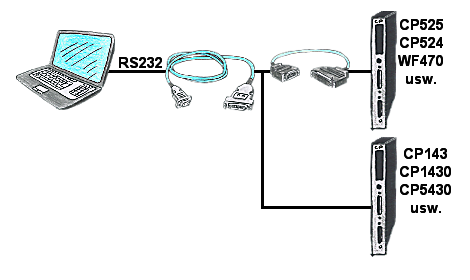

S5 over RS232

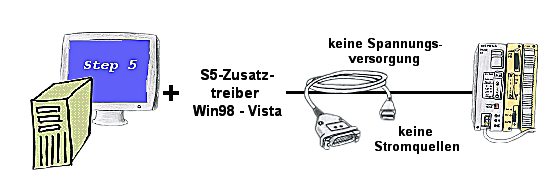

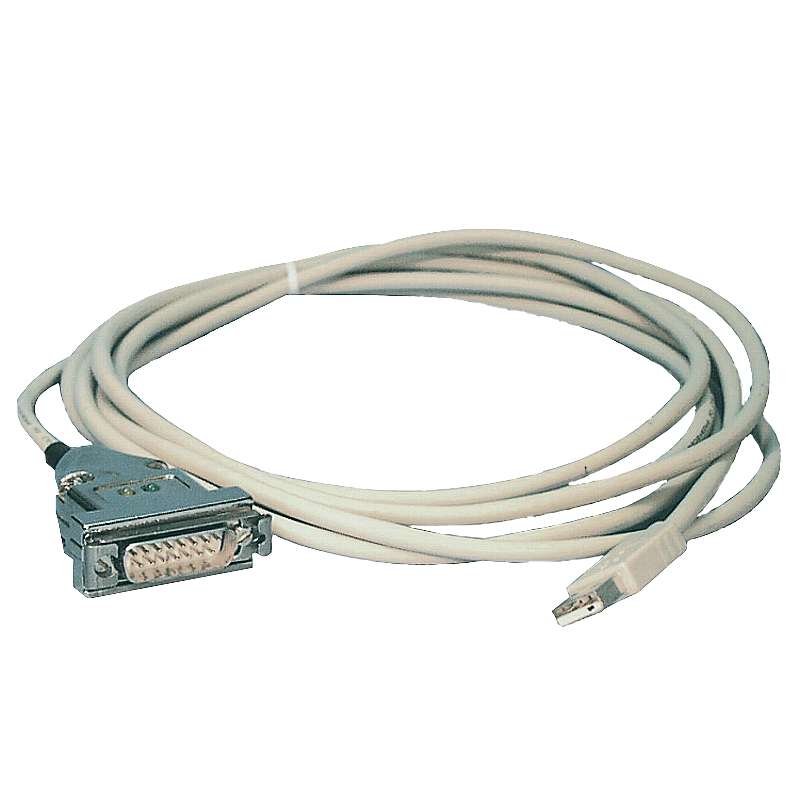

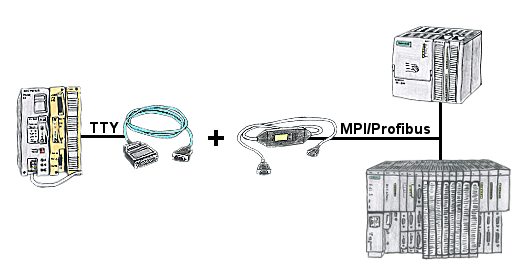

S5 over USB

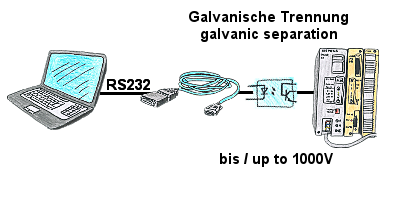

S5-PLC communication via USB-port

Multifunctional, several functions in one product
Well-priced alternative to high-priced original products
Easy handling and therefore quick operation

Benefits of using interface-products:

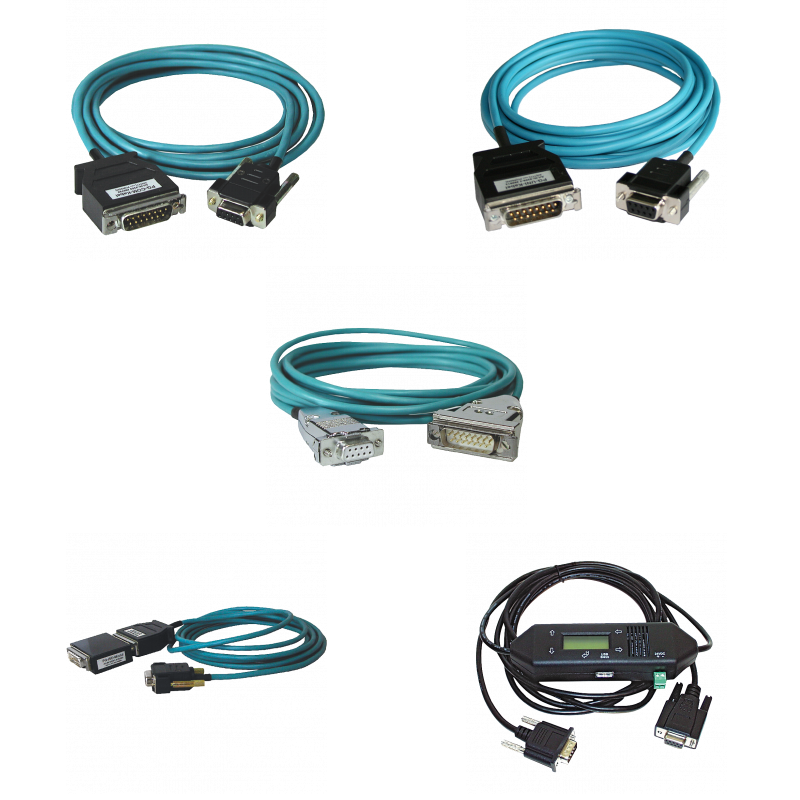

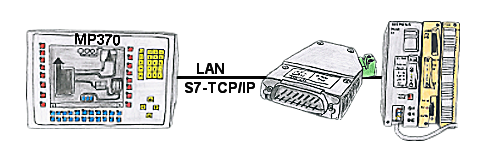

Extensive cable and adapter program
in our stock will have an extensive cable and adapter program available, even for special connections we have a solution for you

more...

Multifunctional, several functions in one product
Well-priced alternative to high-priced original products
Easy handling and therefore quick operation

Benefits of using interface-products:

Extensive cable and adapter program
in our stock will have an extensive cable and adapter program available, even for special connections we have a solution for you
Easy to use
for most of the couplings an external power supply is not required
Service-friendly
our free technical hotline is available with help and advice
Reliability
each cable is manufactured to quality standards in germany and tested
Performance guarantee
each cable is tested using a special cable-test on all connections and online function to a PLC
CE and EMC safety
all cables are tested to the applicable guidelines

application table:

	PG-UNI / PG-UNI-II	S5-LAN++	S5-BRIDGE	PG-USB	PG-COM	PG-ISO-SET
device type
S5-90U	x	+ext. 24V	+ext. 24V	x	x	x
S5-95U	x	+ext. 24V	+ext. 24V	x	x	x
S5-100U	x	+ext. 24V(3)	+ext. 24V	x	x	x
S5-115U	at 944 + 9359-8	at 944 + 9359-8 + ext. 24V (4)	x	x	x	x
S5-135U	at 928B + 9359-8	at 928B + 9359-8 +ext. 24V (6)	x	x	x	x
S5-155U	x	x	x	x	x	x
S5-AG110S	+9359-5-150 + 9359-4	+9359-5-150 + 9359-4 + ext. 24V (3)	+9359-5-150 + ext. 24V	+9359-5-150-USB		+9359-5-150 + 9359-4(1)
S5-AG130W/B	+9359-5-150 + 9359-4	+9359-5-150 + 9359-4 + ext. 24V (3)	+9359-5-150 + ext. 24V	+9359-5-150-USB		+9359-5-150 + 9359-4(1)
S5-AG150A/K/S/U	+9359-5-150 + 9359-4	+9359-5-150 + 9359-4 + ext. 24V (3)	+9359-5-150 + ext. 24V	+9359-5-150-USB		+9359-5-150 + 9359-4(1)
CP-143	x			x		x
CP-521	+CP521 adapter					+CP521 adapter(1)
CP-523	+CP523 adapter					+CP523 adapter(1)
CP-525	+9359-5			+9359-5-USB		+9359-5(1)
CP-526	x			x		x
CP-527	x			x		x
CP-528	x			x		x
CP-544	x (7)			x (7)		x (7)
CP-5430	x			x		x
CP-5431	x
IP-246	x			x		x
IP-247	x			x		x
IP-252	x			x		x
IP-266	+9359-4			x		+9359-4(1)
WF-470	+9359-4 + 9359-5-WF470			+9359-5-WF470-USB		+9359-5-WF470 + 9359-4(1)
SIN-805	+9359-6	+9359-6 + ext. 24V(5)	+9359-6 + ext. 24V(8)	+9359-6-USB		+9359-6(1)
SIN-820	+9359-6	+9359-6 + ext. 24V(5)	+9359-6 + ext. 24V(8)	+9359-6-USB		+9359-6(1)
SIN-840	+9359-6	+9359-6 + ext. 24V(5)	+9359-6 + ext. 24V(8)	+9359-6-USB		+9359-6(1)
SIN-850	+9359-6	+9359-6 + ext. 24V(5)	+9359-6 + ext. 24V(8)	+9359-6-USB		+9359-6(1)
SIN-880	+9359-6	+9359-6 + ext. 24V(5)	+9359-6 + ext. 24V(8)	+9359-6-USB		+9359-6(1)
Connection on PC	RS232-port	Ethernet RJ45	Ethernet RJ45 / WLAN/WIFI	USB-port type A	RS232-port	RS232-port
max. prolongation:	300m (UNI-extension)	300m (S5-LAN-extension) +ext. 24V	100m (PG-USB-extension)		300m (UNI-extension)
(1) ISO adapter can not be used because the required supply voltage on the PG interface of the module is not present. (2) At the CPU 6ES5 102-8MA02 Release 3 is a PG-ISO-Adapter or Netz-Adapter additional required. (3) With S5-LAN++ from HW V2.3 [2010] the "Netz-Adapter" is no more needed, this version has included current-sources. (4) With S5-LAN++ from HW V2.3 [2010] no accessories are needed, this version has included current-sources. (5) With S5-LAN++ from HW V2.3 [2010] the Sinum-Adapter 9359-6-USB is needed. (6) Only for CPU928B with PG-ISO-Adapter and ext. 24V DC, unless there is an S5-LAN++ from HW V2.3 [2010] used. (7) CP544 has bolts at the programming-interface. The products do not fit 100% on this interface. (8) With S5-BRIDGE the Sinum-Adapter 9359-6-USB is needed.
