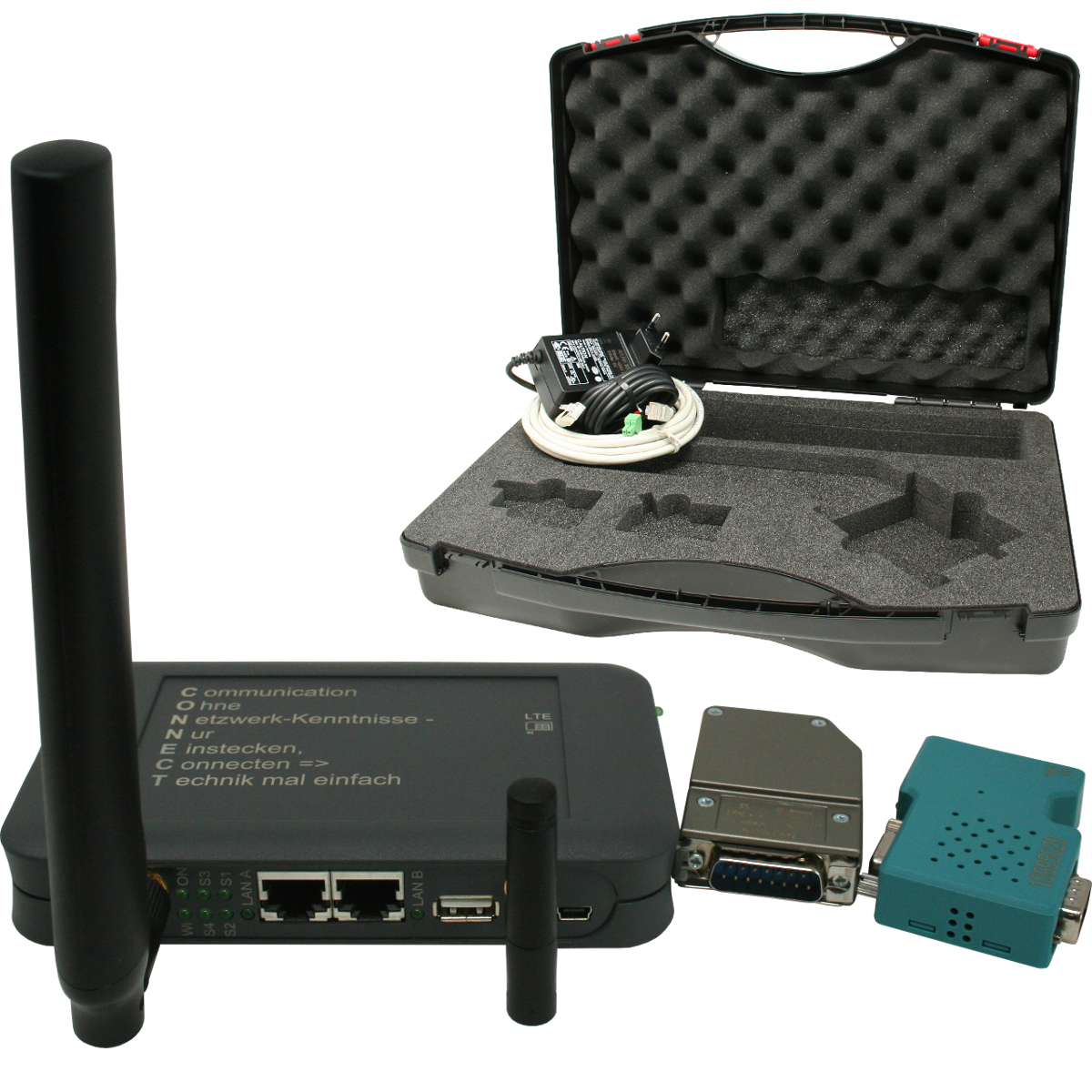

CONNECT-LTE-HS-Remote-Access
9354-CONNECT-LTE-HS-REMOTE

CONNECT-LTE-Remote-Access
9354-CONNECT-LTE-REMOTE
With ACBT through firewall +++ No on-site PC necessary +++ Internet without IT-knowledge

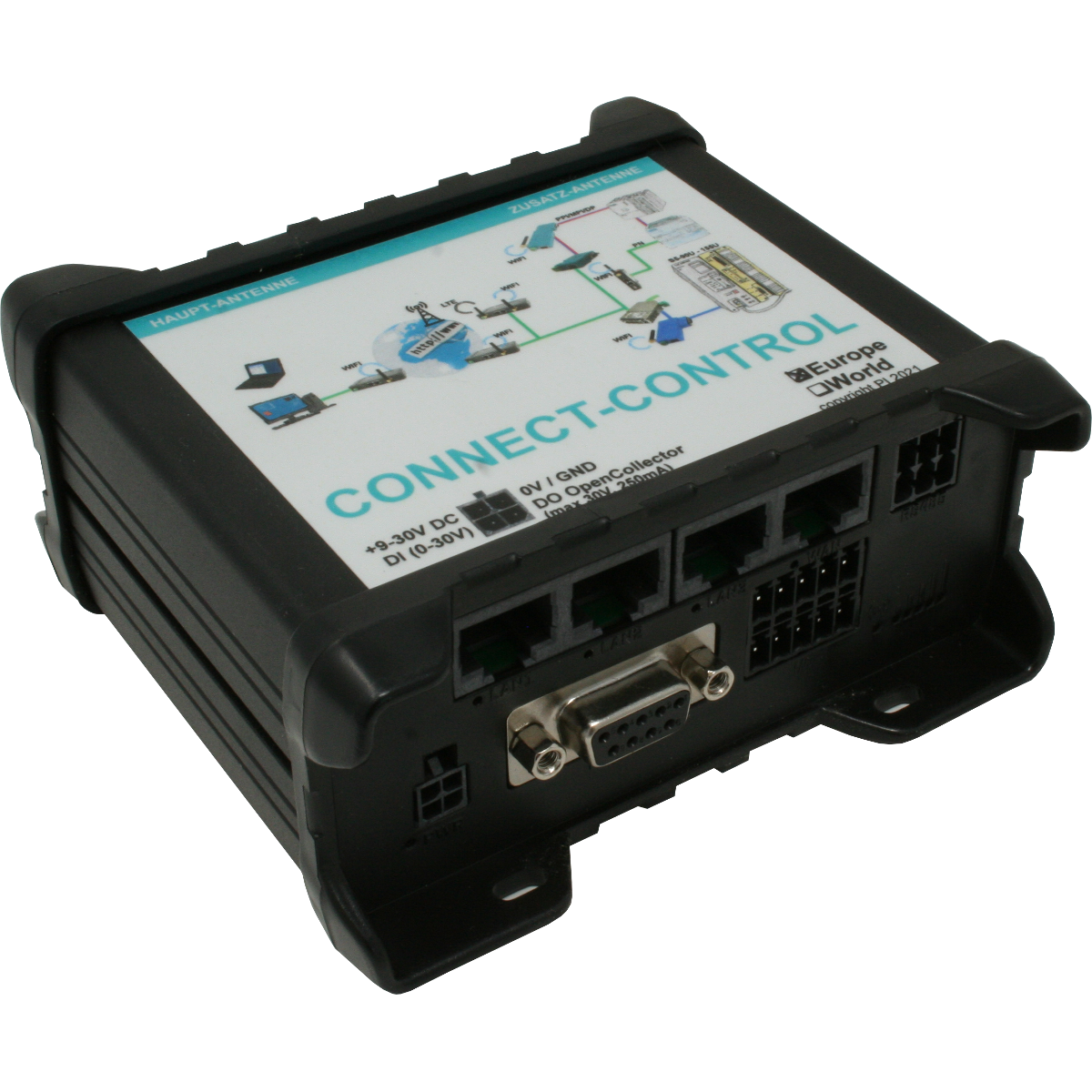

CONNECT-CONTROL with worldwide LTE
9354-CONNECT-CON-WORLD
With ACBT through firewall +++ No on-site PC necessary +++ Internet without IT-knowledge

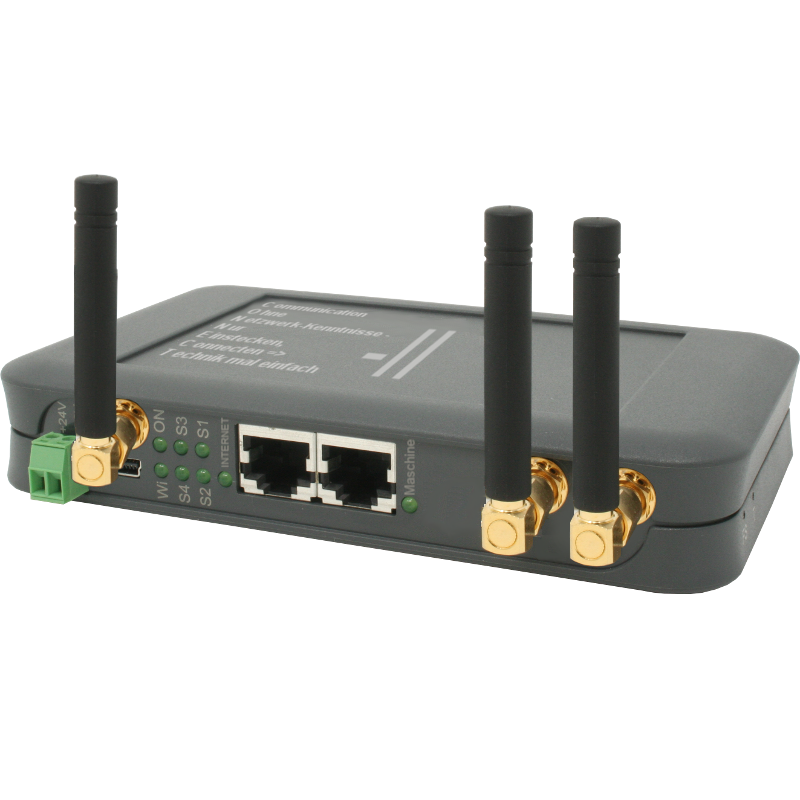

CONNECT-II-LTE-Remote-Access
9354-CONNECT-II-LTE-REMOTE
With ACBT through firewall +++ No on-site PC necessary +++ Internet without IT-knowledge

CONNECT-CONTROL with europe-wide LTE
9354-CONNECT-CON-EUROPE
With ACBT through firewall +++ No PC on site required +++ Without IT-knowledge to Internet +++ Independent of OS +++ Remotemaintenance without portals +++ Remote-control made easy

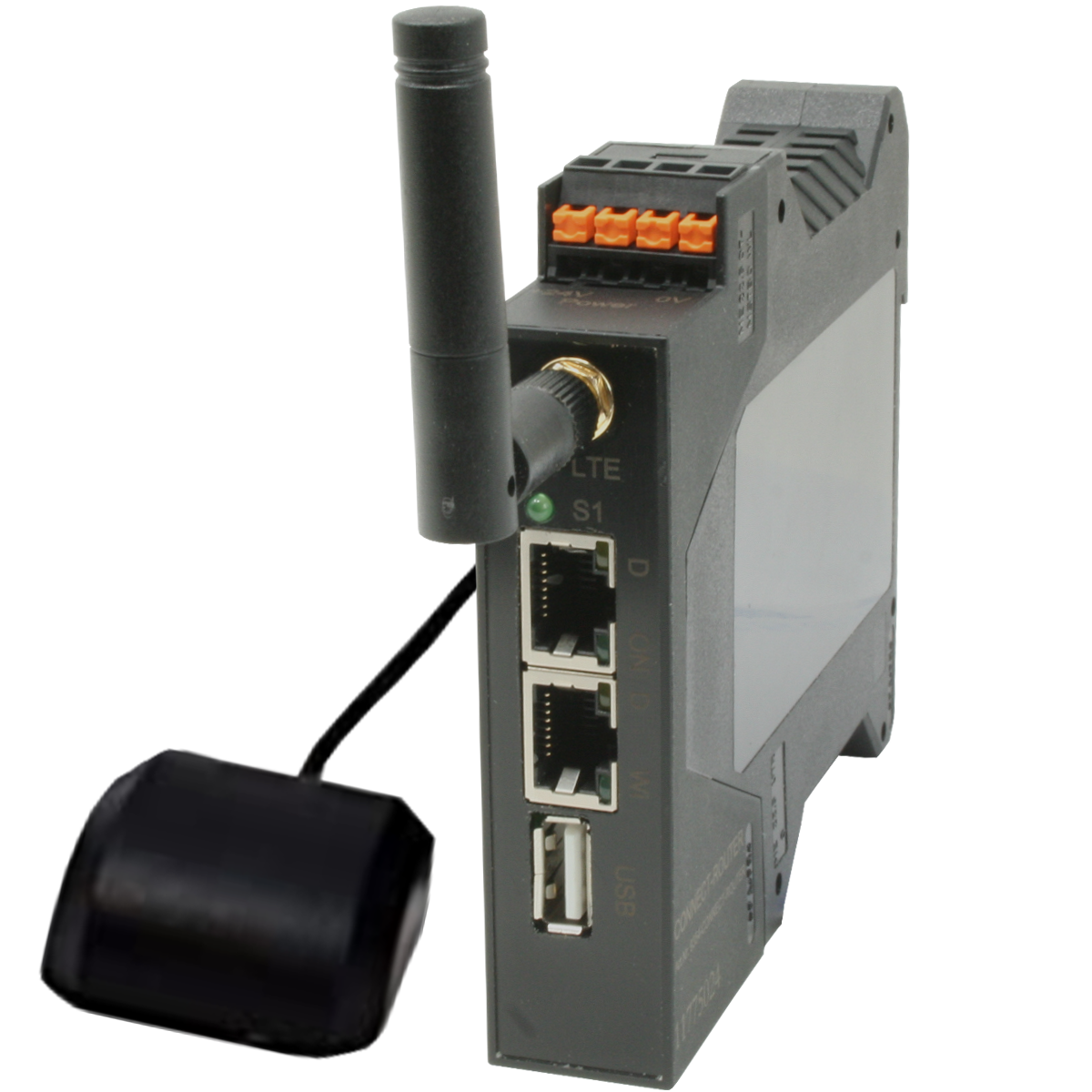

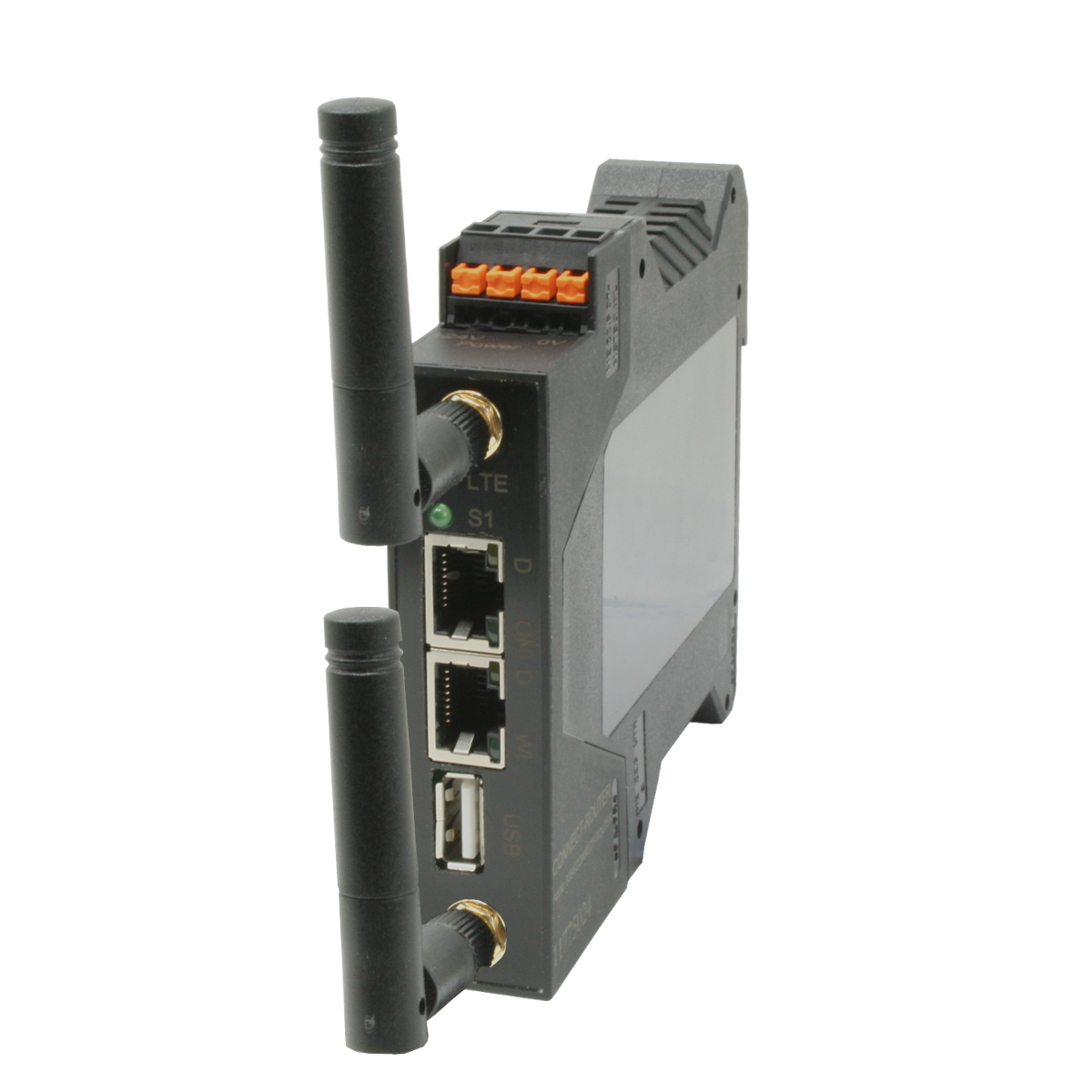

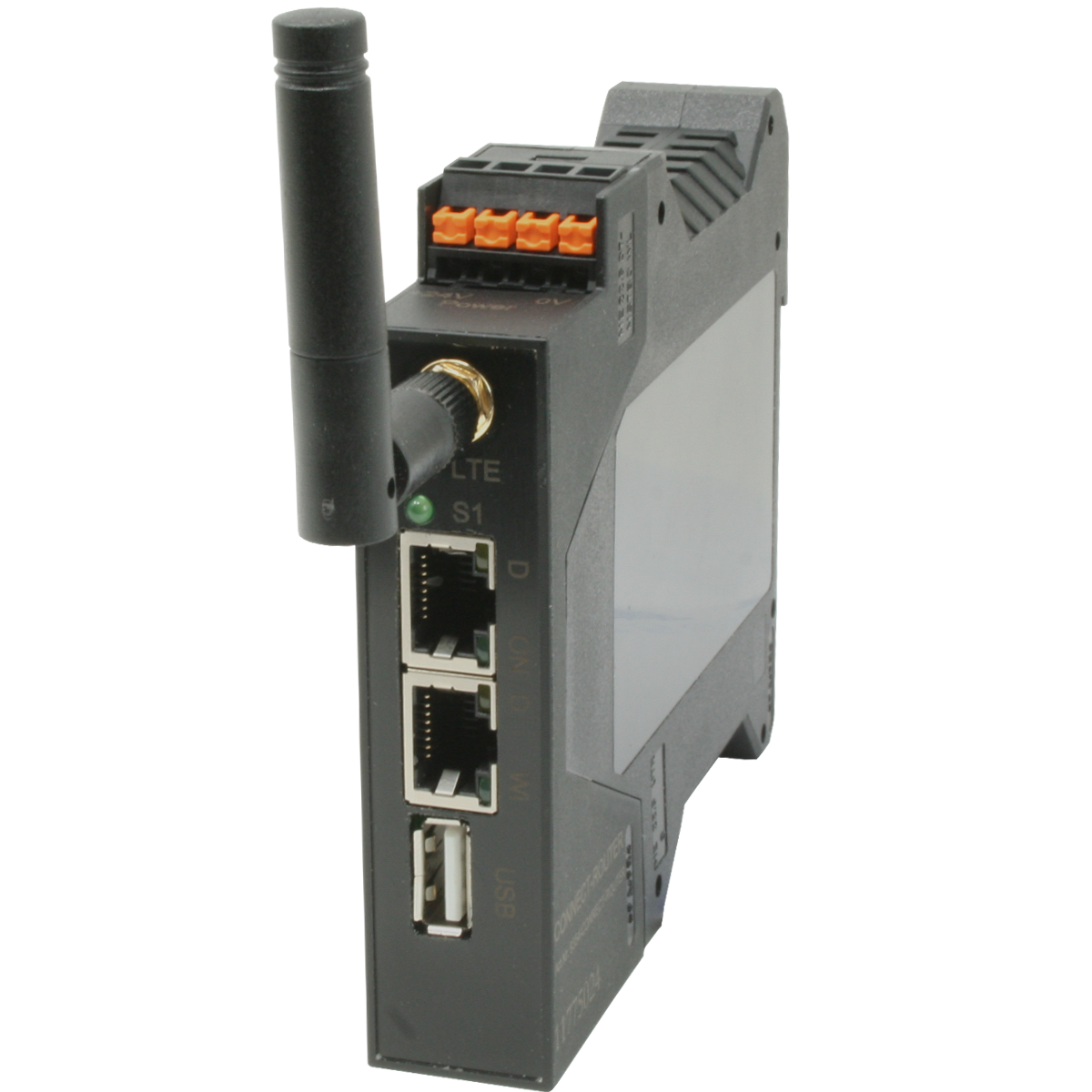

CONNECT-Router for Din-Rail-mounting
Article Number: 9354-CONNECT-HS-ROUTER
Industrial WIFI-Router
Integrated USB-port
expandable by software-options
One-click mounting

CONNECT-IP-Switch Din-Rail-mounting
Article Number: 9354-CONNECT-HS-IP-SWITCH
Sets IP addresses from the machine network
to the company network
One-click mounting
Consists of:
- 9354-CONNECT-HS
- 9354-O-IP-SWITCH

CONNECT protocol converter Din-Rail-mounting
Article Number: 9354-CONNECT-HS-PU
Conversion S7-TCPIP RFC1006 <=> H1 (ISO)
a separate IP address for each H1 (ISO) device
machine network decoupled
one-click mounting

CONNECT-Remote-Access DIN-Rail-mounting
9354-CONNECT-HS-REMOTE
With ACBT through firewall +++ No on-site PC necessary +++ Internet without IT-knowledge

CONNECT-IP-Switch table device
Article Number: 9354-CONNECT-IP-SWITCH
Sets IP addresses from the machine network
to the company network
table device
Consists of:
- 9354-CONNECT
- 9354-O-IP-SWITCH

CONNECT-Remote-Access
9354-CONNECT-REMOTE
With ACBT through firewall +++ No PC on site required +++ Without IT-knowledge to Internet +++ Independent of OS +++ Remotemaintenance wo. portals +++ Remote-control made easy

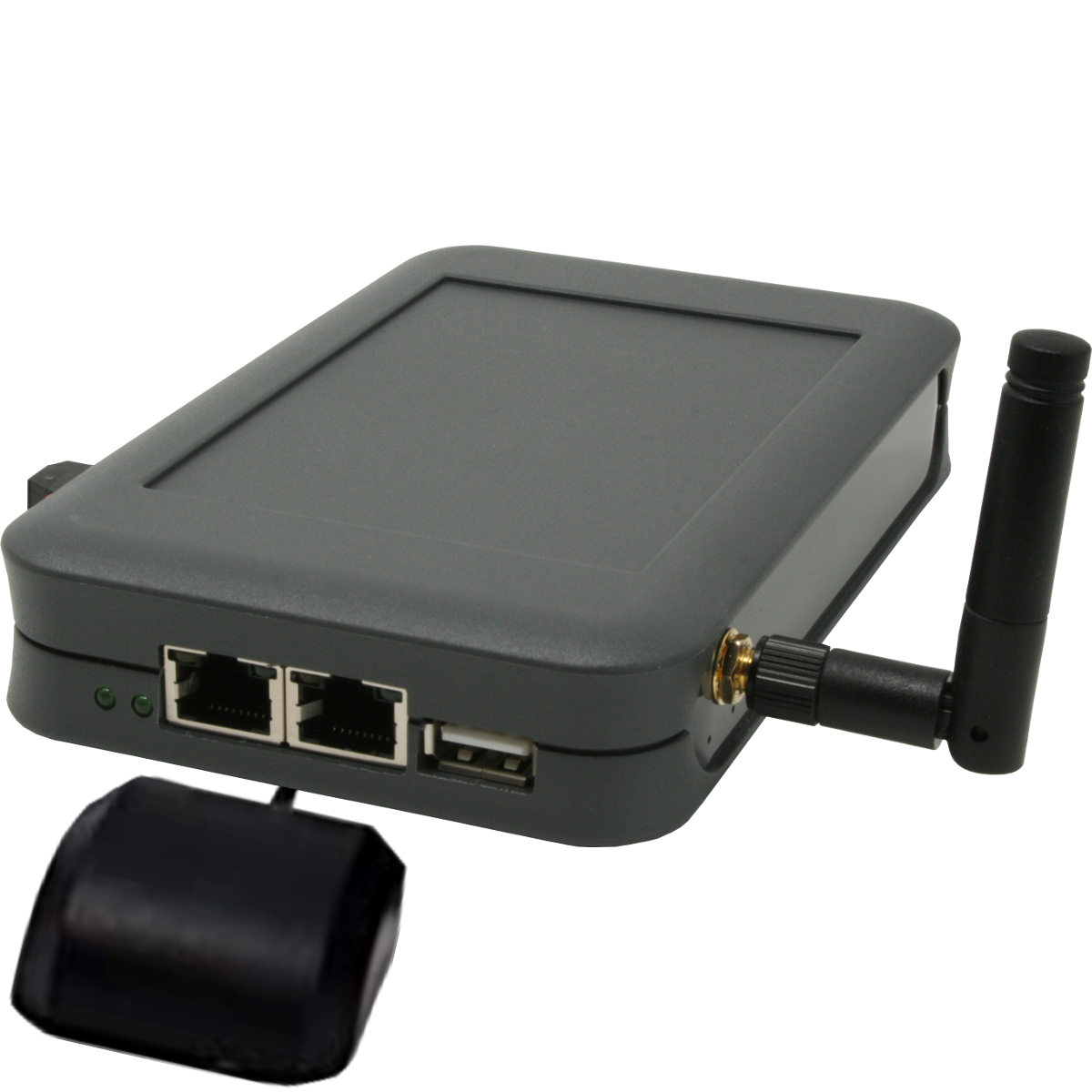

CONNECT-TimeServer table-device
Article Number: 9354-CONNECT-TSERVER
10 / 100 MBit / WIFI
GPS-time for S5-/S7-PLC + NTP-server
Power-supply with 24V DC
Table-device

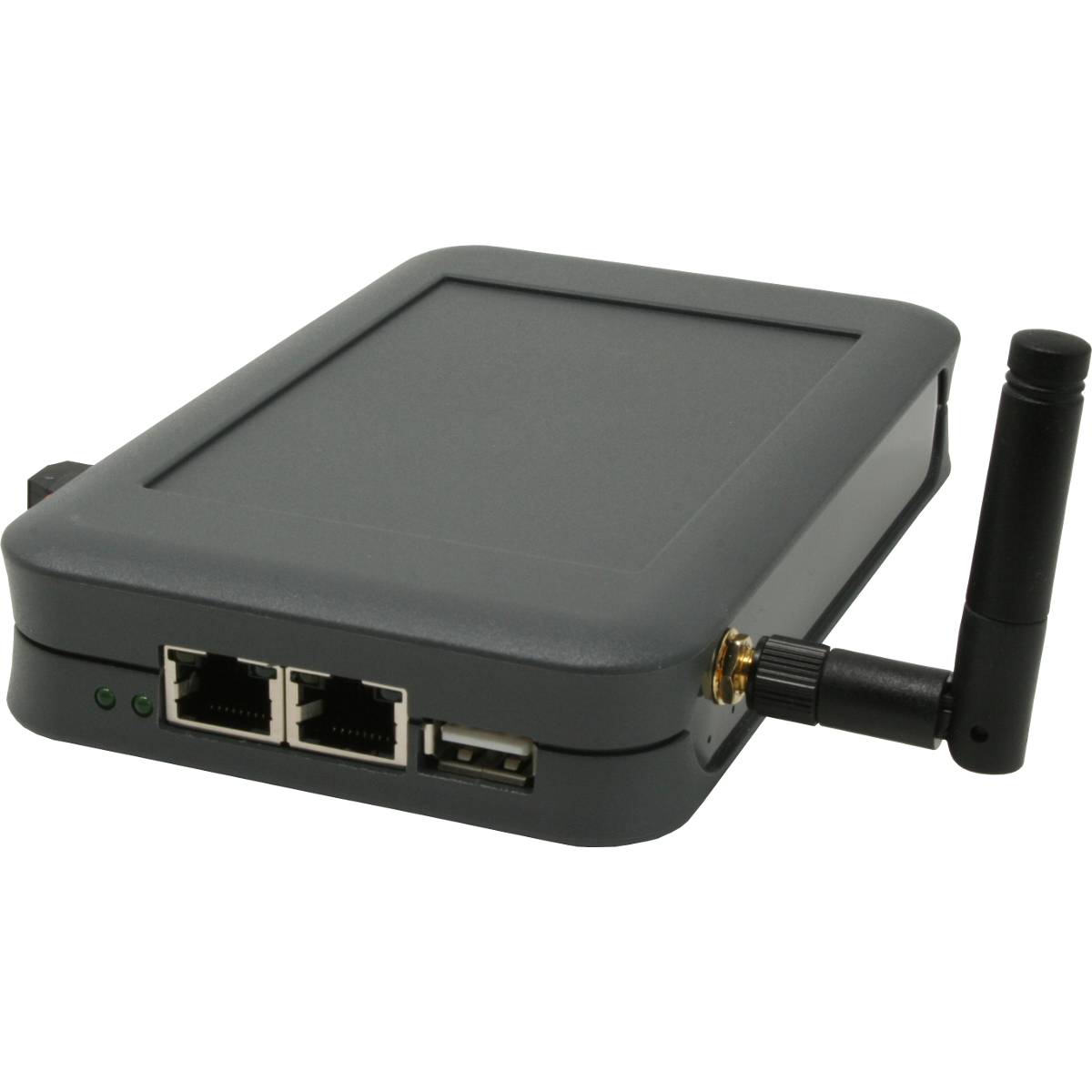

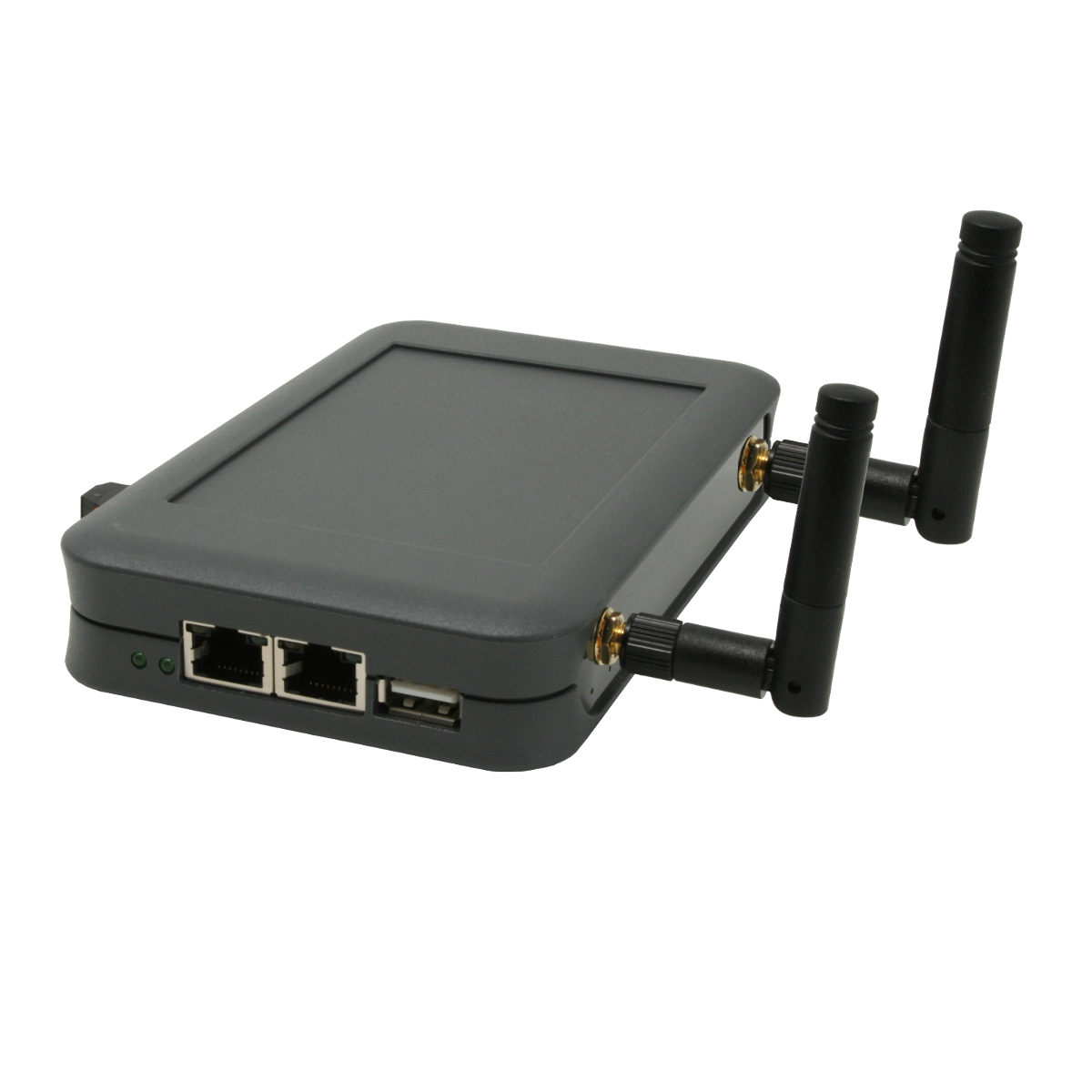

CONNECT-Router table-device
Article Number: 9354-CONNECT-ROUTER
Industrial WIFI-Router
Integrated USB-port
expandable by software-options
table-device

CONNECT-TimeServer DIN-Rail-mounting
Article Number: 9354-CONNECT-HS-TSERVER
10 / 100 MBit / WIFI
GPS-time for S5-/S7-PLC + NTP-server
Power-supply with 24V DC
For DIN-rail-mounting

CONNECT-II-Remote-Access
9354-CONNECT-II-REMOTE
With ACBT through firewall +++ No on-site PC necessary +++ Internet without IT-knowledge

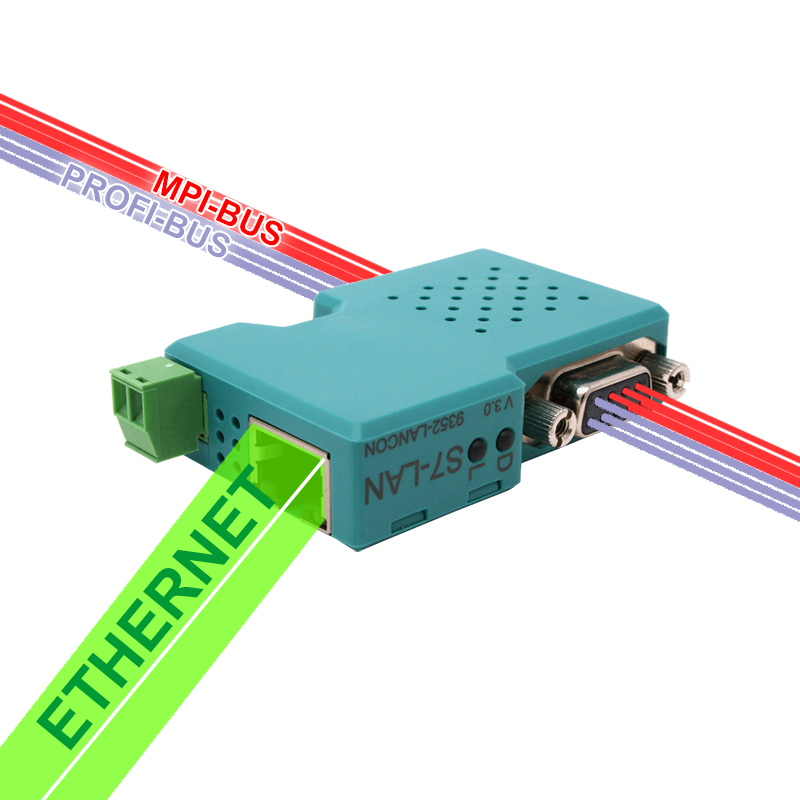

S7-LAN connector for Siemens S7 PLC controller
9352-LANCON
Network-connection for the S7-200/300/400-PLC +++ S7-adapter PPI/MPI/PROFIBUS +++ Of developer and manufacturer +++ Smallest Ethernet-gateway S7 +++ Network for each S7-PLC +++ Fast commissioning +++ Replacement for CP343-1/443-1

Power connector 2pins small
Article Number: 9352-24
cable coupling by screw-connector (small)

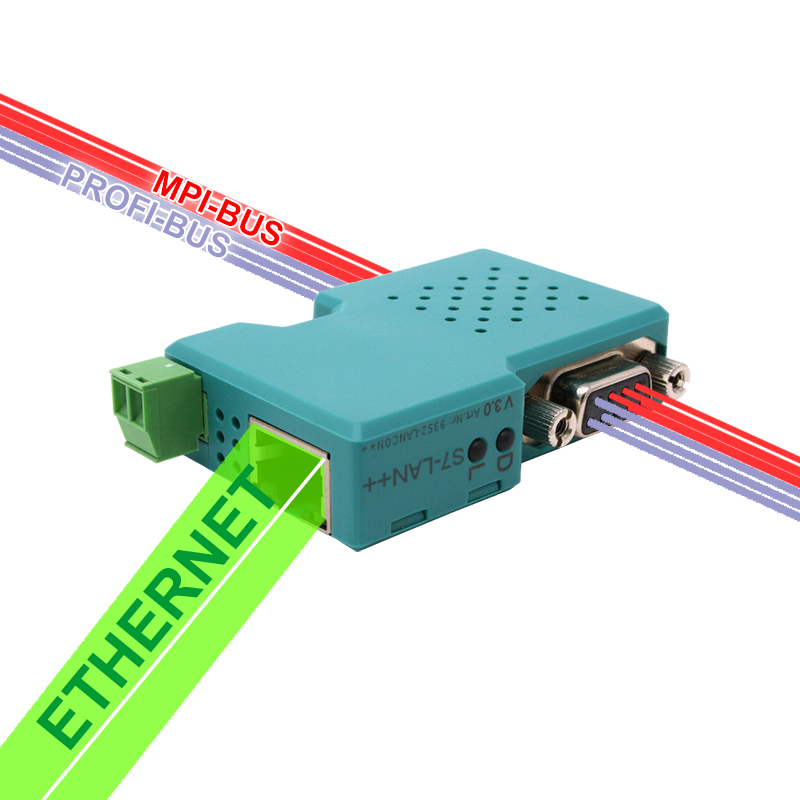

S7-LAN++ connector for Siemens S7 Controller
9352-LANCON++
Smallest S7-PLC-Firewall +++ Controls access to the PPI/MPI/PROFIBUS +++ Of developer and manufacturer

SOFTWARE-CONNECT
Article Number: 9354-SW-CONNECT
PC-software-tool
replaces CONNECT device
Number of licenses corresponds to number of
simultaneous connections
windows (any)

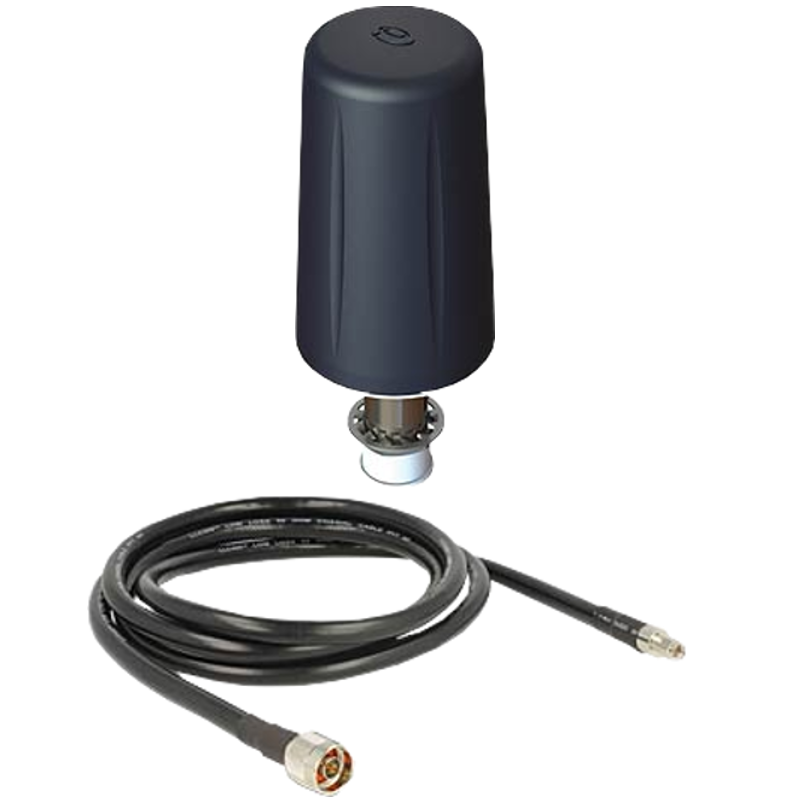

Stationary LTE-antenna for fixed mounting
Article Number: 9230-LTE-ANTW
for EtherSens/CONNECT-devices LTE-modem
for indoor and outdoor use
cable length: 2m

Option for CONNECT: Router
Article Number: 9354-O-ROUTER
WiFi router function with the operating modes:
Access-Point or Client

Option for CONNECT: IP-MULTI
Article Number: 9354-O-IP-MULTI
Multiple connections to different systems at the
same time
(parallel connections)
Is only required on the central-device

Option for CONNECT: IP-SWITCH
Article Number: 9354-O-IP-SWITCH
Automatic exchange of IP addresses for cross-
subnet network communication

Option for CONNECT: PLC-SMS/EMail
Article Number: 9354-O-MESSENGER
Option for devices of the CONNECT-family
PLC controlled sending of SMS messages (only
for LTE-variants) and emails or fixed texts

Option for CONNECT: Panel to S5
Article Number: 9354-O-PANS5
Unified-panel to S5-PLC with S5-LAN++

Option for CONNECT: TimeServer
Article Number: 9354-O-TSERVER
NTP-time server on S5-/S7-PLCs and PCs
For LTE-devices, time also from GPS-data

Configuration of a CONNECT-Device
Article Number: 9354-CONNECT-CONFIG
Parameterization of the following parameters:
- Connection of participant to which port
- IP-address of connected participants
- Free IP address for the device itself
- PIN-number of the SIM-card
- APN (provider) of the SIM card
- WLAN activated or deactivated
- Password protection of the configuration
- Automatic connection setup

Antenna extension GSM/LTE/WIFI
Article Number: 9379-AV
Base-price + cable length #9379-AV-L

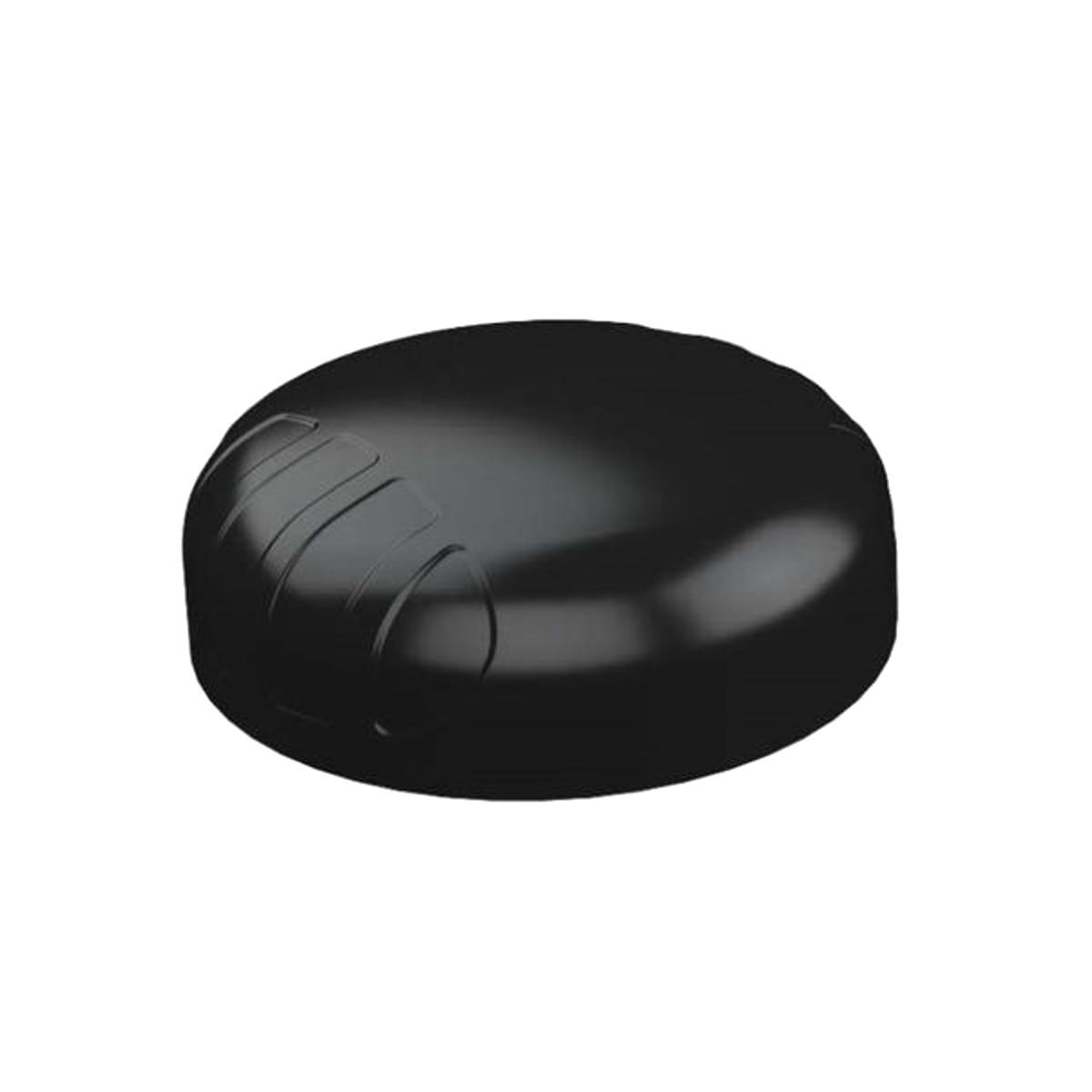

Universal-antenne 5in1
Article Number: 9354-CONNECT-CON-ANT
For 2x LTE, 2x WiFi, 1x GPS including adapter
Support multiple installation types
Cable length 2m

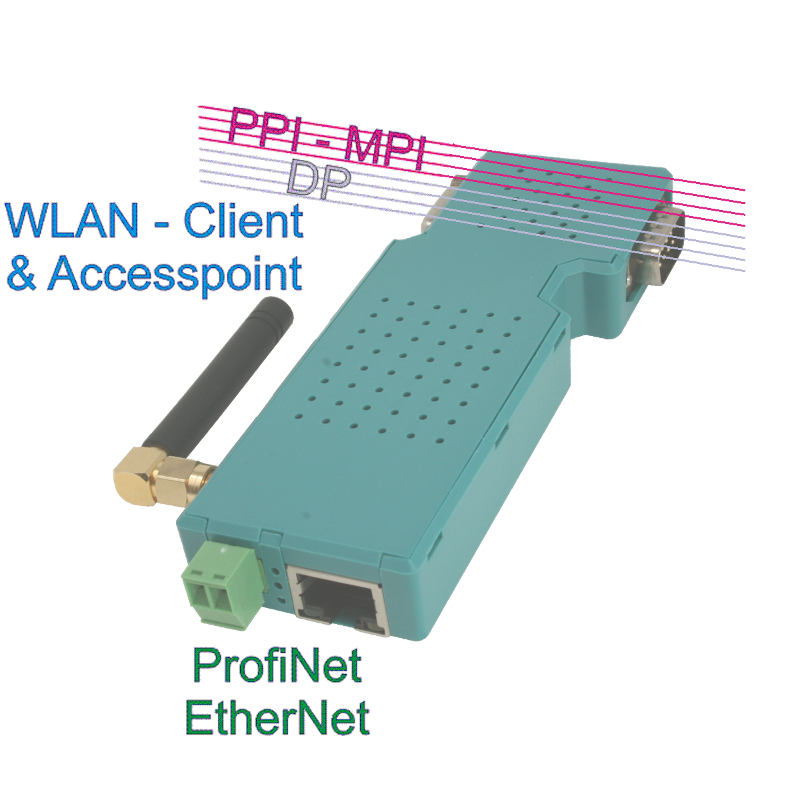

S7-BRIDGE
9352-S7-WIFI
Online with S7-PLC wo. cables +++ S7-adapter PPI/MPI/PROFIBUS/PN +++ No WIFI-infrastructure +++ Integrated access-point +++ PPI/MPI/DP/PN - LAN - WIFI

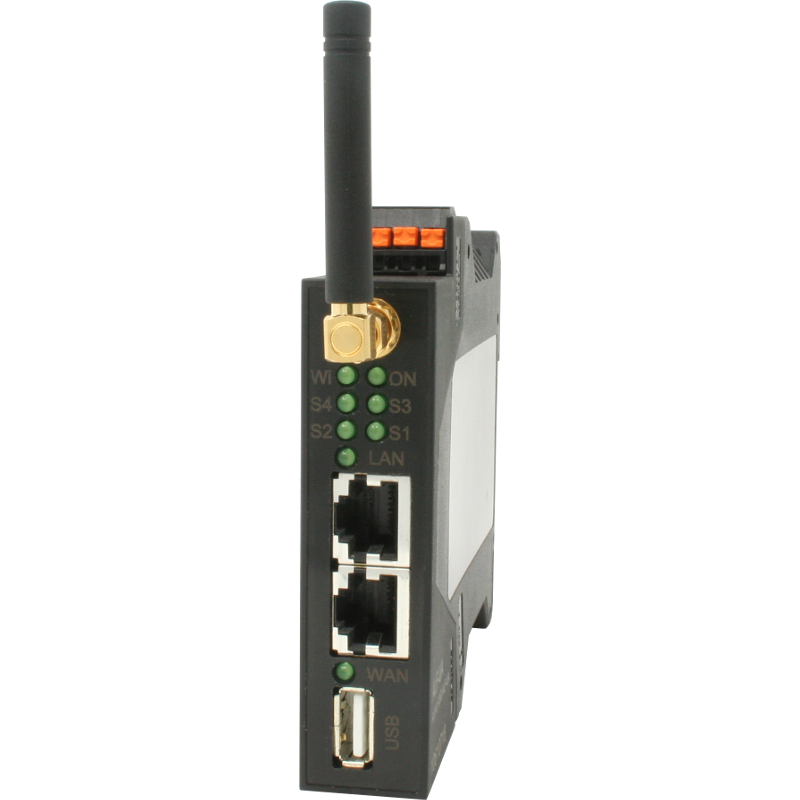

ALF-UA high-speed WIFI-Router for Din-Rail-mounting
Article Number: 9352-ALF-UA
Industrial WIFI-Router for Unified Access
Integrated USB-port
Basic-plattform, functionality with
software-options expandable
One-click mounting

Patch-cable 1m, Cat5e, shielded
Article Number: 9636-TCPIP.1M
RJ45 plug <=> RJ45 plug, 1:1

Additional charge for special length
Article Number: 9379-AV-L
for antenna extension
per meter 4,- Euro

Patch-cable 3m, Cat5+, shielded
Article Number: 9636-TCPIP
RJ45 plug <=> RJ45 plug, 1:1

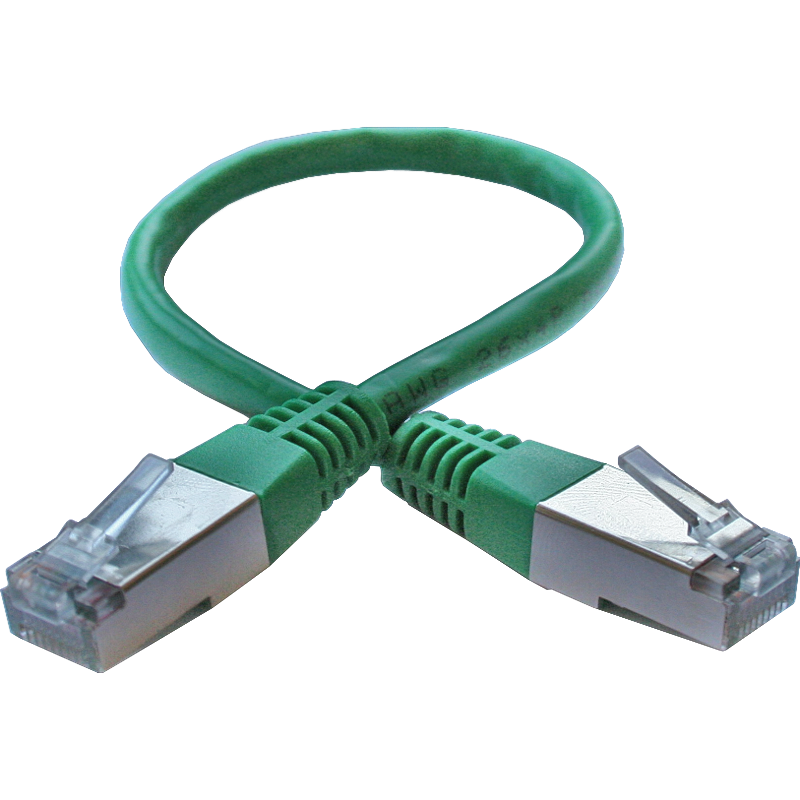

Patch-cable 0.25m, Cat5e, shielded
Article Number: 9636-TCPIP.02M
RJ45 plug <=> RJ45 plug, 1:1

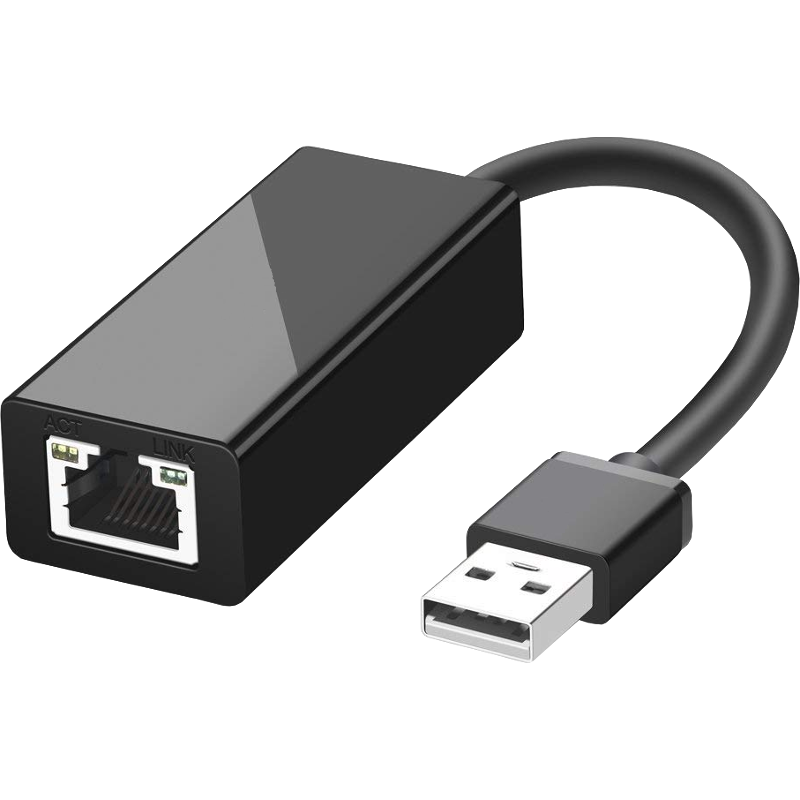

Ethernet over USB
Article Number: 9354-ETH-PORT
RJ45-port (LAN 10/100MBit) to USB type A

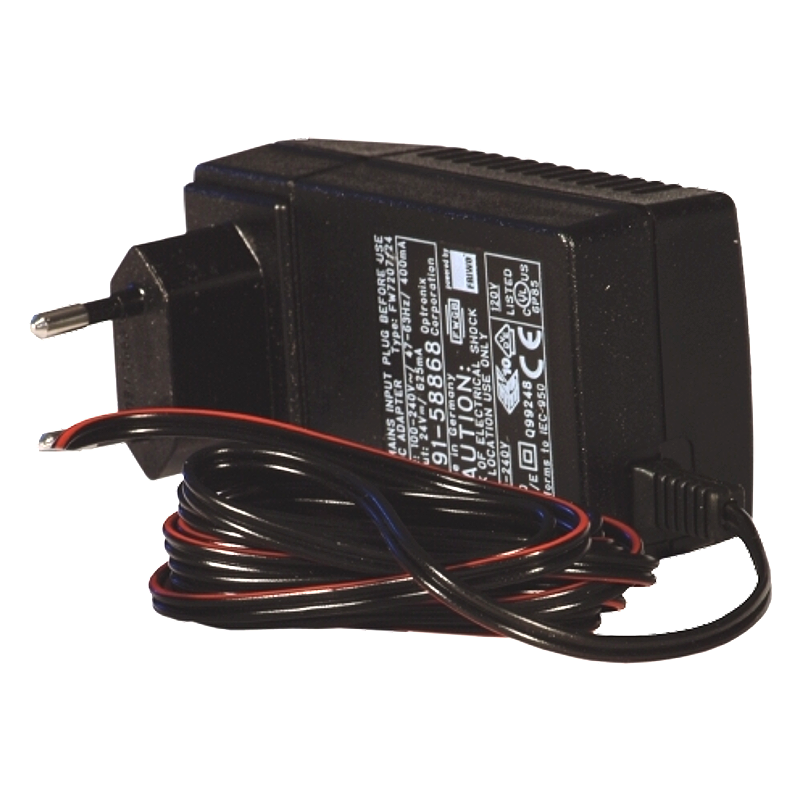

24V DC power-supply unit 625mA
Article Number: 9391.1
Primary 110V - 240 VAC Euro+USA-plug

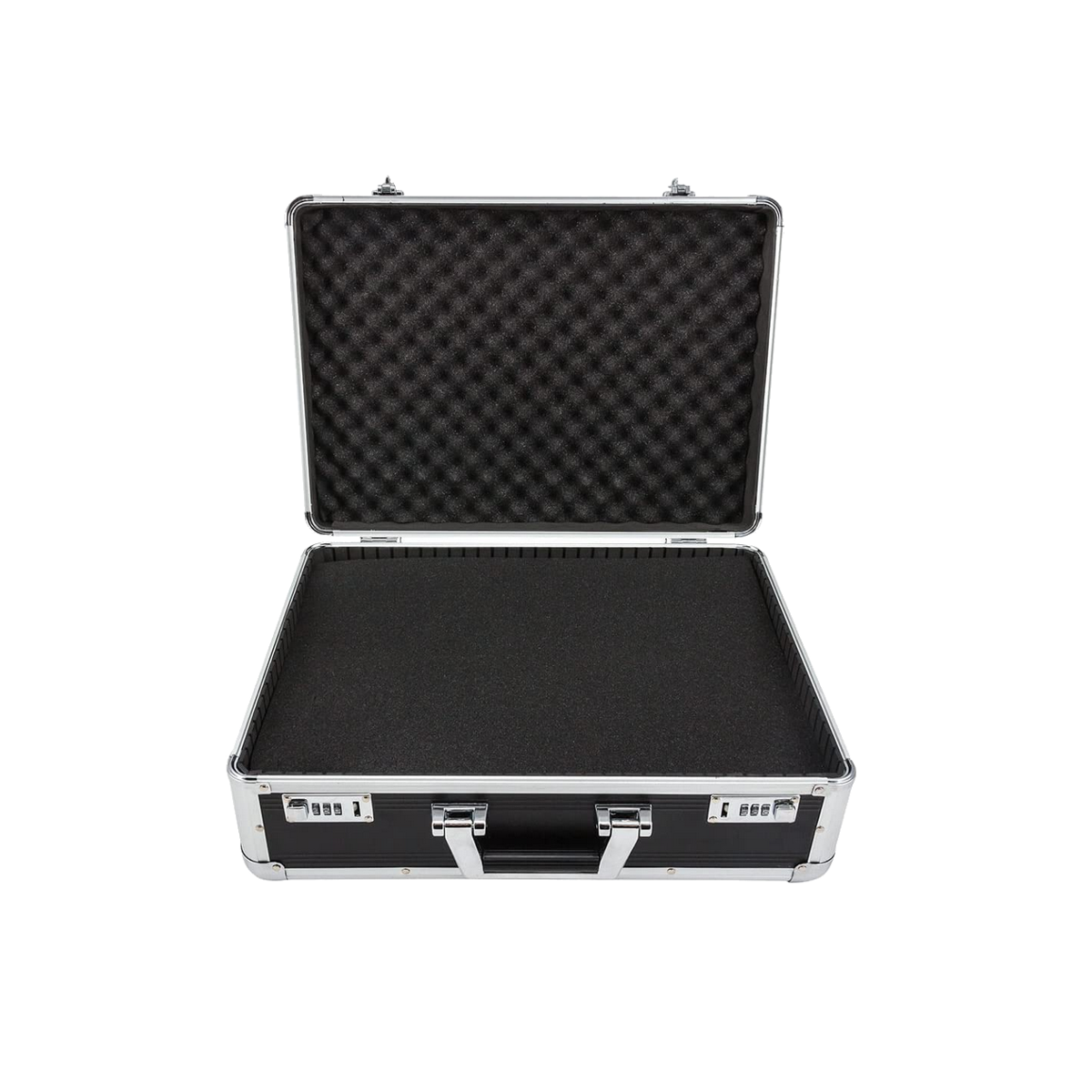

Transport-suitcase including deposits
Article Number: 9354-Koffer
With lock
Shockproof, can be without packaging be sent

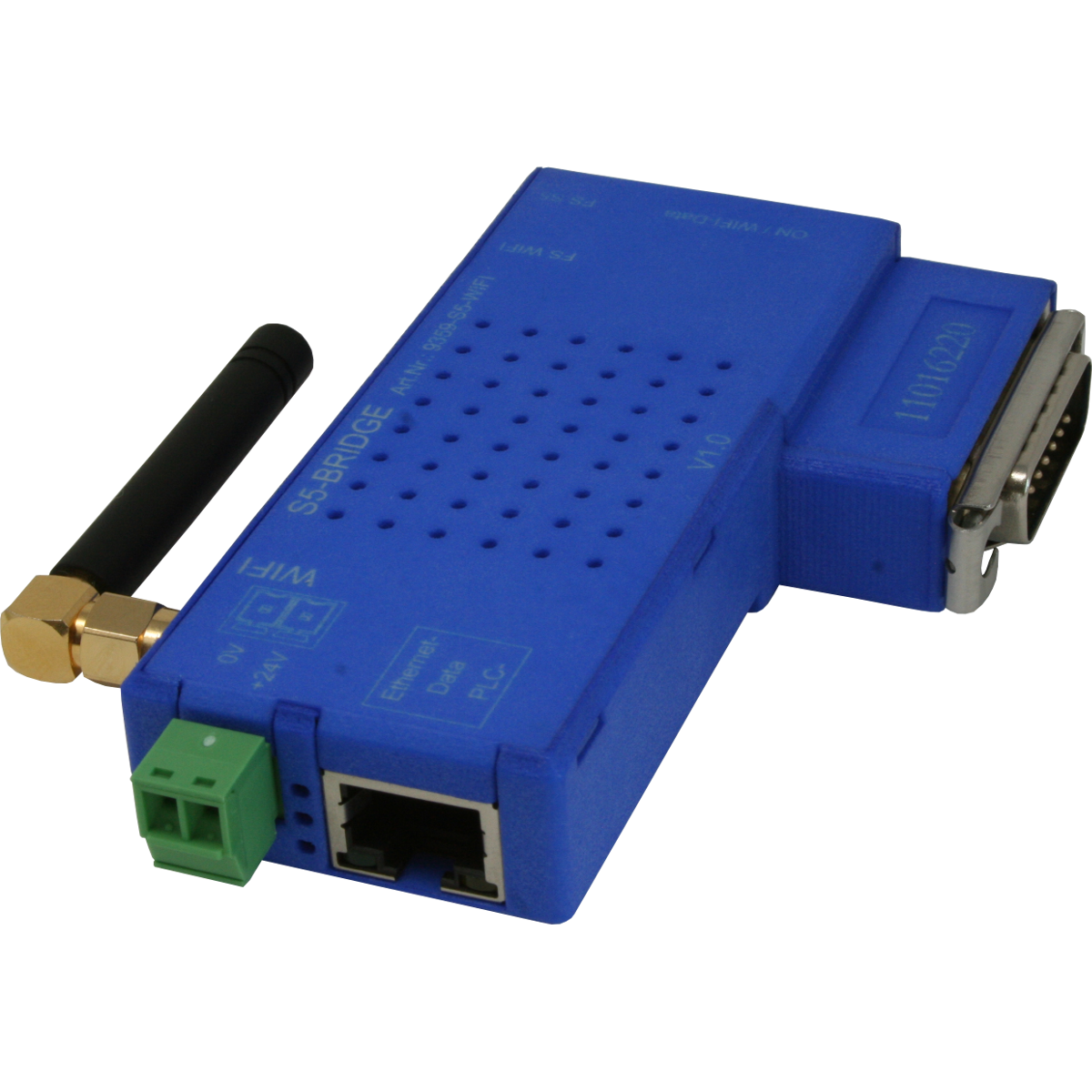

S5-BRIDGE
9359-S5-WIFI
ONLINE with S5PLC without cable +++ S5-adapter 90-155U/CPs/IPs +++ No WIFi-infrastructure +++ Integrated access-point +++ Configuration via WebAccess +++ S5 Bridge (TTY - LAN - WIFI)

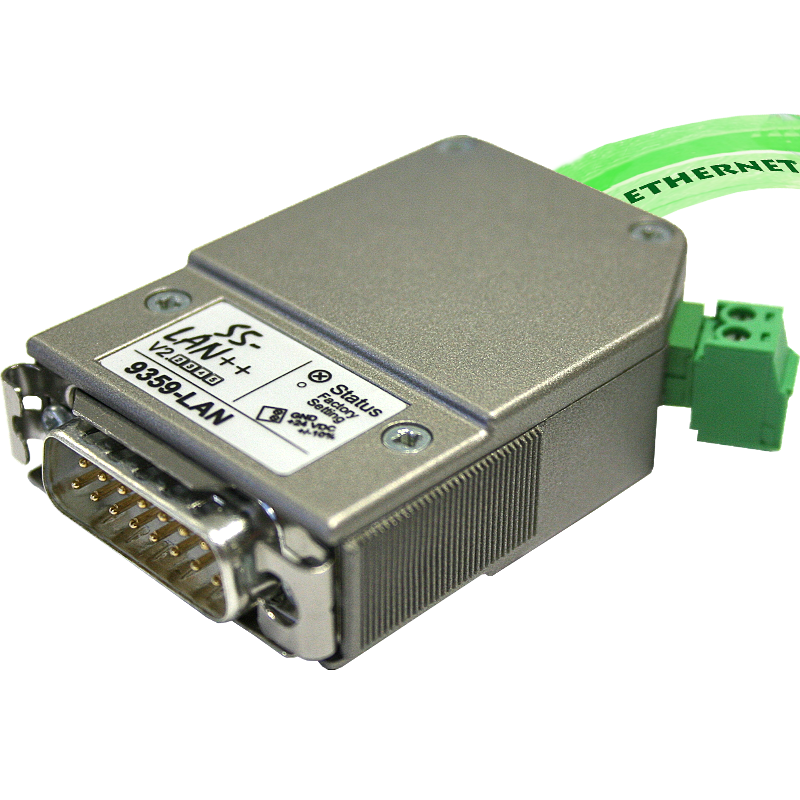

S5-LAN++
Article Number: 9359-LAN
Industrial Ethernet <> S5 PD-interface (TTY)
Including Gateway Plus and S7-TCP / IP
functions

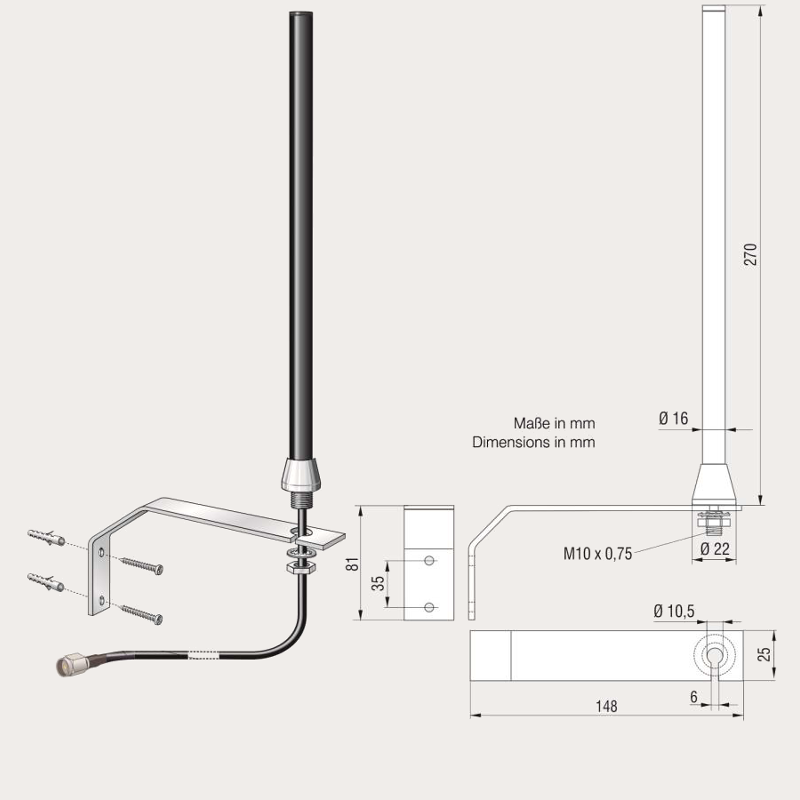

Stationary antenna for wall fastening
Article Number: 9352-ALF-ANT-WAND
For S5-/S7-BRIDGE, CONNECT
CONNECT-ROUTER
cable length: 2,5m
for indoor and outdoor use
incl. wall holder

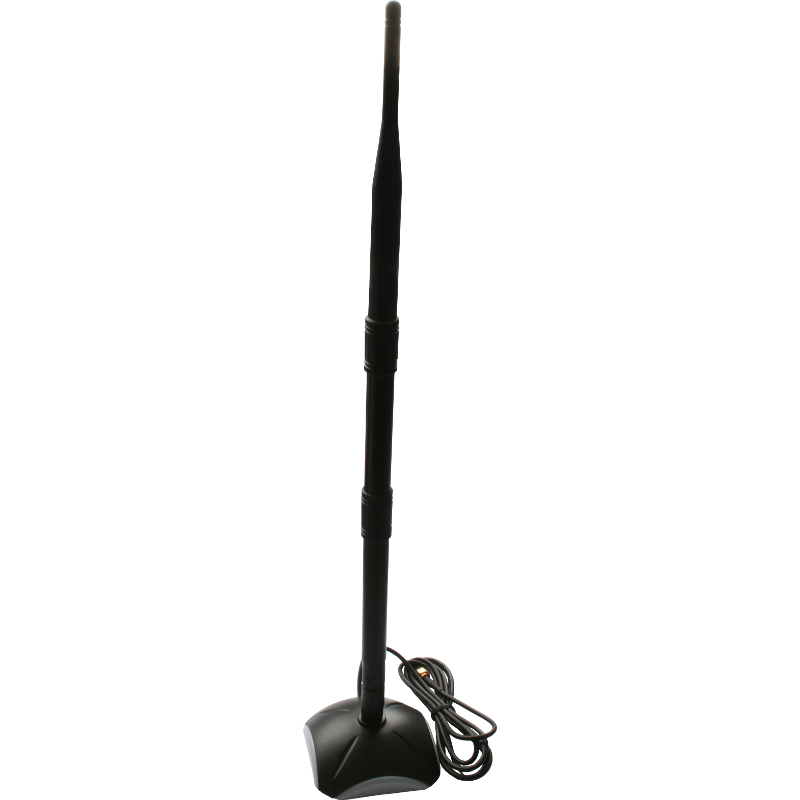

Magnetic base antenna for indoor use
Article Number: 9352-ALF-ANT
For S5-/S7-BRIDGE, CONNECT
CONNECT-ROUTER
cable length: 1,5m

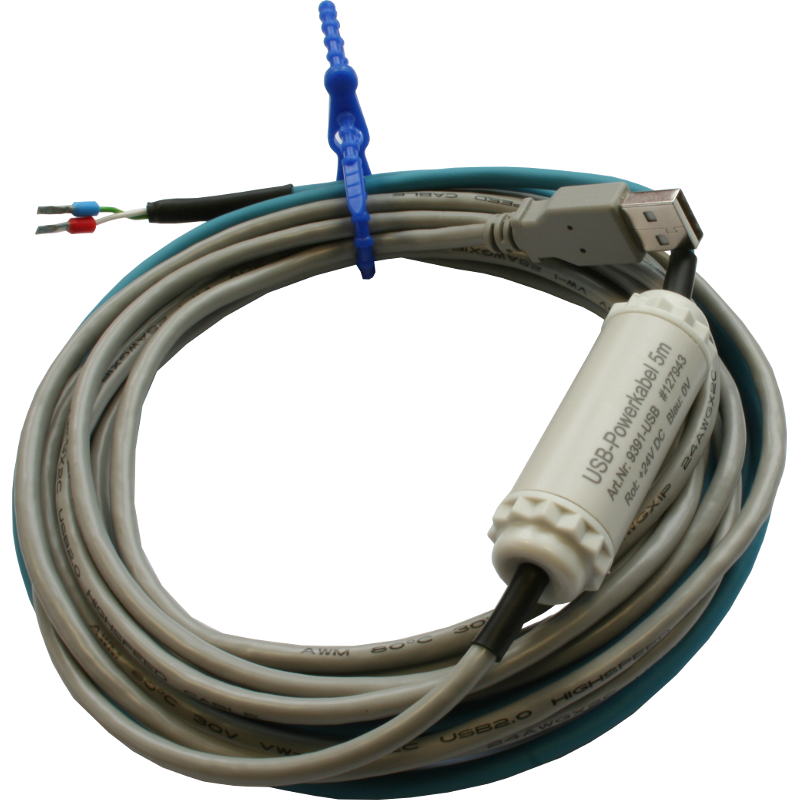

USB-powercable for 24V DC, max. 3W
Article Number: 9391-USB
USB-plug type A to 2 open braids
24V DC, maximum current: 125mA (for PC
100mA)
length: 5m

Cross-cable 3m Cat5+, shielded
Article Number: 9636-CROSS
RJ45 plug <=> RJ45 plug, twisted pinning
