TPA

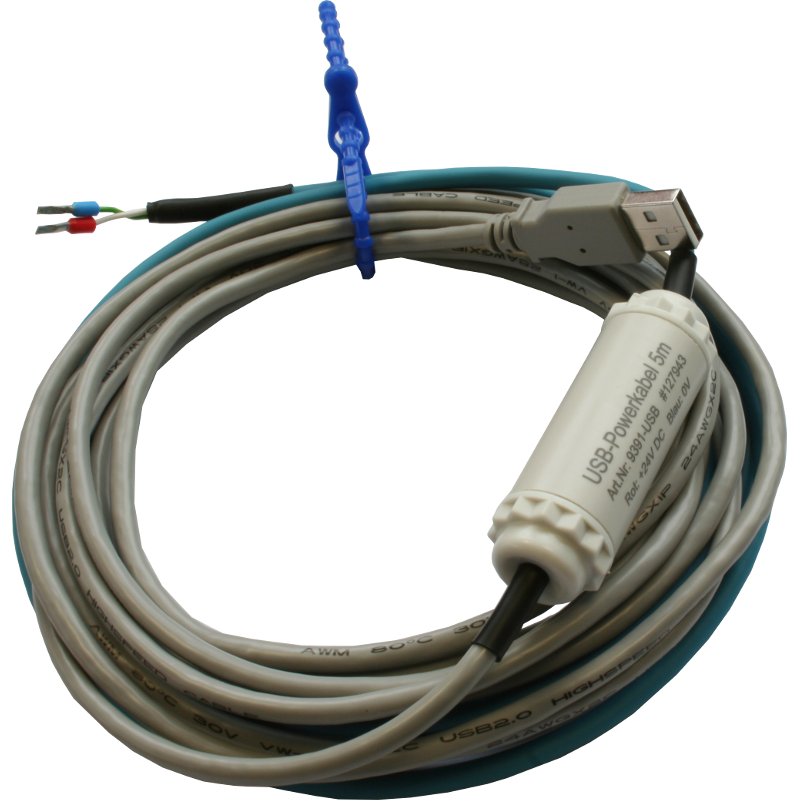

USB-powercable for 24V DC


Mobile 24V DC from the USB-port or battery-pack

  • Generates from the USB 5V-voltage the required 24V DC
  • Maximum bleed current: 125mA
  • When connected to PC only maximum 100mA!
  • USB-plug type A, so fits into USB-battery-packs
  • Cable length: 5m
  • Special length on demand

  • Generates from the USB 5V-voltage the required 24V DC
  • Maximum bleed current: 125mA
  • When connected to PC only maximum 100mA!
  • USB-plug type A, so fits into USB-battery-packs
  • Cable length: 5m
  • Special length on demand

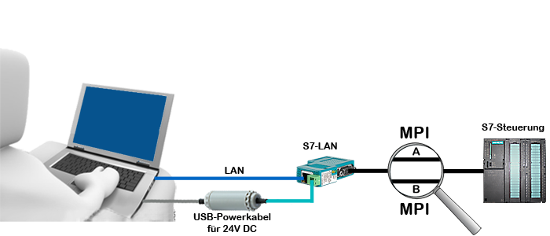

Accessing bus systems without 24V
Produkbild

You are on site at your plant, right in the field and have no 24V DC to power your S7-LAN-module? Plug the USB-powercable into a free USB-port on your PC, connect it to the S7-LAN-module and you will be immediatly Online on the connected bus.

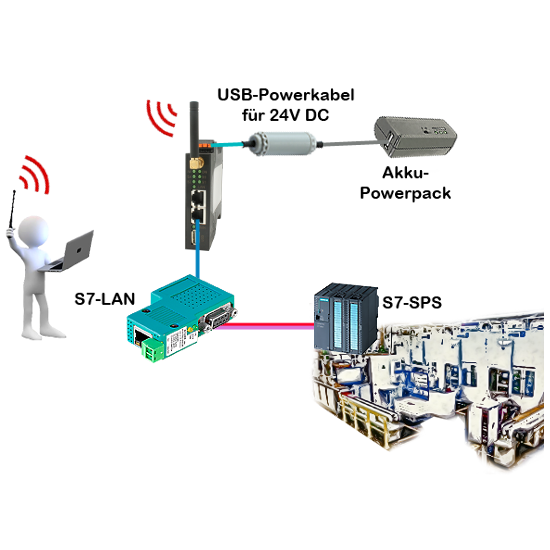

Operation with power-pack
Produkbild

You want to move your mobile plant and need for the Acces-Point ALF a 24V DC supply. Through the USB-powercable and a USB-power-battery you have mastered the problem with little effort.

Supply voltage: 5V DC
Power consumption: max. 3 watt
Interfaces: 1x USB-plug type A
1x open bleed (Green: + 24V DC, White: GND)
Galvanic separation: 1000V
Operating temperature: 0 - 55°C
Case: plastic case
Cablelength: 5 m
Scope of delivery:
USB-power-cable

accessories:

9352-24
Power connector 2pins small

cable coupling by screw-connector (small)
INFOMAIL
by e-mail
9371-24
Power connector 2pins big

connector plug lockable by jack with screws
INFOMAIL
by e-mail
9372-24
Power connector 3pins big

connector plug lockable by jack with screws
INFOMAIL
by e-mail

Variationen:

9391-USB
USB-powercable for 24V DC, max. 3W

USB-plug type A to 2 open braids 24V DC, maximum current: 125mA (for PC 100mA) length: 5m
INFOMAIL
by e-mail

9391-USB-12V
USB-powercable for 12V DC, max. 3W
USB-plug type A to 2 open braids 12V DC, maximum current: 250mA (for PC 200mA) length: 5m
INFOMAIL
by e-mail
