TPA

Memory modules / Prommer

products

Memory-modules
Memory-modules for SIMATIC® - S5&S7

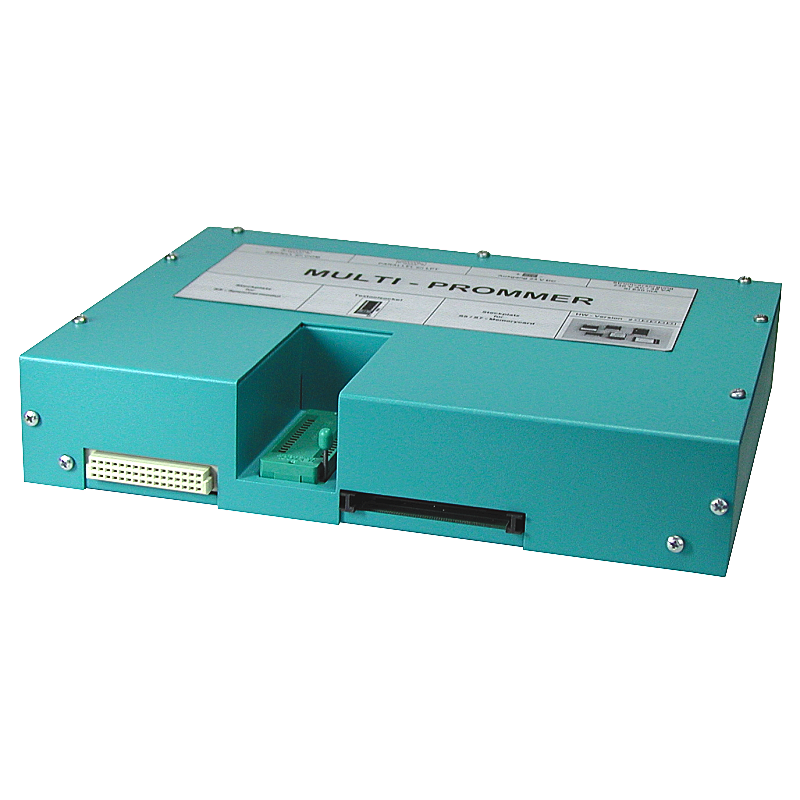

MULTI-PROMMER
programming device for S5 and S7-300/400 memory modules and Dual-In-Line (Multi-Prommer)

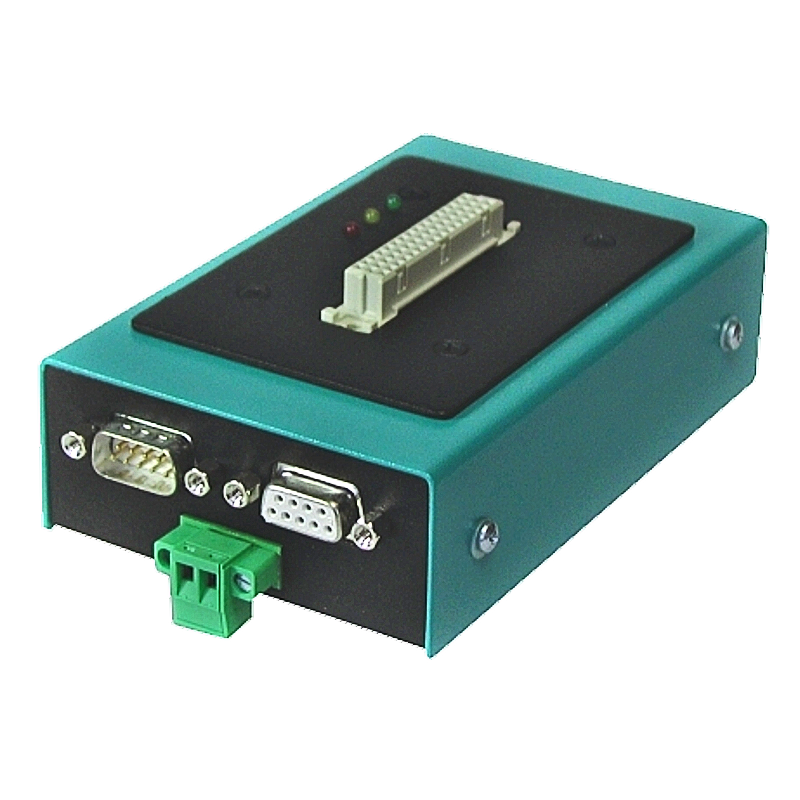

MINI-PROMMER-III
programming device for S5 memory modules

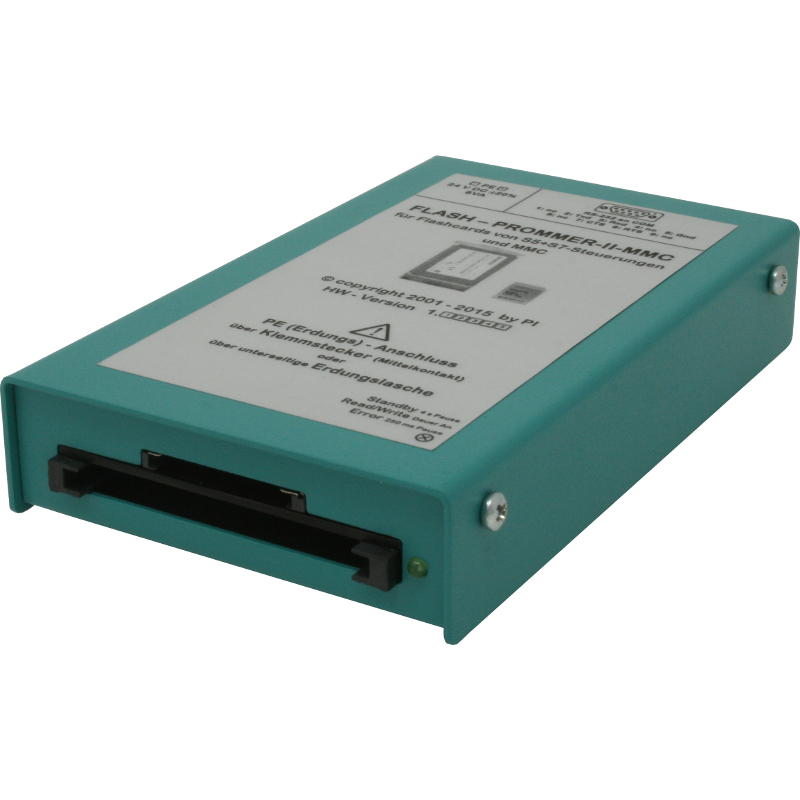

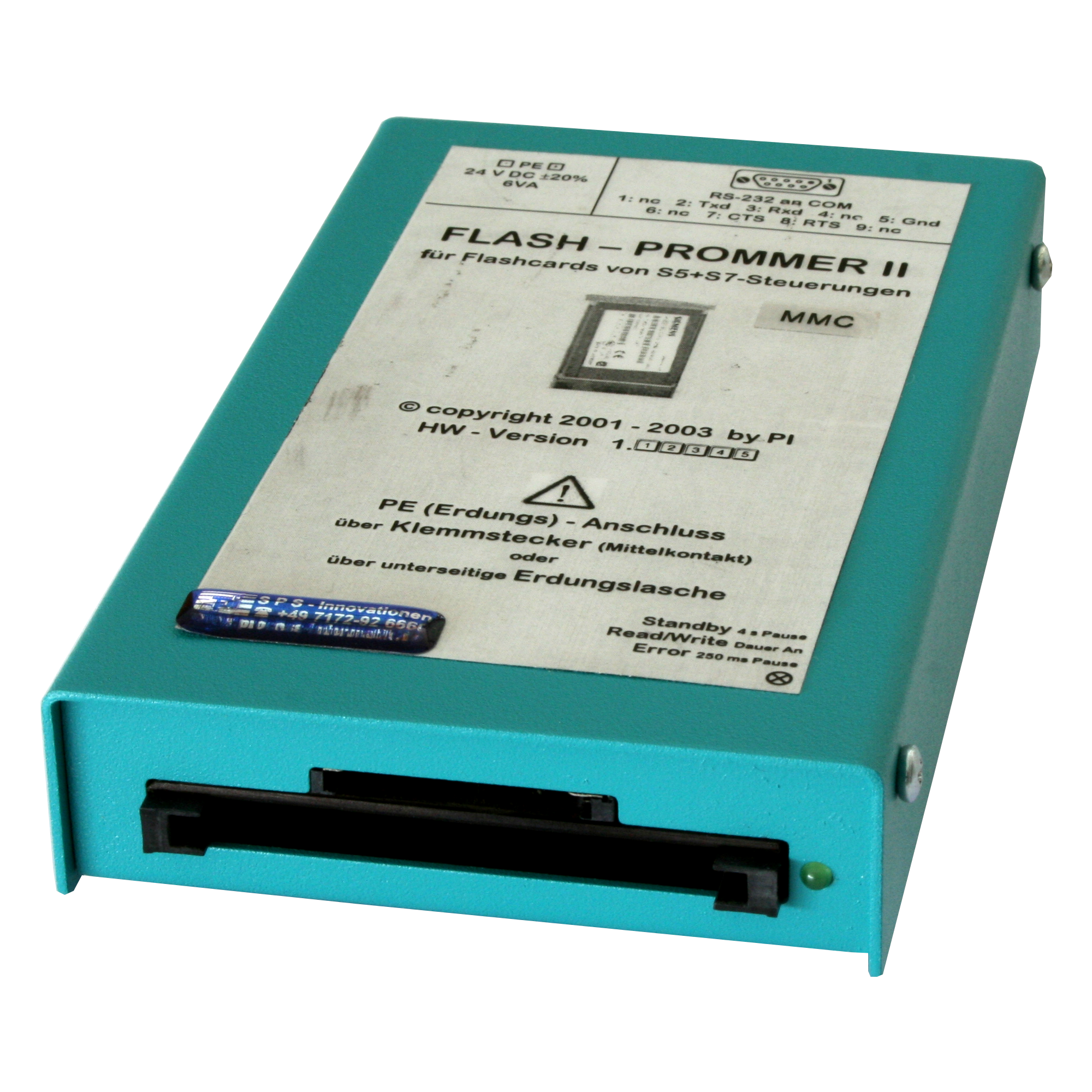

FLASH-PROMMER-II-MMC
programming device for S5 and S7 memory modules

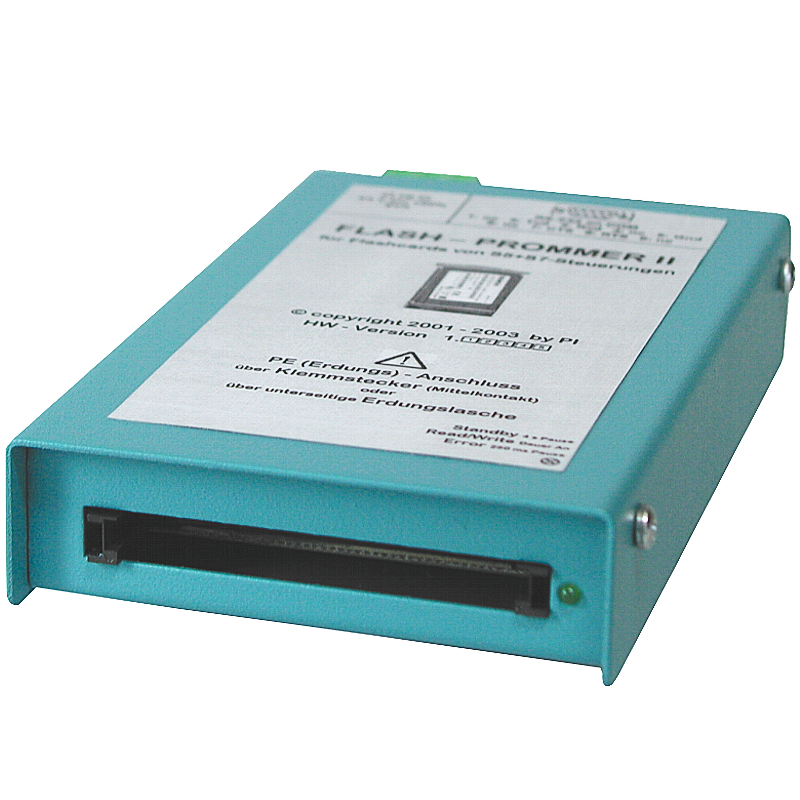

FLASH-PROMMER-II
programming device for S5 and S7 memory modules

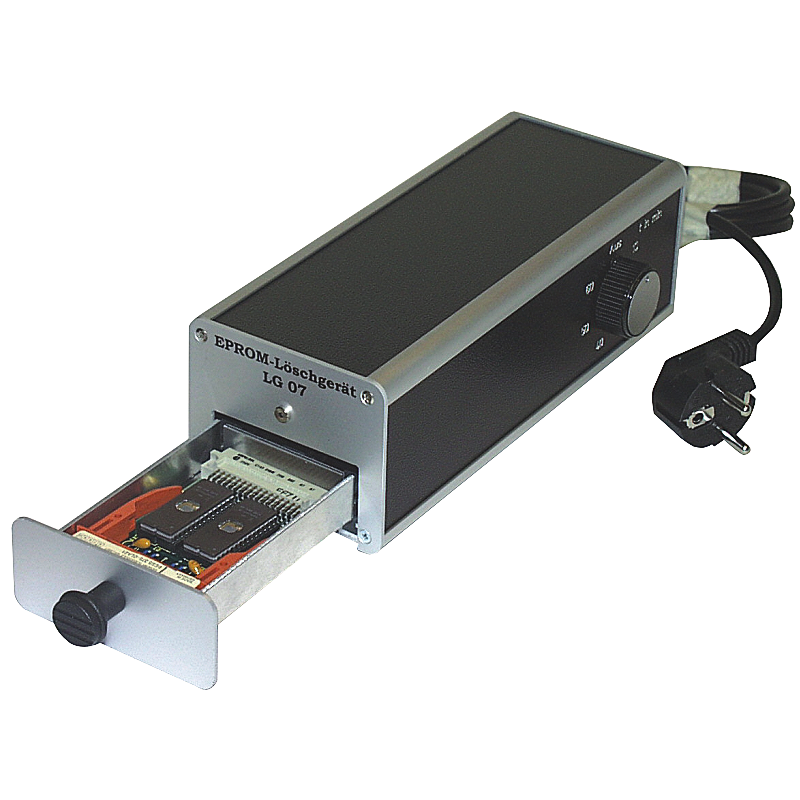

EPROM-ERASER LG07
Erasing EPROM memory modules

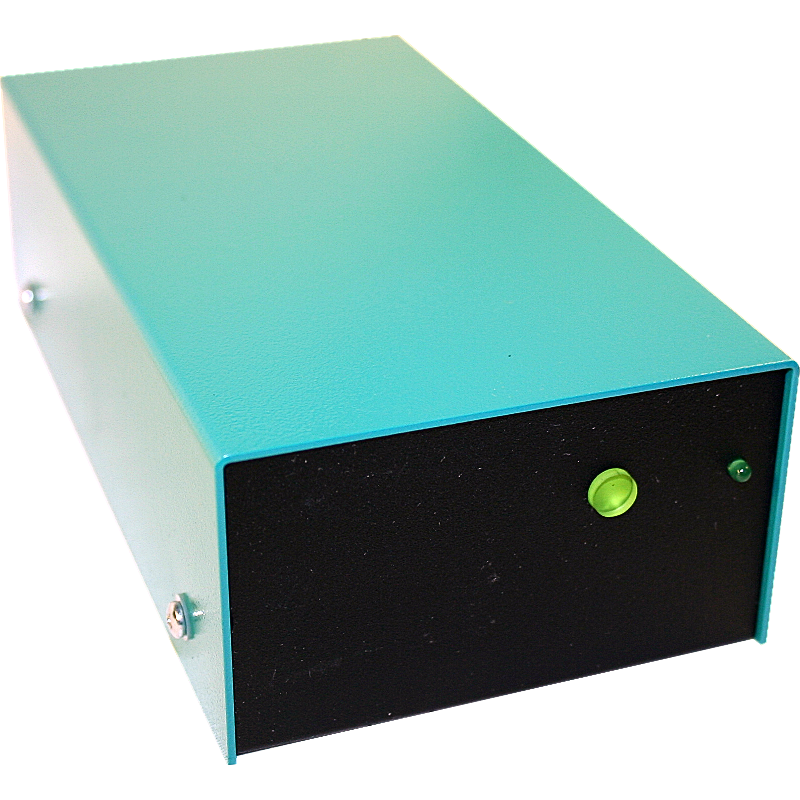

EPROM-ERASER UVL3
Erasing EPROM memory modules

Robust steel plate case (programming devices)
Applicable for use as a desktop unit (programming device)
Easy handling and therefore quick on-site operation
Replacement for already discontinued original products
Including Windows operating-software
- 16-bit for Win98/98SE/Me/XP

more...

Robust steel plate case (programming devices)
Applicable for use as a desktop unit (programming device)
Easy handling and therefore quick on-site operation
Replacement for already discontinued original products
Including Windows operating-software
- 16-bit for Win98/98SE/Me/XP
- 32-bit for Windows (any)
  For operation with Win11, the "Microsoft Visual C ++ 2010 Redistributable Pack X86" is needed!!

			Mini-Prommer-III		Flash-Prommer-II-MMC		Multi-Prommer
Supported formats			Windows XP (16-Bit-Version)	Windows 7 (32-Bit-Version)	Windows XP (16-Bit-Version)	Windows 7 (32-Bit-Version)	Windows XP (16-Bit-Version)	Windows 7 (32-Bit-Version)
Binäryfile *.BIN			✓	✓	✓	✓	✓	✓
Step-5 file *.S5D			✓	✓	✓	✓	✓	✓
Step-7 file(structur) *.S7P			✓	✓	✓	✓	✓	✓
S7-PLC-firmware-update (MMC)					✓	✓
ET-100 files *.308			✓		✓		✓
ET-200 files *ET.200			✓		✓		✓
ET2-Binäryexport *.2BF			✓		✓		✓
Intel-Hex-format *.HEX			✓		✓		✓
Motorola-Hex-format *.EPR			✓		✓		✓
CP-525/524 files *.525			✓		✓		✓
CP-5431-files Q.			✓		✓		✓
CP-1430/CP-143-files A.			✓		✓		✓
Module type	Storage type	Slot
2532	UV, NMOS	DIL-Socket					✓
27128	UV, NMOS	DIL-Socket	✓				✓
2732A	UV, NMOS	DIL-Socket	✓				✓
2764	UV, NMOS	DIL-Socket	✓				✓
27C010	UV, CMOS	DIL-Socket	✓				✓
27C1001	UV, CMOS	DIL-Socket	✓				✓
27C128	UV, CMOS	DIL-Socket	✓				✓
2716BQ	UV, CMOS	DIL-Socket	✓				✓
27C200	UV, CMOS	DIL-Socket	✓				✓
27C256	UV, CMOS	DIL-Socket	✓				✓
27C400	UV, CMOS	DIL-Socket	✓				✓
27C512	UV, CMOS	DIL-Socket	✓				✓
27C64A	UV, CMOS	DIL-Socket	✓				✓
27C080	UV, CMOS	DIL-Socket	✓				✓
27C801	UV, CMOS	DIL-Socket	✓				✓
28F010	FLASH	DIL-Socket
29F010	FLASH	DIL-Socket	✓				✓
370-0AA41	UV, CMOS	VG-strip	✓ (only reading)				✓ (only reading)
372-0AA51	UV, NMOS	VG-strip	✓ (only reading)				✓ (only reading)
372-0AA61	UV, NMOS	VG-strip	✓ (only reading)				✓ (only reading)
373-0AA21	UV, NMOS	VG-strip	✓				✓
373-0AA41	UV, NMOS	VG-strip	✓ (ab V1.5)				✓
373-0AA61	UV, NMOS	VG-strip	✓ (ab V1.5)				✓
373-0AA81	UV, CMOS	VG-strip	✓ (ab V1.5)				✓
373-1AA41	UV, CMOS	VG-strip	✓				✓
373-1AA61	UV, CMOS	VG-strip	✓				✓
373-1AA81	UV, CMOS	VG-strip	✓				✓
374-1FG11	FLASH	PCMCIA			✓		✓ (ab V3.15)
374-1FH11	FLASH	PCMCIA			✓		✓ (ab BS3.E)
374-1FH21	FLASH	PCMCIA			✓		✓
374-1KG11	FLASH	PCMCIA			✓		✓
374-1KJ11	FLASH	PCMCIA			✓		✓
374-1KH21	FLASH	PCMCIA			✓		✓
374-1KK21	FLASH	PCMCIA			✓		✓
374-2FH21	FLASH	PCMCIA			✓		✓
374-2KG21	FLASH	PCMCIA			✓		✓
374-2KH21	FLASH	PCMCIA			✓		✓
374-2KK21	FLASH	PCMCIA			✓		✓
374-2KL21	FLASH	PCMCIA			✓		✓
375-0LA11	UV, NMOS	VG-strip	✓				✓
375-0LA15	UV, NMOS	VG-strip	✓				✓
375-0LA21	UV, NMOS	VG-strip	✓				✓
375-0LA41	UV, NMOS	VG-strip	✓				✓
375-0LA61	UV, CMOS	VG-strip	✓ (ab V1.5)				✓
375-0LA71	UV, CMOS	VG-strip	✓				✓
375-0LC11	EEPROM	VG-strip	✓				✓
375-0LC15	EEPROM	VG-strip	✓				✓
375-0LC21	EEPROM	VG-strip	✓				✓
375-0LC31	EEPROM	VG-strip	✓				✓
375-0LC41	EEPROM	VG-strip	✓				✓
375-0LC61	EEPROM	VG-strip	✓				✓
375-1LA15	UV, CMOS	VG-strip	✓				✓
375-1LA21	UV, CMOS	VG-strip	✓				✓
375-1LA41	UV, CMOS	VG-strip	✓ (ab V1.5)				✓
375-1LA61	UV, CMOS	VG-strip	✓				✓
375-1LA71	UV, CMOS	VG-strip	✓				✓
375-8LA11	UV, CMOS	VG-strip	✓				✓
375-8LA12	FLASH	VG-strip	✓ (ab V1.6)				✓
375-8LC11	EEPROM	VG-strip	✓				✓
375-8LC21	EEPROM	VG-strip	✓				✓
375-TPA1	EEPROM	VG-strip	✓ (ab V1.5)				✓
376-0AA11	UV, NMOS	VG-strip	✓				✓
376-0AA21	UV, NMOS	VG-strip	✓				✓
376-0AA31	UV, CMOS	VG-strip	✓				✓
376-1AA11	UV, CMOS	VG-strip	✓				✓
376-1AA21	UV, CMOS	VG-strip	✓ (ab V1.5)				✓
376-1AA31	UV, CMOS	VG-strip	✓				✓
6FX1126-0B !Number has to be the same!	UV, CMOS	VG-strip	✓				✓
6FX1128-4B !Number has to be the same! Don't confuse with 6FX1128-4BB10, there is no compatibility!	UV, CMOS	VG-strip	✓				✓
6FX1130-5B !Number has to be the same!	UV, CMOS	VG-strip	✓				✓
910-0AA31	UV, NMOS	VG-strip	✓ (only reading)				✓ (only reading)
910-0AA41	UV, NMOS	VG-strip	✓ (only reading)				✓ (only reading)
951-0FD00	FLASH	PCMCIA			✓		✓
951-0KD00	FLASH	PCMCIA			✓		✓
951-0KD80	FLASH	PCMCIA			✓		✓
951-0KE00	FLASH	PCMCIA			✓		✓
951-0KE80	FLASH	PCMCIA			✓		✓
951-0KF00	FLASH	PCMCIA			✓		✓
951-0KF80	FLASH	PCMCIA			✓		✓
951-0KG00	FLASH	PCMCIA			✓		✓
951-0KJ00	FLASH	PCMCIA			✓		✓
951-1KH00	FLASH	PCMCIA			✓		✓
951-1KK00	FLASH	PCMCIA			✓		✓
951-1KM00	FLASH	PCMCIA			✓		✓
952-0KD00	FLASH	PCMCIA			✓		✓
952-0KE00	FLASH	PCMCIA			✓		✓
952-0KF00	FLASH	PCMCIA			✓		✓
952-0KG00	FLASH	PCMCIA			✓		✓
952-0KH00	FLASH	PCMCIA			✓		✓
952-1KK00	FLASH	PCMCIA			✓		✓
952-1KL00	FLASH	PCMCIA			✓		✓
952-1KM00	FLASH	PCMCIA			✓		✓
A1SMCY_8KP	UV, CMOS	DIL-Socket	✓				✓
FX_EEPROM4	UV, CMOS	DIL-Socket	✓				✓
FX_EPROM_8	UV, CMOS	DIL-Socket	✓				✓
