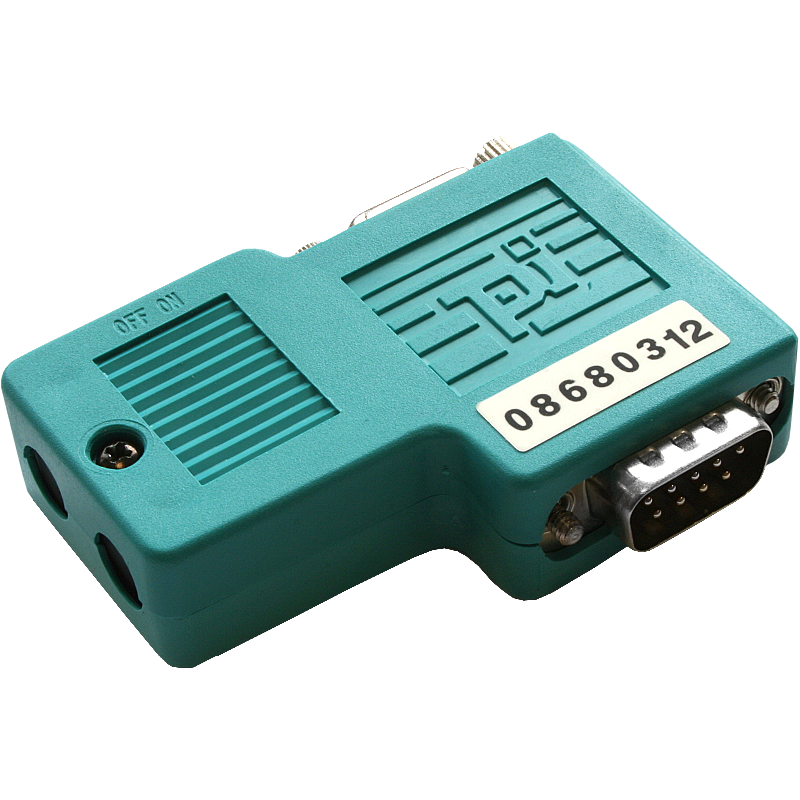

Stub-compensator without galv. separation

  • Interface module for the mpi-/profibbus to compensate stubs
  • No galvanic separation between bus and S7-interface-product
  • No settings for bus-type or bus-baudrate needed
  • Supports following S7-interface-products:
    • S7-LAN
    • S7-USB
    • MPI-LAN-cable
    • MPI-USB-cable
    • MPI-II-cable
    • MPI/PPI-cable

Technical data

Power consumption: 5V / typ. 80mA
Data rate: 9600 ... 12 MBit/s
to the PLC:
9 pol. male connector for PLC-connection
to the PD/PC:
9 pol. female connector for PD-connection
Operating temperature: 0 - 55°C
Case: ABS-plastic case
Dimensions: 65 x 43 x 17 mm
Scope of delivery:
Stub-compensator without galv. separation
Commercial data:
EAN number: 4260363241274
HS-code: 85444290
Weight: 0.2000 kg
