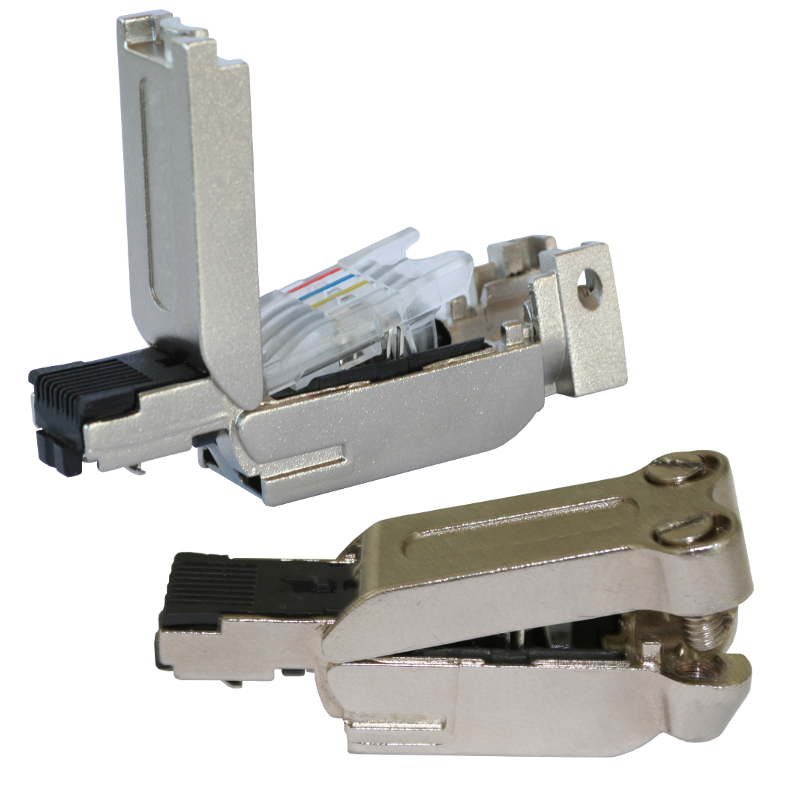

Profinet-Connector

Easy profinet-connection by a click

  • Fast assembly by Fast-Connect-Version
  • High interference resistance because of full metal case
  • Visual connection control
  • Cable connection via comfortable insulation displacement technology
  • Alternative captive two-screw mounting system or rotary-latch
  • Locking with metal nose, so no collapse possible

docu / downloads
applications

Technical data


Connector-type: 180° RJ45-plug
Terminals: 4-wire + Shield for Industrial Ethernet FC-cables
Fast Connect (FC): Yes
Baudrate: 100 Mbps - Cat 5e
Cable length: maximum 100m
Operating temperature: -20 - +70°C
Storage temperature: -40 - +80°C
Relative humidity during operation: <95%
Isolation class: IP 20
Dimensions (WxHxD): 13,7 x 16 x 55mm
Weight: 45g
Scope of delivery:
Profinet-Connector
Commercial data:
EAN number: 4260363243933
HS-code: 85369010
Weight: 0.1000 kg
applications technical data

technical data
applications
docu / downloads

article:
Art. ID.name
300 901-1BB10 Profinet-Connector with screw lock
Connector for industrial fast-connect-cable
300 901-1BB11 Profinet-Connector with rotary-latch
Screwless connector for industrial
fast-connect-cable
