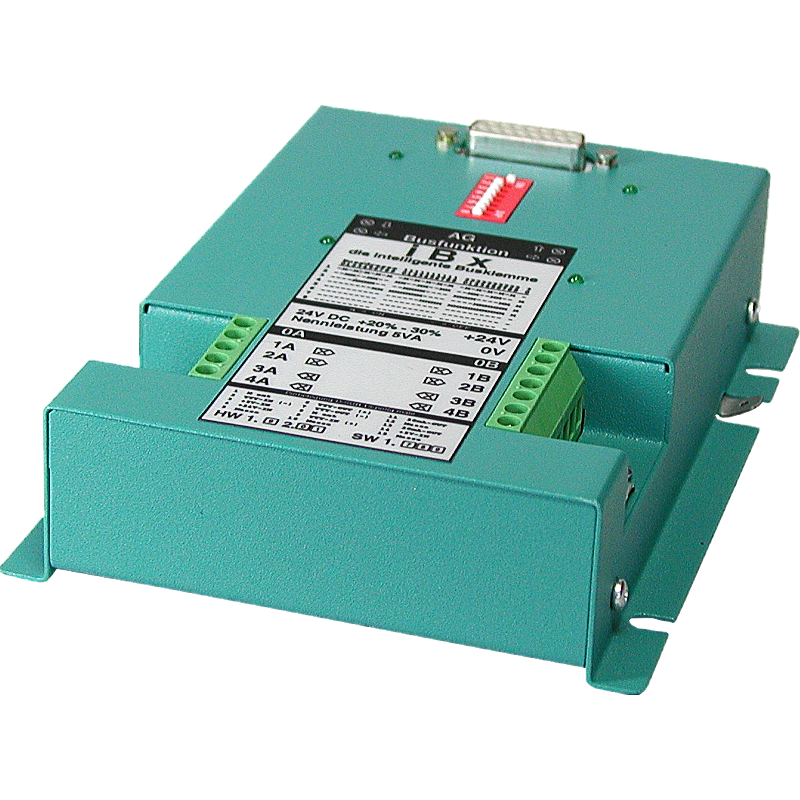

iBx-Busterminal
Intelligent networking of S5-PLCs
- No bus terminal resistor necessary
- LEDs for controlling the data stream on the IBX-bus
- All connection- and operating controls frontal
- LWL-adapter available as an option
Technical data
Supply voltage:
24V/DC +/- 20%
Power consumption:
5 watt
Display:
4 status-LEDs
Handling/Configuration:
DIP-Switch for address Configuration
Interfaces:
to the AG and PD/PC:
TTY/20mA current loop (iBx-Klemme aktiv, PLC passiv)
others:
10 x screw type terminal for bus connection A and B
2 x screw type terminal for 24V/DC power supply
Operating temperature:
5 - 55°C
Case:
powder coated metal case with mounting flange
Dimensions:
97 x 149 x 36 mm
Scope of delivery:
iBx-Busterminal
Commercial data:
EAN number:
4260363240161
HS-code:
85389099
Weight:
0.5000 kg
technical data
docu / downloads
Applications
Linking of S5-PLC’s without modifying the PLC-program
You have to link several S5-PLC’s so that in case of need you can respond to all of them without modifying the PLC-program? No problem, connect all PLC’s that are in the run with the
IBX-Klemme, set up the respective address (1 to 30) at the IBX-Klemme and with the address 0 you will be able to respond to all PLC’s via PD-bus-path selection.
Sinec-L1-bus configuration without BT-777-terminal
You have to configure a Sinec-L1-bus, own the master, but there’s no BT-777-busterminal to buy? No problem, connect the IBX-Klemme to every S5-PLC that is in the run via the optional
IBX-SPS-cable, supply every IBX-Klemme with ext. 24V DC if the PLC is not able to provide it, set-up the address 0 and define the actual L1-bus-address in the PLC. Now your master can communicate
with the slave-assemblies.
Longer distances for L1-Bus
You need for your L1-Bus higher distance like the possible 1200m? You have strong distrubance on your L1-Bus? You need a serial line for higher distances and this galvanic decoupled? No problem,
all this points are solved through the LWL-adapter. They are available for artificial and optical fibre, for L1-Bus and RS232.
applications
technical data
technical data
applications
docu / downloads
article: Art. ID. name 9530
iBx-Busterminal
intelligent bus terminal,
substitute for BT-777-terminal,
optional PLC-connecting cable
applications
technical data
accessories: Art. ID. name 9391-UH
Universal DIN-rail-holder with mounting
Including mounting of the relevant product 9391.1
24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug 9428
S5-DUP-Interface card Obsolete
9429
DUP-TEXT-Display DUPLINE Obsolete
Pannel for the Dup-Line-bus 9530-9S
iBx-SPS-cable to PLC 3m
one side angled, other side straight cable tap 9530-9WS
iBx-SPS-cable to PLC 3m
bothside 45° angle 9531-G
Light wire-adapter
for glasfibre-cables 9531-K
Light wire-adapter
for plasticfibre-cables 9532-K
Light wire-adapter Obsolete
RS232 for plasticfibre-cables
- No bus terminal resistor necessary
- LEDs for controlling the data stream on the IBX-bus
- All connection- and operating controls frontal
- LWL-adapter available as an option
Technical data
| Supply voltage: | 24V/DC +/- 20% |
| Power consumption: | 5 watt |
| Display: | 4 status-LEDs |
| Handling/Configuration: | DIP-Switch for address Configuration |
| Interfaces: |
to the AG and PD/PC:
TTY/20mA current loop (iBx-Klemme aktiv, PLC passiv)
others:
10 x screw type terminal for bus connection A and B2 x screw type terminal for 24V/DC power supply |
| Operating temperature: | 5 - 55°C |
| Case: | powder coated metal case with mounting flange |
| Dimensions: | 97 x 149 x 36 mm |
| Scope of delivery: | |
| iBx-Busterminal |
| Commercial data: | |
| EAN number: | 4260363240161 |
| HS-code: | 85389099 |
| Weight: | 0.5000 kg |
technical data
docu / downloads
Applications
Linking of S5-PLC’s without modifying the PLC-program
You have to link several S5-PLC’s so that in case of need you can respond to all of them without modifying the PLC-program? No problem, connect all PLC’s that are in the run with the
IBX-Klemme, set up the respective address (1 to 30) at the IBX-Klemme and with the address 0 you will be able to respond to all PLC’s via PD-bus-path selection.
| Sinec-L1-bus configuration without BT-777-terminal
You have to configure a Sinec-L1-bus, own the master, but there’s no BT-777-busterminal to buy? No problem, connect the IBX-Klemme to every S5-PLC that is in the run via the optional
IBX-SPS-cable, supply every IBX-Klemme with ext. 24V DC if the PLC is not able to provide it, set-up the address 0 and define the actual L1-bus-address in the PLC. Now your master can communicate
with the slave-assemblies.
|
Longer distances for L1-Bus You need for your L1-Bus higher distance like the possible 1200m? You have strong distrubance on your L1-Bus? You need a serial line for higher distances and this galvanic decoupled? No problem, all this points are solved through the LWL-adapter. They are available for artificial and optical fibre, for L1-Bus and RS232. | |
| article: | |||||
|---|---|---|---|---|---|
| Art. ID. | name | ||||
| 9530 | iBx-Busterminal intelligent bus terminal, substitute for BT-777-terminal, optional PLC-connecting cable | ||||
applications
technical data
| accessories: | |||||
|---|---|---|---|---|---|
| Art. ID. | name | ||||
| 9391-UH | Universal DIN-rail-holder with mounting Including mounting of the relevant product | ||||
| 9391.1 | 24V DC power-supply unit 625mA Primary 110V - 240 VAC Euro+USA-plug | ||||
| 9428 | S5-DUP-Interface card Obsolete | ||||
| 9429 | DUP-TEXT-Display DUPLINE Obsolete Pannel for the Dup-Line-bus | ||||
| 9530-9S | iBx-SPS-cable to PLC 3m one side angled, other side straight cable tap | ||||
| 9530-9WS | iBx-SPS-cable to PLC 3m bothside 45° angle | ||||
| 9531-G | Light wire-adapter for glasfibre-cables | ||||
| 9531-K | Light wire-adapter for plasticfibre-cables | ||||
| 9532-K | Light wire-adapter Obsolete RS232 for plasticfibre-cables | ||||
