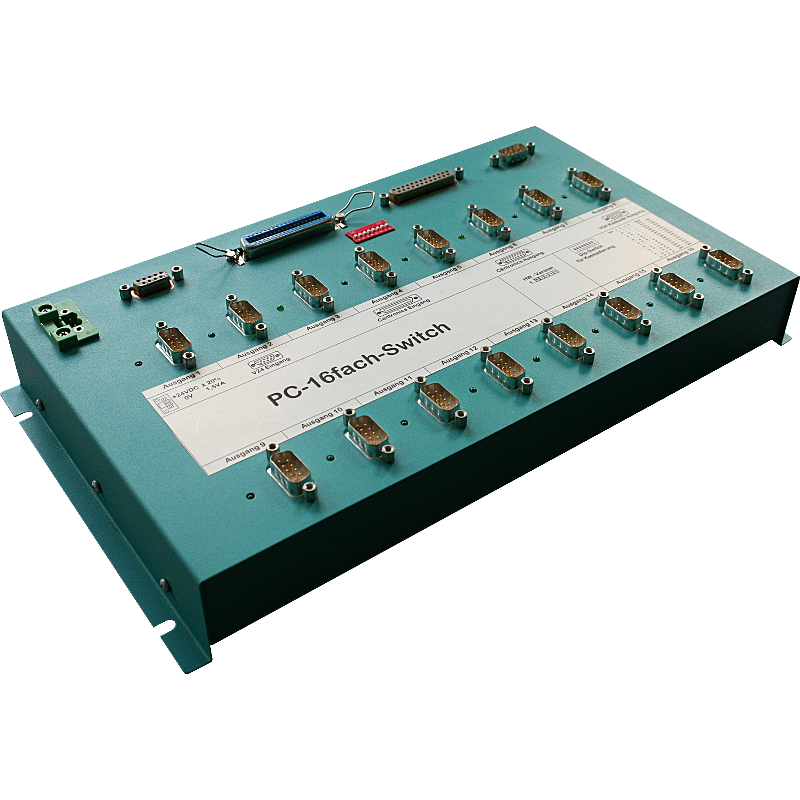

16-times PC-Switch

Communicate with multiple serial devices without replugging

  • Cascading of the switches on 4 bits of the Centronics interface
  • Serial and Centronics interface conected through
  • Active port indicated by a LED

docu / downloads
applications

Technical data


Supply voltage: 24V/DC +/- 20%
Power consumption: 1,5 watt
Display: 16 LEDs for displaying the aktiv port
Handling/Configuration: DIP-Switch for cascadability of the Switches
Interfaces: 16 x RS232: 9,6 KBd - 115,2 KBd / fully assigned
1 x RS232 input: 9,6 KBd - 115,2 KBd / with a 1on1-cable to the PC
1 x RS232 output: 9,6 KBd - 115,2 KBd / with a 1on1-cable to the next switch
1 x Centronics input: for switch selection via 4 bit
1 x 25pin D-Sub output: for switch selection via 4 bit
Operating temperature: 5 - 55°C
Case: powder coated metal case with mounting flange
Dimensions: 352 x 182 x 42 mm
Scope of delivery:
  16-times-PC-SWITCH
Power connector 2pins small
Commercial data:
EAN number: 4260363242592
HS-code: 85389099
Weight: 0.4000 kg
