TELE-PROFessional-II (TP-II)
Programming of S5- and S7-PLC’s via telephone from afar
OEM - Version (all accessories optional)
without PCMCIA-Slot for UMTS-/LAN-card
- Secured modem-protocol, no additional software needed

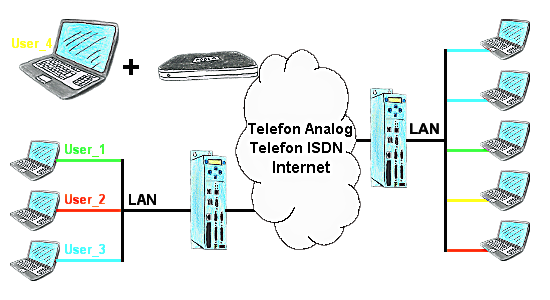

- UMTS- / VPN- / internet-service
- Also for PLC’s with ProfiNet
- SMS and fax sending directly from S7-300/400 (no PLC-programming necessary)

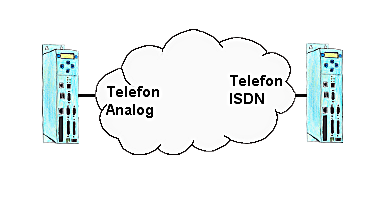

- Analogue modem couples automatically via ISDN
more...
- Secured modem-protocol, no additional software needed
- UMTS- / VPN- / internet-service
- Also for PLC’s with ProfiNet
- SMS and fax sending directly from S7-300/400 (no PLC-programming necessary)
- Analogue modem couples automatically via ISDN

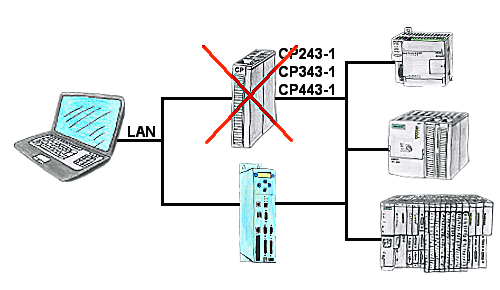

- With integrated CP-343-1 / 443-1 functionality

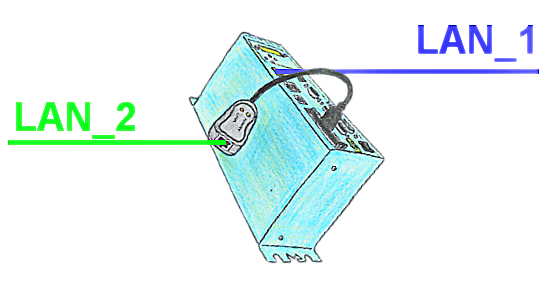

- Ethernet also for router function
- PCMCIA-slots (only for version -H) for extensions (memory cards / specific modem cards (GSM) / WLAN)
- Compatible to the forerunner model (TELE-Prof / TELE-Book / TELE-Link)

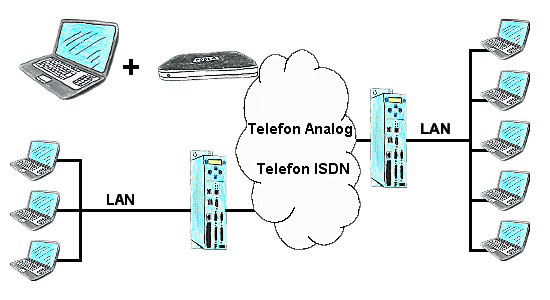

- Also as TCP/IP-router
- S7-variables display via Web-Browser

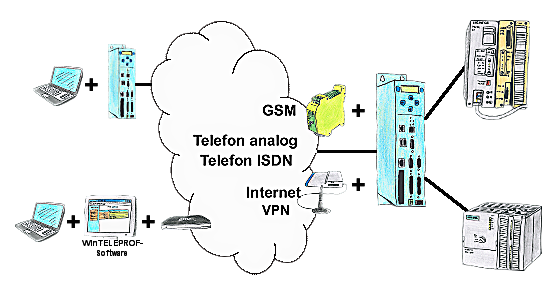

- S7-remote maintenance with MPI-Interface

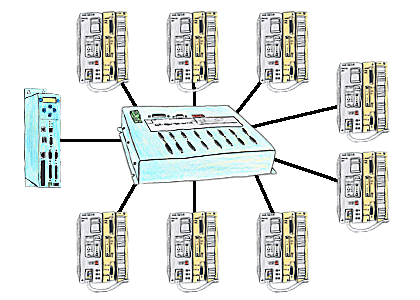

- S5-remote maintenance (access to every S5 direct / via H1, L1, L2 and KOR/MUX)
- Integrated telephone directory
- Call-back of partner possible
- Software-update via PC (LAN) respectively from device to device possible
Automatic-mode
Main downloads
Versionstory
Other downloads
Documentation
Extension
Support-videos
Remote maintenance
 TELE LINK NETWORK
|
||||||||
| secured modem-protocol |
✓
|
✓
|
✓
|
|||||
| additional software needed |
Siemens TS -Software
|
Siemens TS -Software
|
VPN-Client
|
VPN-Client
|
||||
| Providing WinTELEPROF-software |
✓
|
✓
|
✓
|
|||||
| modem |
analogue/ISDN
|
analogue
|
opt. via PCMCIA
|
analogue/GSM
|
analogue/ISDN/GSM
|
internet-connection
|
internet-connection
|
internet-connection
|
| modem for world wide use |
✓
|
✓
|
✓
|
✓
|
✓
|
|||
| interfaces | ||||||||
| MPI/Profibus |
9600-12MBd
|
9600-12MBd
|
9600-12MBd
|
9600-12MBd
|
||||
| RS232 |
2x
|
2x
|
2x
|
1x
|
1x
|
|||
| TTY |
2x
|
2x
|
2x
|
1x
|
||||
| PCMCIA |
2x (optionally)
|
1x
|
1x
|
|||||
| Ethernet |
10/100BaseTx
|
1x
|
1x
|
5x
|
||||
| USB |
2x
|
1x
|
||||||
| LCD-display |
✓
|
✓
|
✓
|
✓
|
instead 10 LEDs
|
instead status-LED
|
instead webserver
|
instead webserver
|
| supported PLC-protocols * | ||||||||
| S7 |
✓
|
✓
|
✓
|
✓
|
✓
|
✓
|
||
| S5 |
✓
|
✓ (optional)
|
✓ (optional)
|
✓
|
||||
| Pilz PSS |
✓
|
✓ (optional)
|
✓ (optional)
|
|||||
| Allen-Bradley |
✓
|
✓ (optional)
|
✓ (optional)
|
|||||
| AEG |
✓ (optional)
|
✓ (optional)
|
||||||
| Bosch |
✓ (optional)
|
✓ (optional)
|
||||||
| Telemecanique |
✓ (optional)
|
✓ (optional)
|
||||||
| GE-Fanuc |
✓ (optional)
|
✓ (optional)
|
||||||
| Klöckner-Moeller |
✓ (optional)
|
✓ (optional)
|
||||||
| Mitsubishi |
✓ (optional)
|
✓ (optional)
|
||||||

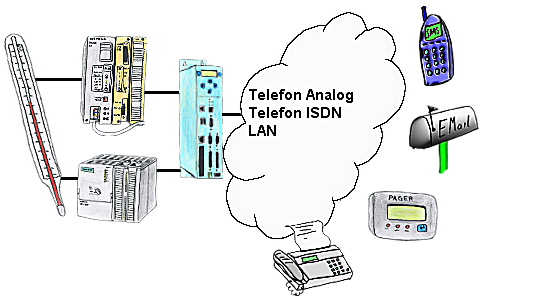

| SMS-sending/Pager(S5/S7) |
✓
|
✓
|
✓
|
✓ (no pager)
|
only for analogue / ISDN
|
|||

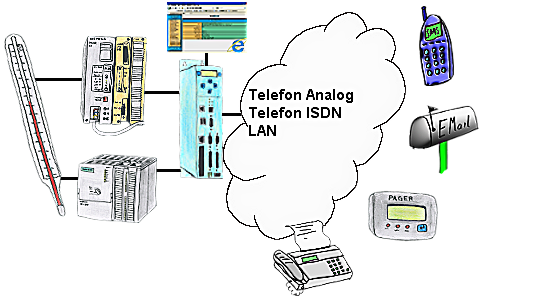

| HMI-messaging module(S5/S7) |
✓
|
✓
|
||||||
| SMS-receive with GSM |
✓
|
|||||||
| DTMF with analogue |
✓
|
|||||||
| e-mail-dispatch |
✓
|
✓
|
✓
|
|||||
| FAX-dispatch(S5/S7) |
✓
|
✓ (optional)
|
✓ (optional)
|
only for analogue / ISDN
|
||||

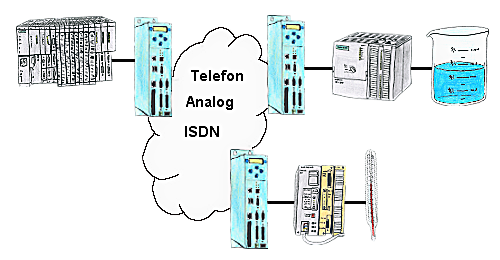

| PLC-data coupling(S5/S7) |
✓
|
✓ (optional)
|
✓ (optional)
|
✓
|
✓
|
|||
| ASCII-transfer from S5/S7 |
✓
|
✓ (optional)
|
✓ (optional)
|
only with ASCII-LAN
|
||||
| internet-coupling |
✓
|
|||||||
| Usage as dial-up-router |
✓
|
✓
|
||||||
| power supply |
24V/DC
|
24V/DC
|
24V/DC
|
24V/DC
|
24V/DC
|
24V/DC
|
24V/DC
|
24V/DC
|
| dimensions w x h x d (in mm) |
High: 67 x 280 x 170
FLAT: 300 x 175 x 70 |
300 x 175 x 66
|
235 x 162 x 37
|
90 x 162 x 54
|
40 x 125 x 115
|
42 x 15 x 65
|
65 x 43 x 17
|
154 x 92 x 28
|
|
* other PLC types on request |
||||||||
