TPA

PG-MUX-II for Siemens


PD-Interface Multiplexer for professionally usage (active)

  • Devices are advanced versions of the world widely used PG-MUX
  • All connectors and controls on the front
  • Permanent checking of the device functions and power supply => restart at failure
  • Right away ONLINE with both interfaces to the PLC
  • All PD functions can be accomplished parallel by 2 PD’s
  • Provided PLC’s: S5-90, S5-95, S5-100-series, S5-115 (also CPU945), S5-135U-series and S5-155-series
  • No additional or specific adapters are needed
  • Connecting mechanics, pin assignment and the electrical data correspond to the PD/PLC-interfaces of the relevant PLCs
  • Capability of connecting on PD-side: 2 x AS511 (PD-protocol) / 1 x SINEC-L1-BUS (no master protocols, no cross traffic) + 1 x AS511
  • 3m cable for AG-connection included in delivery

  • more...

  • Devices are advanced versions of the world widely used PG-MUX
  • All connectors and controls on the front
  • Permanent checking of the device functions and power supply => restart at failure
  • Right away ONLINE with both interfaces to the PLC
  • All PD functions can be accomplished parallel by 2 PD’s
  • Provided PLC’s: S5-90, S5-95, S5-100-series, S5-115 (also CPU945), S5-135U-series and S5-155-series
  • No additional or specific adapters are needed
  • Connecting mechanics, pin assignment and the electrical data correspond to the PD/PLC-interfaces of the relevant PLCs
  • Capability of connecting on PD-side: 2 x AS511 (PD-protocol) / 1 x SINEC-L1-BUS (no master protocols, no cross traffic) + 1 x AS511
  • 3m cable for AG-connection included in delivery
  • Possible power supply: 230V AC or 24V DC

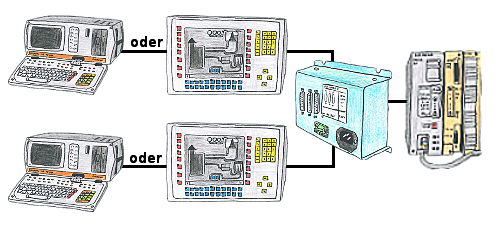

PD-interface of the S5-PLC already occupied (service device)

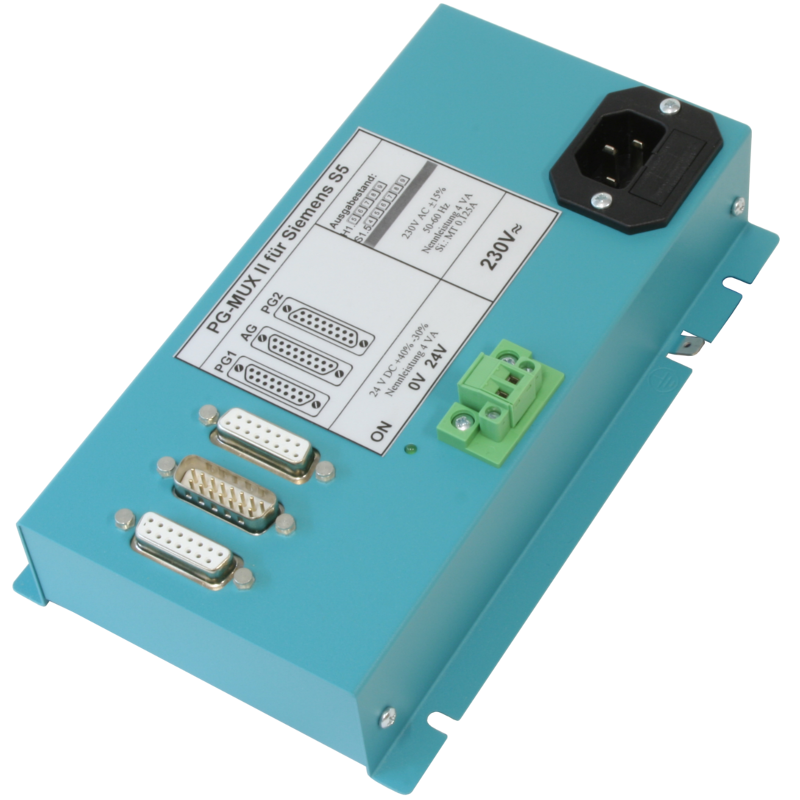

Produkbild
Your PD-interface of the S5-PLC is already occupied with a panel and you should accomplish program modifications without removing the panel? No problem, connect the Multiplexer one-time to the PLC and then connect the panel and also your PC to the Multiplexer. Now you can work parallel with the PLC without the need of affecting the operation of the panel. You can even work with 2 programming devices simultaneously, 2x open the same component, only changes which are stored last will be finally stored in the PLC. Also ideal for trainings purposes if PLC’s are scare goods.
Supply voltage: 240V AC 50-60Hz
24V DC +/- 20%
Power consumption: 4 watt
Display: LED for function and watchdog supervision
Interfaces:
to the PLC:
TTY/20mA current loop (multiplexer active, PLC passiv)
to the PD/PC:
2 PD x TTY/20mA current loop (multiplexer active, 100 % mechanically and electr. compatible)
Operating temperature: 0 - 55°C
Case: powder coated metal case with mounting flange
Dimensions: 190 x 110 x 50 mm
Scope of delivery:
PG-MUX-II for Siemens
Power-cord
PLC-connecting-cable
Power connector 2pins big

accessories:

9361-3
S5-connecting cable 3m

forTELE-PROF, MINI-/PG-MUX-II
INFOMAIL
by e-mail
9361-3.05M
S5-connecting cable 5m

for TELE-PROF, MINI-/PG-MUX-II
INFOMAIL
by e-mail
9361-3.06M
S5-connecting cable 6m

for TELE-PROF, MINI-/PG-MUX-II
INFOMAIL
by e-mail
9361-3.10M
S5-connecting cable 10m

for TELE-PROF, MINI-/PG-MUX-II
INFOMAIL
by e-mail
9361-6
Servicebag Obsolete

for PG-MUX-II
INFOMAIL
by e-mail
9371-24
Power connector 2pins big

connector plug lockable by jack with screws
INFOMAIL
by e-mail
9391-MT
Mounting set

for DIN-rail-holder
INFOMAIL
by e-mail
9391-UH
Mounting of universal DIN-rail-holder

of the relevant product
INFOMAIL
by e-mail
9391.1
24V DC power-supply unit 625mA

Primary 110V - 240 VAC Euro+USA-plug
INFOMAIL
by e-mail

Variationen:

9361-5
PG-MUX-II for SIEMENS-S5

with PLC-specific connecting cable to PLC and power cable
INFOMAIL
by e-mail

9361-5-24V
PG-MUX-II for SIEMENS-S5 24V version

incl. connecting-cable to PLC
INFOMAIL
by e-mail
9361-5-US
PG-MUX-II for SIEMENS-S5 115V version

incl. connecting-cable to PLC
INFOMAIL
by e-mail
