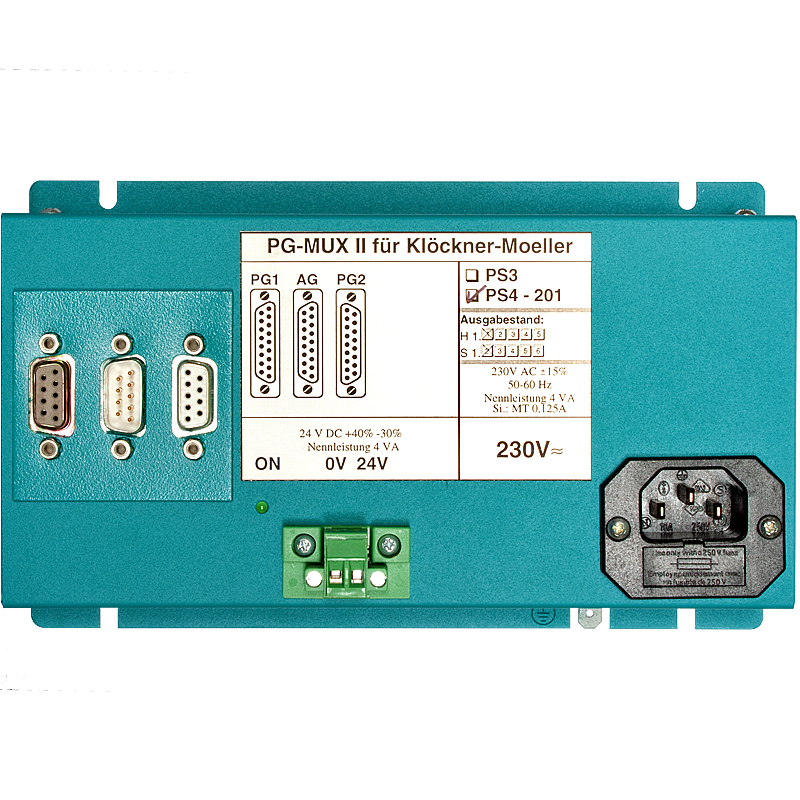

PG-MUX-II for Klöckner-Moeller PS4

PD-Interface Multiplexer for professionally usage (active)

  • Devices are advanced versions of the world widely used PG-MUX
  • All connectors and controls on the front
  • Permanent checking of the device functions and power supply => restart at failure
  • Right away ONLINE with both interfaces to the PLC
  • All PD functions can be accomplished parallel by 2 PD’s
  • Provided PLC’s: PS 4-201 (no PS 3, this PLC has another hardware interfaces)
  • No additional or specific adapters are needed
  • Connecting mechanics, pin assignment and the electrical data correspond to the PD/PLC-interfaces of the relevant PLCs
  • Capability of connecting on PD-side: 2 x PD's / 2x OP/Panel / 1x PD + 1x OP/Panel
  • 3m cable for AG-connection included in delivery
  • Possible power supply: 230V AC or 24V DC

Technical data


Supply voltage: 240V AC 50-60Hz
24V DC +/- 20%
Power consumption: 4 watt
Display: LED for function and watchdog supervision
Interfaces:
to the PLC:
TTY/20mA current loop (multiplexer aktiv, PLC passiv)
to the PD/PC:
2 PD x TTY/20mA current loop (multiplexer aktiv, 100 % mechanically and electr. compatible)
Operating temperature: 0 - 55°C
Case: powder coated metal case with mounting flange
Dimensions: 190 x 110 x 50 mm
Scope of delivery:
PG-MUX-II for Klöckner-Moeller PS4
Power-cord
PLC-connecting-cable
Power connector 2pins big
Commercial data:
EAN number: 4260363241472
HS-code: 85389099
