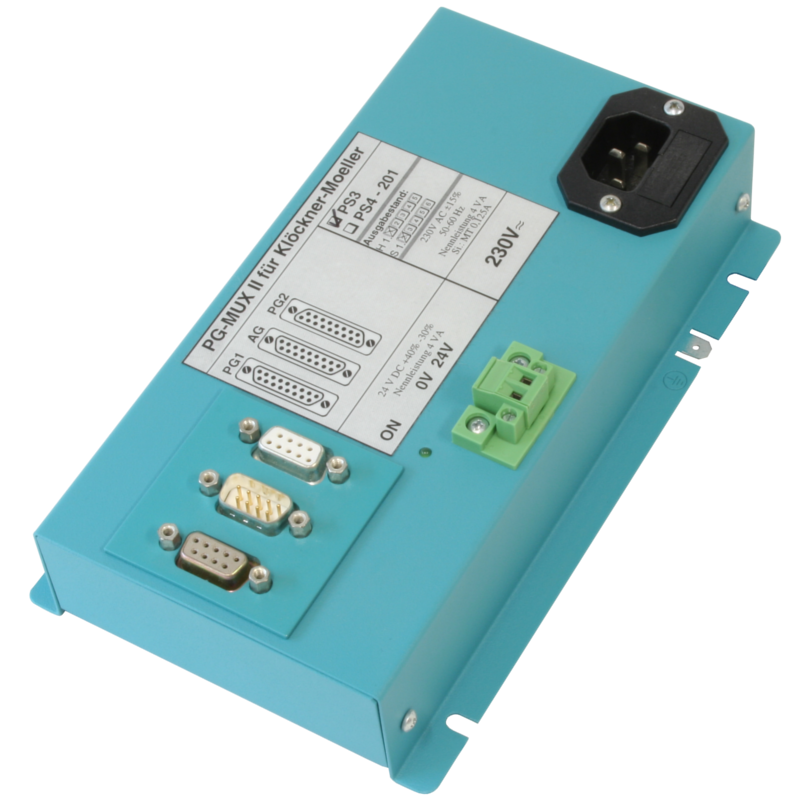

PG-MUX-II for Klöckner-Moeller PS3

Doubles PG-interface +++ HMI and PG parallel to PLC +++ Profi-device, as active ports

with PLC-specific connecting cable to PLC
and power cable

Features:

Devices are advanced versions of the world widely used PG-MUX
All connectors and controls on the front
Permanent checking of the device functions and power supply => restart at failure
Right away ONLINE with both interfaces to the PLC
All PD functions can be accomplished parallel by 2 PD’s

Features:

Devices are advanced versions of the world widely used PG-MUX
All connectors and controls on the front
Permanent checking of the device functions and power supply => restart at failure
Right away ONLINE with both interfaces to the PLC
All PD functions can be accomplished parallel by 2 PD’s
Provided PLC’s: PS 3 (no PS 4-201, this PLC has another hardware interfaces)
No additional or specific adapters are needed
Connecting mechanics, pin assignment and the electrical data correspond to the PD/PLC-interfaces of the relevant PLCs
Capability of connecting on PD-side: 2 x AS511 (PD-protocol) / 1 x SINEC-L1-BUS (no master protocols, no cross traffic) + 1 x AS511
3m cable for PLC-connection included in delivery
Possible power supply: 230V AC or 24V DC
