TPA

PD- / PLC-Switcher


Coupling of one PLC to several PD’s or one PD to several PLC’s

  • Connecting mechanism, pin assignment and electrical data match the control’s specifications
  • Applicable with all original and compatible programming devices
  • All connection- and operating controls frontal
  • Supply from the PLC or external

  • Connecting mechanism, pin assignment and electrical data match the control’s specifications
  • Applicable with all original and compatible programming devices
  • All connection- and operating controls frontal
  • Supply from the PLC or external

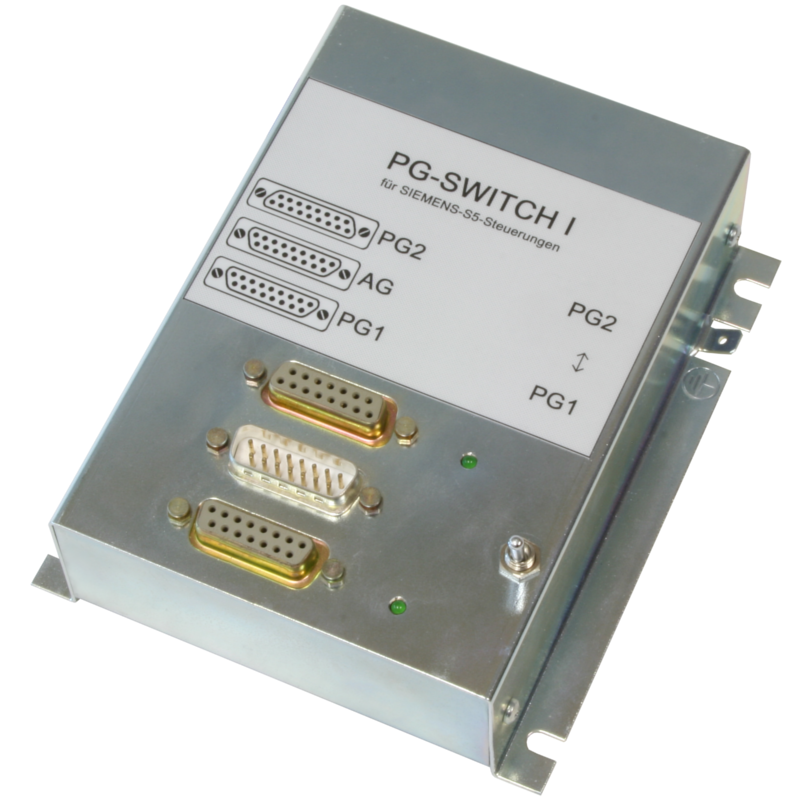

Interface switch for the S5
Produkbild

Your PD-interface of the S5-PLC is already occupied with a panel and you should accomplish program modifications without removing the panel? No problem, connect a device if the PG-Switch-family one-time to the PLC and then connect the panel and also your PC to the device. With a toggle switch (PG-Switch-I) you select the pc or panel to communciate with the PLC. The selection on a PG-Switch-II will be driven via the 24V-controll input. The PG-Switch-III has an automatic detection. The panel is connected to the device and can communicate to the PLC. You connect your PD/PC to the device and it switches automatically, so you can communicate. After plug off the PD/PG the device switches back, so the panel is connected to the PLC.

Interface-switch for PD/PC
Produkbild

You have to work with more PLC-devices, but no pleasure to switch on/off? No problem, you connect a device of the AG-Switch-family to the PLC-devices and your PD/PC and you will be able to communicate to both PLCs. The selection which PLC you make for AG-Switch-I via toggle switch and for the AG-Switch-II via 24V-controll input.

Supply voltage: 5V DC
Power consumption: 1 watt
Display: LED-display for aktiv port
Handling/Configuration: toggle or rotary switch for port selection
Interfaces:
to the PLC:
1 / 2 / 4 x TTY/20mA current loop (switch passiv, PLC aktiv)
to the PD/PC:
1 / 2 x TTY/20mA current loop (100 % mechanically and electr. compatible)
Operating temperature: 0 - 55°C
Case: EMC-dense metal case with mounting flange
Dimensions: 135 x 110 x 50 mm
Scope of delivery:
PG-Switch
Cable 15pin 1to1
Power connector 2pins big

accessories:

9371-24
Power connector 2pins big

connector plug lockable by jack with screws
