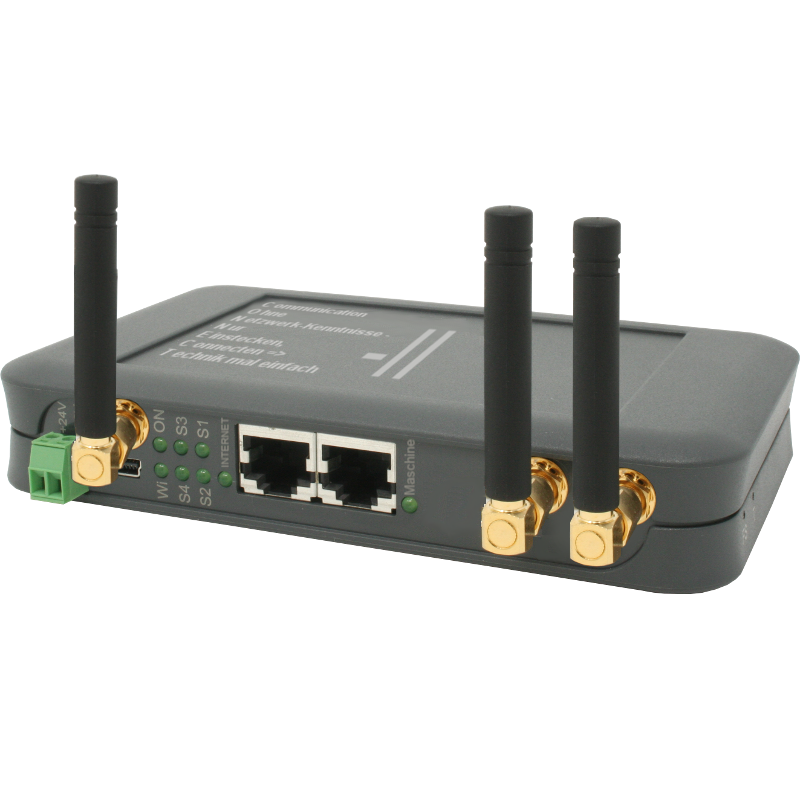

CONNECT-II-LTE-Remote-Access
Quad Core Desktop device / remote support 1000MBit Ethernet + WIFI (2.4 / 5.0 GHz) + LTE
Quad Core-processor
10 / 100 / 1000 MBit
WIFI (2.4 / 5.0 GHz)
Connects LAN + WIFI devices
No IT-skills required
Power-supply with 24V DC
LTE
Table-device
Automatic-mode
Main downloads
Versionstory
Other downloads
Documentation
Extension
Support-videos
|
CONNECT - CONNECT-LTE - CONNECT-HS - CONNECT-II - CONNECT-II-LTE - CONNECT-CONTROL-EU - CONNECT-CONTROL-WORLD
|
|||||||
| Power supply |
+24V DC ±20% or
5V over USB-power-adapter |
only +24V DC ±20%
|
only +24V DC ±20%
|
only +24V DC ±20%
|
only +24V DC ±20%
|
9 - 30V DC
230V AC with power cord |
9 - 30V DC
230V AC with power cord |
| Power |
2W
|
12W
|
1.2W
|
9W
|
19W
|
7W
|
7W
|
| LAN-speed |
10/100 MBit
|
10/100 MBit
|
10/100 MBit
|
10/100/1000 MBit
|
10/100/1000 MBit
|
10/100 MBit
|
10/100 MBit
|
| USB-port |
USB 2.0
|
---
|
USB 2.0
|
USB 3.0
|
USB 3.0
|
USB 2.0
|
USB 2.0
|
| Internet over LTE |
---
|
✓
|
---
|
---
|
✓
|
✓
|
✓
|
| Internet over LAN |
✓
|
✓
|
✓
|
✓
|
✓
|
✓
|
✓
|
| RS232-port |
---
|
---
|
---
|
---
|
---
|
✓
|
✓
|
| RS485-port |
---
|
---
|
---
|
---
|
---
|
✓
|
✓
|
| MOD-bus TCP and Serial |
---
|
---
|
---
|
---
|
---
|
✓
|
✓
|
| Digital_In (0-3V) |
---
|
---
|
---
|
---
|
---
|
✓
|
✓
|
| Digital_In (0-30V) |
---
|
---
|
---
|
---
|
---
|
✓
|
✓
|
| Analogue_In (0-24V) |
---
|
---
|
---
|
---
|
---
|
✓
|
✓
|
| Digital_Out Open-Collector (30V, 250mA) |
---
|
---
|
---
|
---
|
---
|
✓
|
✓
|
| Digital_Out SPST-relais-out (40V, 4A) |
---
|
---
|
---
|
---
|
---
|
✓
|
✓
|
| S5-PLC over cable |
S5-LAN++ (Art.Nr.:9359-LAN)
|
S5-LAN++ (Art.Nr.:9359-LAN)
|
S5-LAN++ (Art.Nr.:9359-LAN)
|
S5-LAN++ (Art.Nr.:9359-LAN)
|
S5-LAN++ (Art.Nr.:9359-LAN)
|
S5-LAN++ (Art.Nr.:9359-LAN)
|
S5-LAN++ (Art.Nr.:9359-LAN)
|
| S5-PLC over WIFI |
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
|
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
|
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
|
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
|
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
|
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
|
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
|
| S7-PLC (PPI/MPI/DP) over cable |
S7-LAN (Art.Nr.: 9352-LANCON)
|
S7-LAN (Art.Nr.: 9352-LANCON)
|
S7-LAN (Art.Nr.: 9352-LANCON)
|
S7-LAN (Art.Nr.: 9352-LANCON)
|
S7-LAN (Art.Nr.: 9352-LANCON)
|
S7-LAN (Art.Nr.: 9352-LANCON)
|
S7-LAN (Art.Nr.: 9352-LANCON)
|
| S7-PLC (PPI/MPI/DP) over WIFI |
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
|
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
|
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
|
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
|
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
|
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
|
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
|
| S7-PLC (PN) over cable |
direct at device
|
direct at device
|
direct at device
|
direct at device
|
direct at device
|
direct at device
|
direct at device
|
| S7-PLC (PN) over WIFI |
ALF-UA (Art.Nr.: 9352-ALF-UA)
|
ALF-UA (Art.Nr.: 9352-ALF-UA)
|
ALF-UA (Art.Nr.: 9352-ALF-UA)
|
ALF-UA (Art.Nr.: 9352-ALF-UA)
|
ALF-UA (Art.Nr.: 9352-ALF-UA)
|
ALF-UA (Art.Nr.: 9352-ALF-UA)
|
ALF-UA (Art.Nr.: 9352-ALF-UA)
|

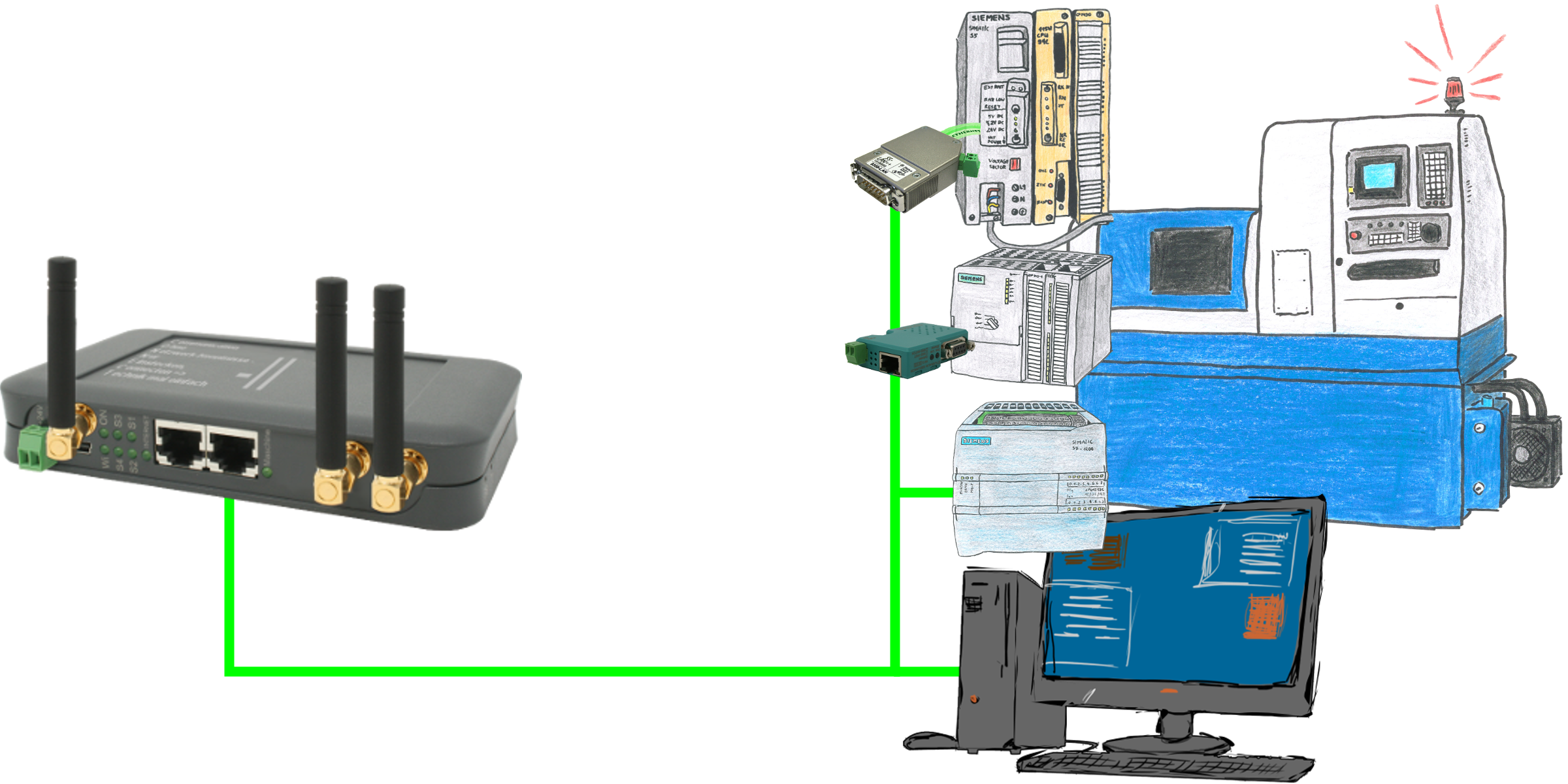

| further LAN-client over cable |
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA) |
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA) |
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA) |
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA) |
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA) |
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA) |
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA) |

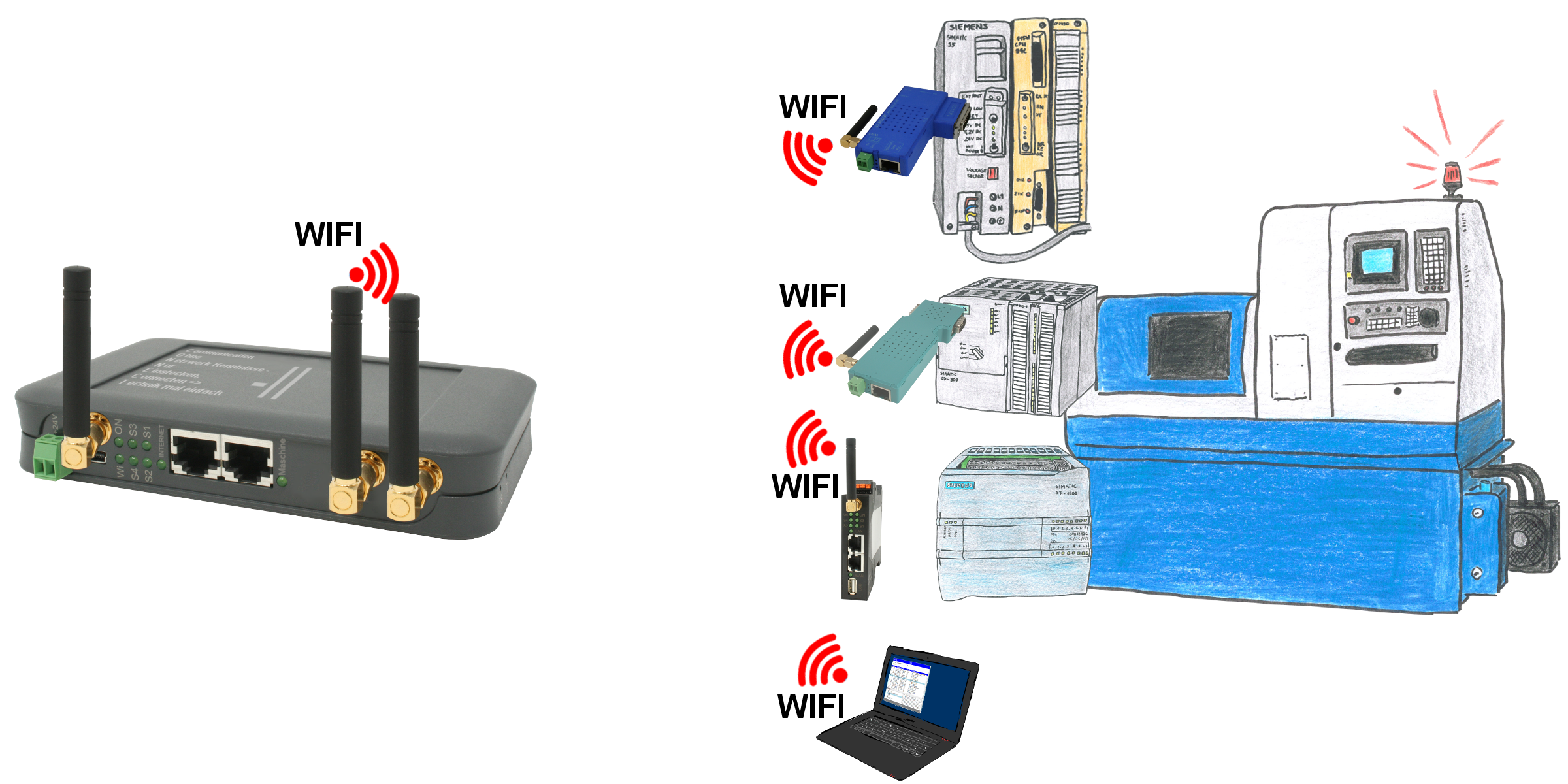

| further WIFI-client |
direct at device
|
direct at device
|
direct at device
|
direct at device
|
direct at device
|
direct at device
|
direct at device
|
