TPA

S5toMPI


Connects the S5-PLC with a S7-PLC

  • Bi-directional exchange of data blocks
  • Automatic protocol- and baud rate detection
  • Power supply from the S7-PLC or external
  • Galvanic separation 1000V
  • Double-sided connected cable
  • Short plug to PLC
  • Firmwareupdate via internet for free
  • Easy handling without programming the S5/S7
  • Incl. 9 pol. adapter for connecting a S5-interface cable
  • Optional is a PG-COM or PG-UNI cable necessary

  • more...

  • Bi-directional exchange of data blocks
  • Automatic protocol- and baud rate detection
  • Power supply from the S7-PLC or external
  • Galvanic separation 1000V
  • Double-sided connected cable
  • Short plug to PLC
  • Firmwareupdate via internet for free
  • Easy handling without programming the S5/S7
  • Incl. 9 pol. adapter for connecting a S5-interface cable
  • Optional is a PG-COM or PG-UNI cable necessary
Coupling of S5-PLC with S7-PLC via PD-interfaces

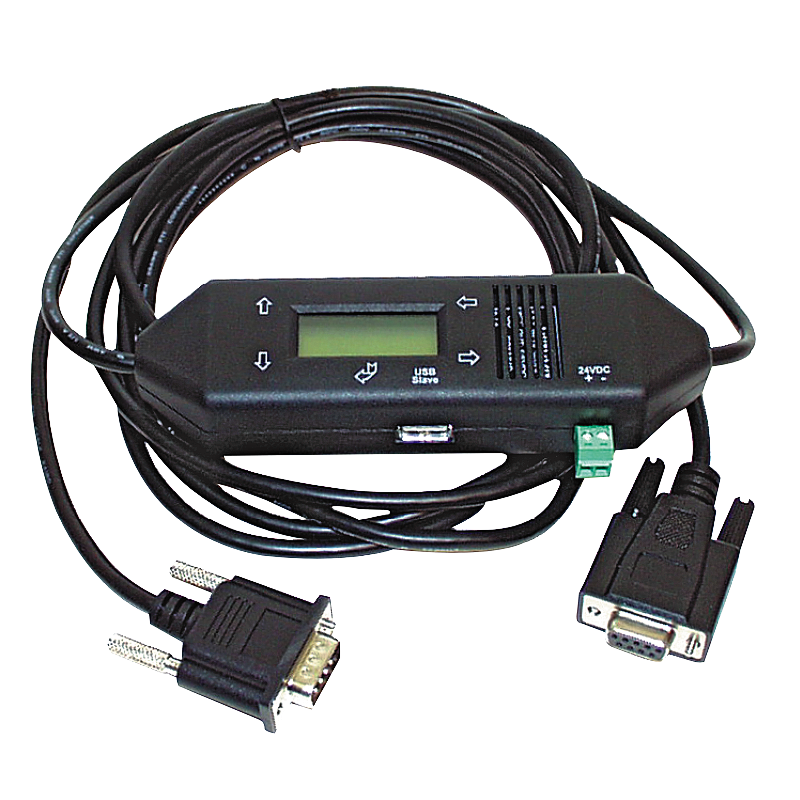

Produkbild
You still have an installation in your machinery which is equiped with a S5-PLC and the modification to S7 isn’t profitable, but the central control needs the manufacturing data? No problem, connect the S5-PLC via the S5toMPI to your central control and the S5toMPI ensures that the data will be accordingly interchanged. Both sides can be active, but also only one. Both is configurable.
Supply voltage: 24V DC +/- 20%
Power consumption: 2,5 watt
Display: double lined LCD-display
Handling/Configuration: Kabelmanager-Software
keypad on the back
Interfaces:
to the PLC:
PPI/MPI/Profibus interface: 9,6 KBd - 12 MBd
to the PD/PC:
RS232: 9,6 KBd - 115,2 KBd
USB 1.1 for cable type A <-> A
Operating temperature: 0 - 55°C
Case: ABS-plastic case
Dimensions: 146 x 41 x 29 mm
Scope of delivery:
S5anMPI-cable
Power connector 2pins small

accessories:

9350-9-CHP
CheapConn Busconnector

for PROFIBUS
INFOMAIL
by e-mail
9350-9-CHP-CC
Option CheapConn for MPI

9350-9-CHP+9350-9-CHP-K already mounted
INFOMAIL
by e-mail
9350-9-CHP-K
Connecting cable MPIx to CheapConn

9-pins 1 : 1 plated-through with shield
INFOMAIL
by e-mail
9350-WAND
Wall-mounting

for MPI/PPI + MPI-II + MPI-USB
INFOMAIL
by e-mail
9352-24
Power connector 2pins small

cable coupling by screw-connector (small)
INFOMAIL
by e-mail
9391-HH
DIN-rail-holder for MPI/PPI

quick and easy assembling on the cap rail
INFOMAIL
by e-mail
9391.1
24V DC power-supply unit 625mA

Primary 110V - 240 VAC Euro+USA-plug
INFOMAIL
by e-mail

appropriate interface-cables:

9359
PG-COM-cable 3m

PC 9pins COM-port <=> PLC 15pins X4/X5 port
INFOMAIL
by e-mail
9359-2
PG-UNI-II-cable 3m

for PLC/CP/IP+ LED + metal case
INFOMAIL
by e-mail
9359-2.05M
PG-UNI-II-cable 5m

for PLC/CP/IP+ LED + metal case
INFOMAIL
by e-mail
9359-2.10M
PG-UNI-II-cable 10m

for PLC/CP/IP+ LED + metal case
INFOMAIL
by e-mail
9359-3
PG-UNI-cable 3m

for PLC/CP-IP - connection
INFOMAIL
by e-mail
9359-3.05M
PG-UNI-cable 5m

for PLC/CP-IP - connection
INFOMAIL
by e-mail
9359-3.10CM
PG-UNI-cable 0.1m special length

for PLC/CP-IP - connection
INFOMAIL
by e-mail
9359-3.10M
PG-UNI-cable 10m

for PLC/CP-IP - connection
INFOMAIL
by e-mail
9359.05M
PG-COM-cable 5m

PC 9pins COM-port <=> PLC 15pins X4/X5 port
INFOMAIL
by e-mail
9359.10CM
PG-COM-cable 0.1m special length

PC 9pins COM-port <=> PLC 15pins X4/X5 port
INFOMAIL
by e-mail
9359.10M
PG-COM-cable 10m

PC 9pins COM-port <=> PLC 15pins X4/X5 port
INFOMAIL
by e-mail
9359.15M
PG-COM-cable 15m

PC 9pins COM-port <=> PLC 15pins X4/X5 port
INFOMAIL
by e-mail

Variationen:

9352-S5-OP
S5toMPI/Profibus
DB-exchange from S5 to S7 over the PD-ports
INFOMAIL
by e-mail

Automatic-mode
