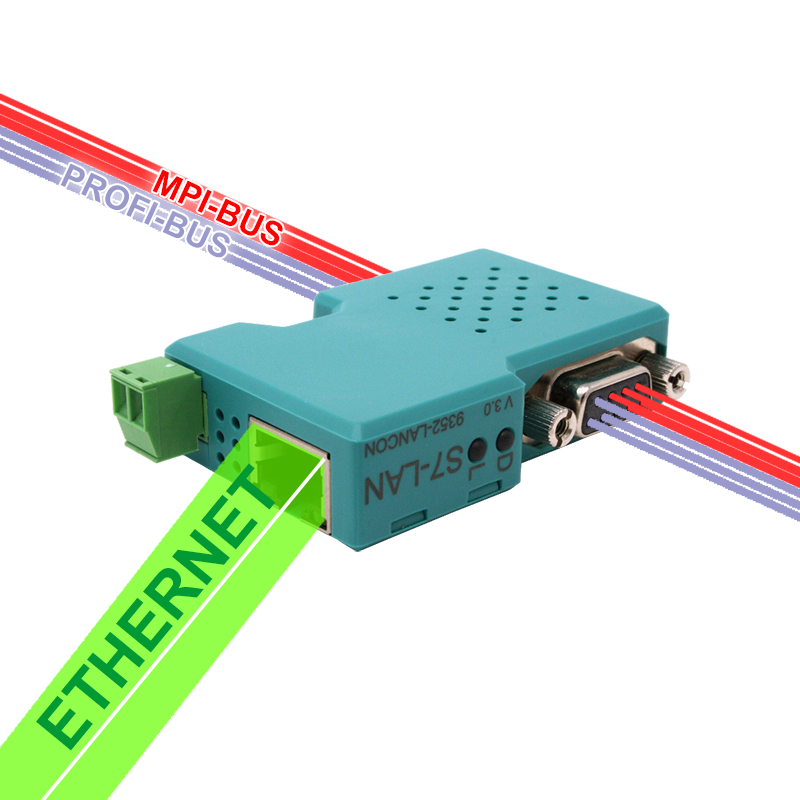

S7-LAN connector for Siemens S7 PLC controller

Novelty:

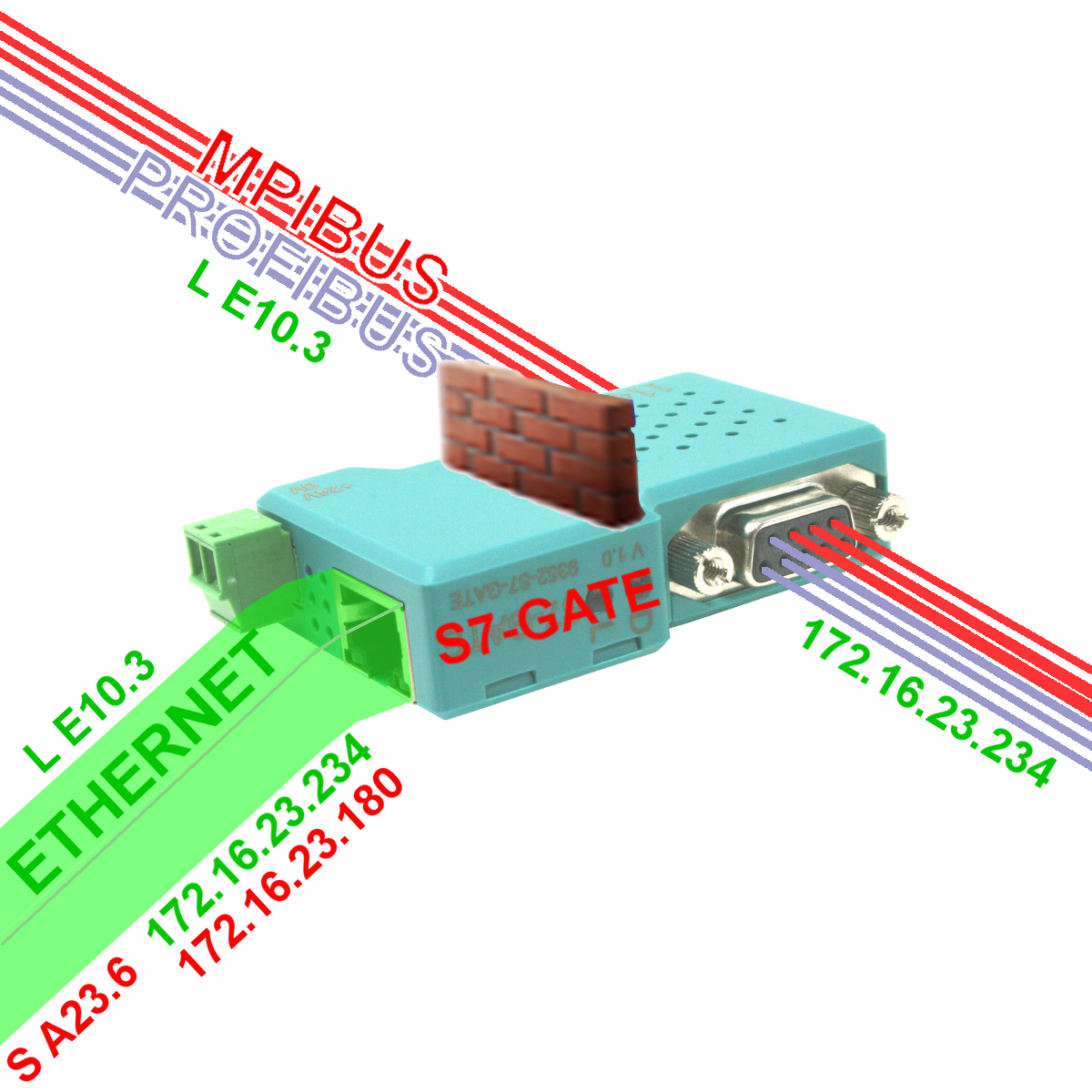

Variant with integrated access-protection LAN <=> bus-side as well as output of diagnostic-buffer in web-site

Networking of SIMATIC S7-PLCs (S7-200/300/400) without Ethernet-CP/CP-communicationprocessor standard-TCP/IP without changes to the hardware-configuration or PLC-program.
Compact and robust Ethernet-converter (MPI / PROFIBUS / PPI - Ethernet).
Similar to "IBH Link S7++" (IBH-Link-S7-PP, 20266), "NETLink PRO Compact", "ACCON-NetLink-PRO compact" or "NL 50-MPI".
Integration of the "old system" into the world of "new and modern systems" using S7-TCPIP with PUT/GET function.
By plugging the module onto the PPI, MPI or Profibus, this connection becomes an Ethernet port for the Industrial IoT with significant cost savings.
Thanks to the integrated multiplexer, this connection becomes a port for all supported protocols. Simultaneous and parallel communications such as WinCC, PUT/GET from S7 PLC, production-data acquisition, S7-communication-drivers and programming-packages such as Step7, TIA Portal or PG2000.

Advantages:

• Simple and fast networking
• Multiplexer for all protocols
• Integration as S7 controller with CP 343-1
• Access to S7 data via S7-TCP/IP with PUT/GET
• Module search without "annoying" network-card-selection
• Free virtual-com-port for non-Step7-applications
• Qualified support
• Comprehensive documentation
• No SimaticNet required for operation/configuration
• STEP7 64-bit support
• Integration into the TIA-Portal
• Supports DHCP

Connectivity:

• S7-LAN module directly connected to the PC/device with a patch cable
• S7-LAN module directly connected to the PC/device with a crosslink cable
• S7-LAN connected to the PC/device via a switch or hub

Features:

• S7-Panel (for e.g. KTP, TP, Unified Panel) on S7-200 (1. generation), S7-300, S7-400
• every SIMATIC-S7 (S7-200/300/400) into Network

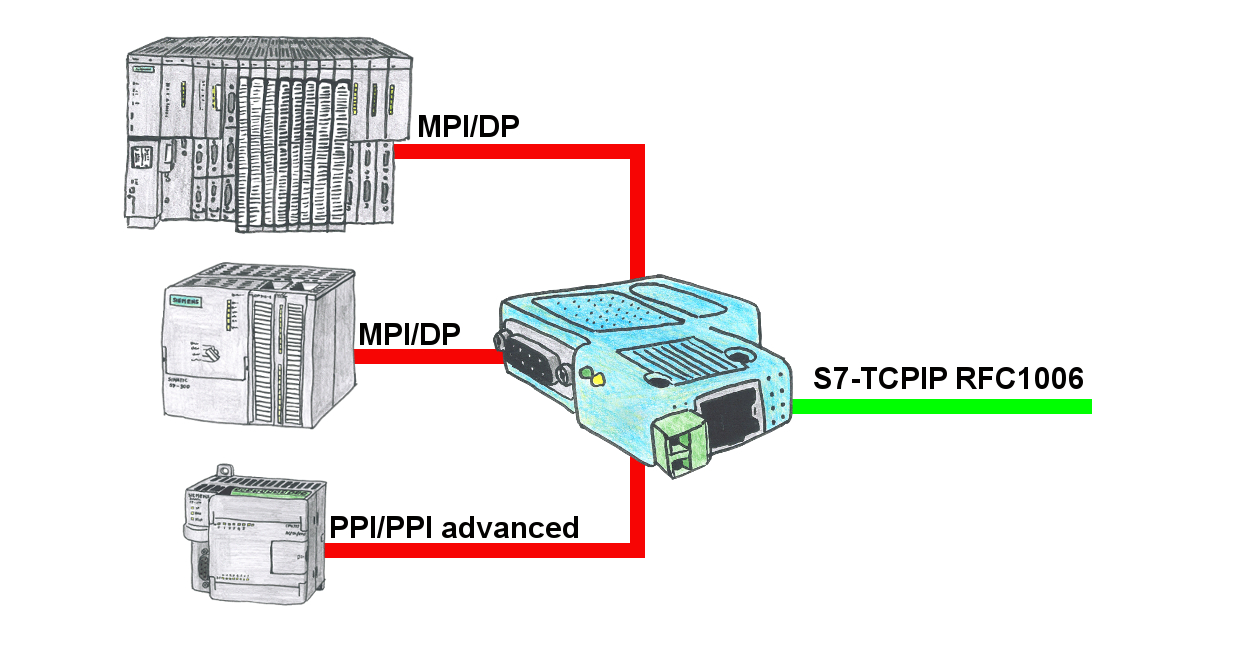

• SIMATIC S7-protocols (S7Comm and ISO-on-TCP (RFC 1006))
• Ethernet-RJ45 socket with 10/100 MBit/s with autonegotiation
• Commissioning is very simple: plug it into the PPI, MPI-bus or PROFIBUS of the SIMATIC S7 controller and start working
• Integrated multiplexer (visualization, programming, remote maintenance and simultaneous use of all protocols without special configuration), also via standard router
• Parallel use of the channels (simultaneously 8 x channels for programming, visualization and remote maintenance can be used directly/routed)
• Supported controllers (S7-200, S7-300, S7-400, FM modules, Sinamix, Sinumerik, MicroMaster and other drives/converters (such as SEW-EURODRIVE converters)
• Supported data areas (inputs, outputs, markers, data blocks, timers and counters)
• Supported scenarios (programming adapter for S7 programming packages, access to the S7 data via S7-TCP/IP with PUT/GET and routing of SIMATIC S7 controllers as well as time server for time and also bus diagnostics)
• Supported platforms (S7-TCPIP RFC1006 communication platform-independent, communication driver/configuration tool TIC for Windows XP, Win7/8/10/11)

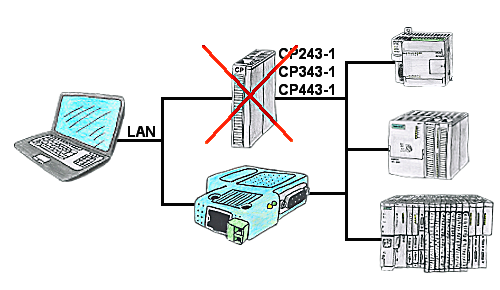

• Replacement for CP343-1/443-1 or IE/PB-Link, connected directly to MPI or Profibus (inexpensive)
• with Profibus for S7-300 faster than CP343-1

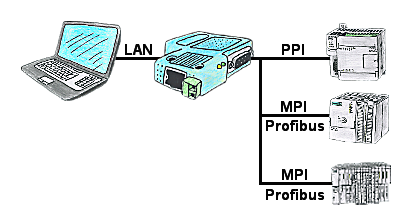

• PG/PC-adapter for Simatic-Manager Step7 and TIA-portal
• fastest installation into Network (less than 3 minutes)
• automatic detection of baudrate
• automatic usement of cyclic bus-parameter-protocols
• no bus-knowledge required / automatic-protocol and baud-rate detection
• download TIC-driver for STEP-7/TIA-Portal

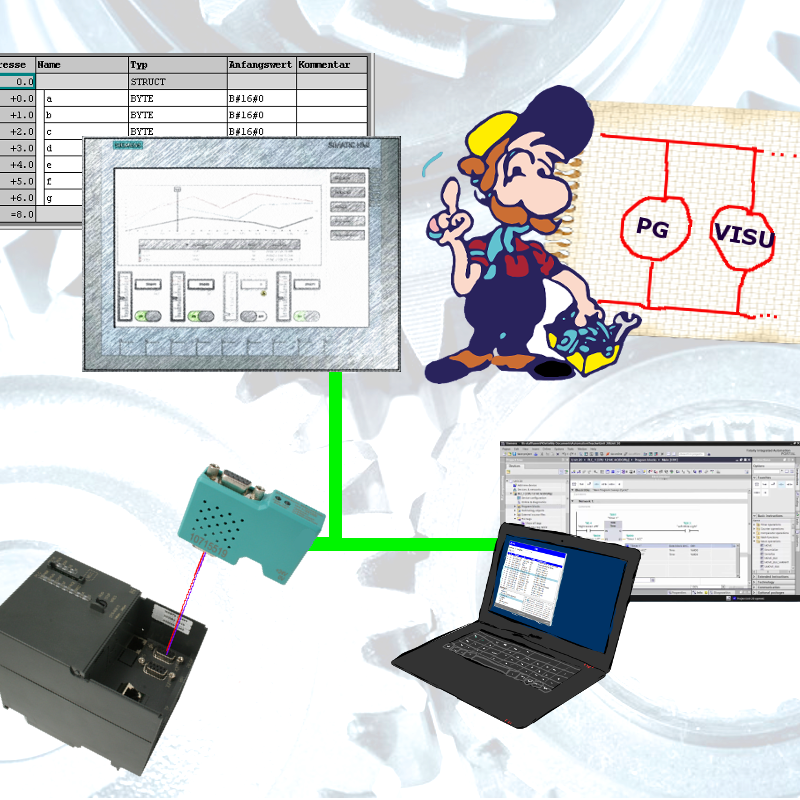

• Programming and visualization at the same time (8 S7-connections (direct / routed) at the same time)
• compatible to S7-TCP/IP RFC1006, WinCC (flex), OPC UA with Universal communication Industry 4.0, the IP-S7LINK SDK as well as all common OPC-servers
• no HW-Config change necessary
• no change of PLC-software necessary
• including Classic OPC-DA-Server-lite (max. 100 variables)
• with PG-diagnostic-port (occupied slot with 9pin PG-port free again)
• DPV1-master of class 2 and supports all functions that a PG supports:
• Diagnosis, configuration and programming of controllers (via software such as Simatic-Manager, TIA-Portal)
• Diagnosis and configuration of DP-slaves (via software such as Starter)
• active module, no influencing other bus users in the system

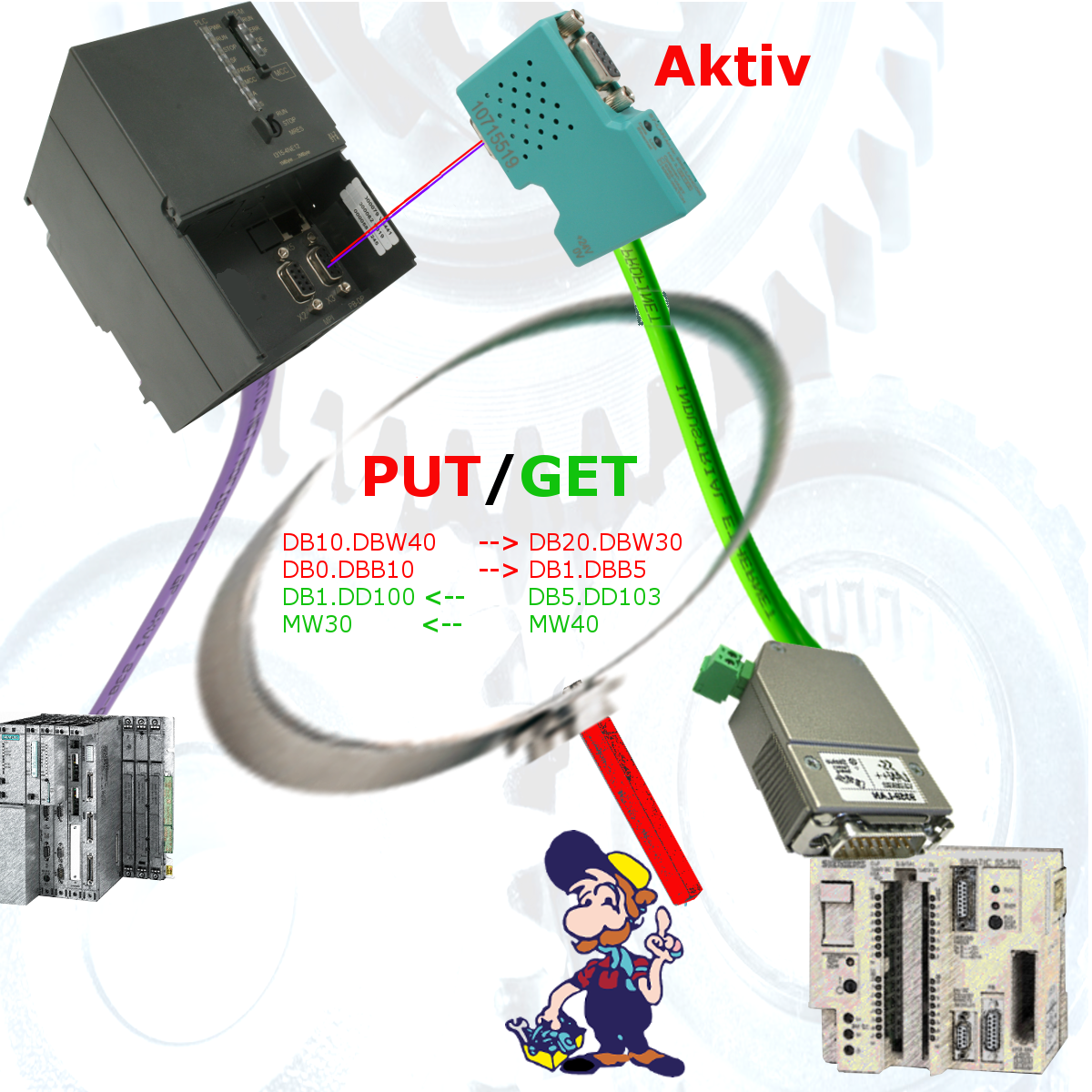

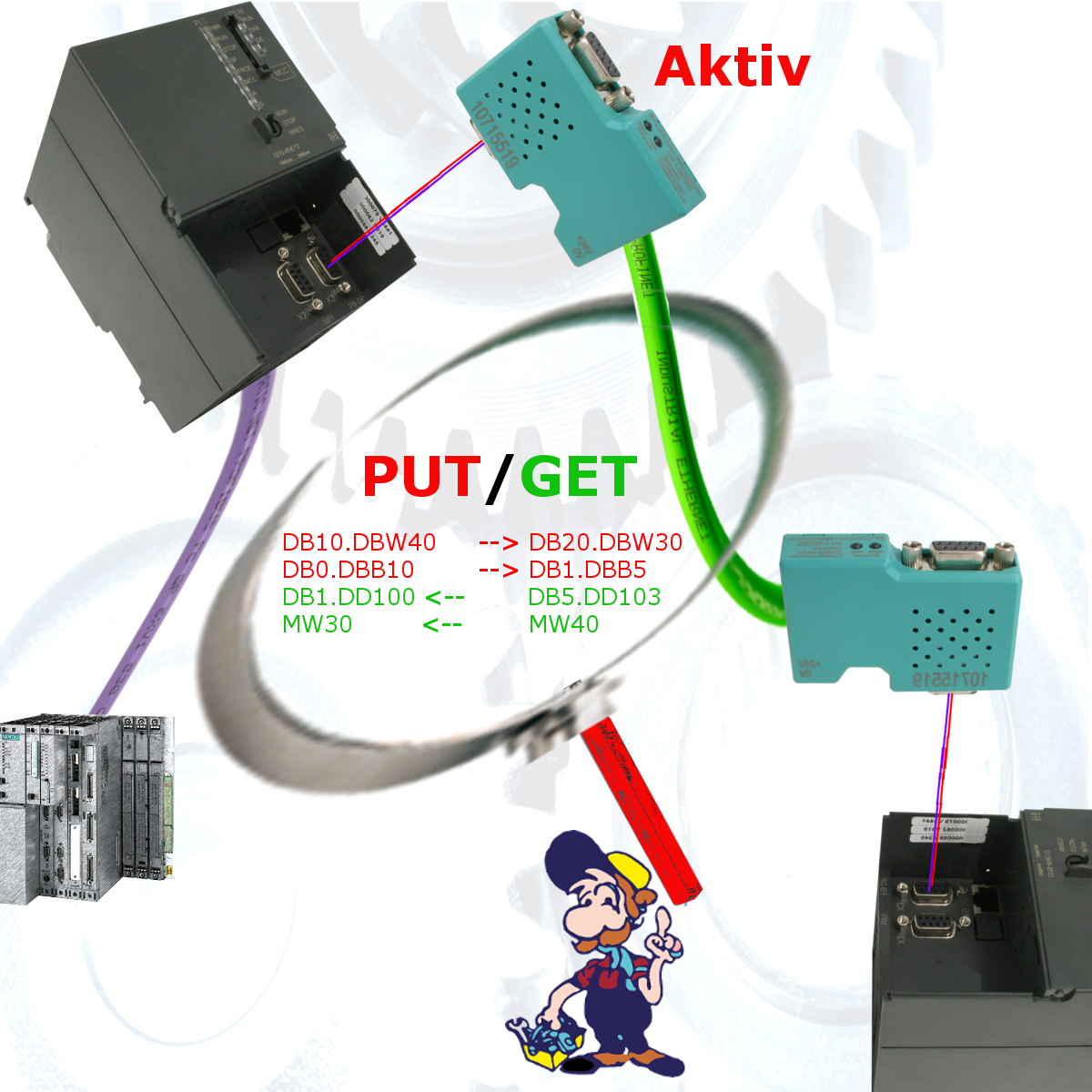

• active PUT/GET (in module integrated) replaces expensive CP´s for PLC-couplings
• Supply from S7-PLC or 24V DC external
• CE/EMC compliant design
• Scope of delivery (TIC driver, module itself and quick start guide)
• Search for modules across all Network-cards (no Network-card-selection as with other providers)

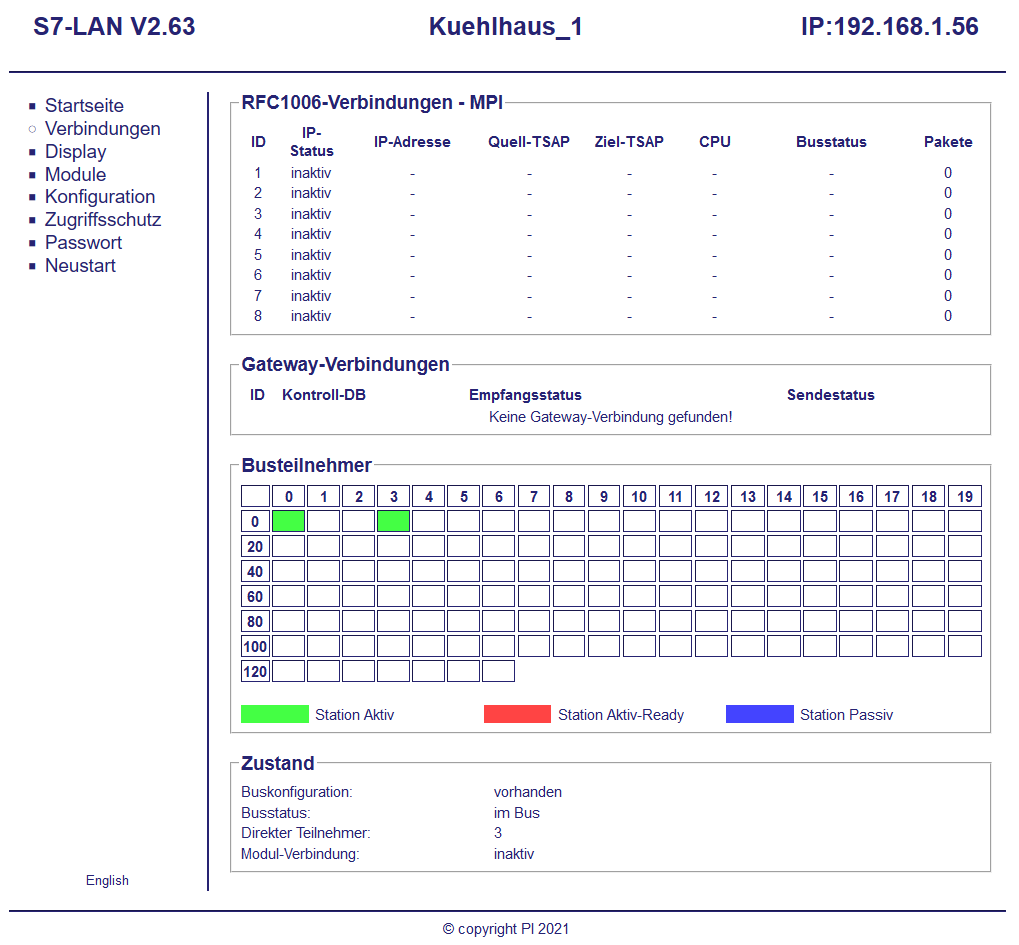

• Variable status in web interface
• RFC1006 connection status
• PLC-time via PG-protocol
• TCPIP-device writes/reads DB in S7-PLC
• Bus-diagnostics (output of error-counters, spikes)
• virtual COM-port-driver for other serial S7-applications

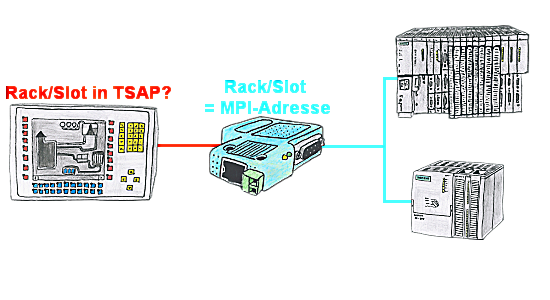

• Standard HMI-applications can read/write data via RFC1006 and the module

Applications:

• Operational data collection, SCADA of non-networkable controllers
• KTP-panel to S7-PLC with MPI-/Profibus-interface

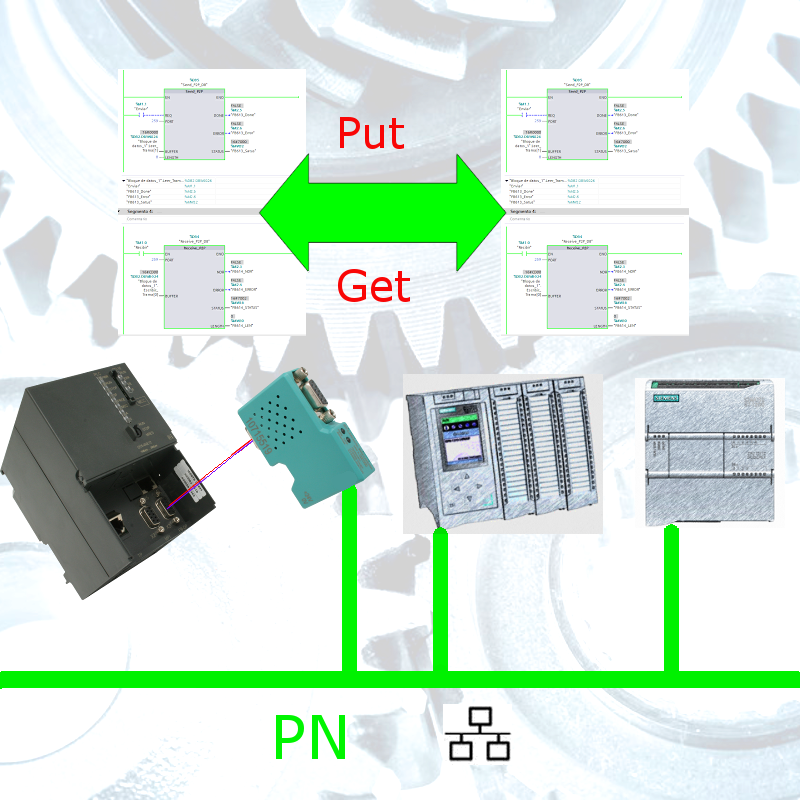

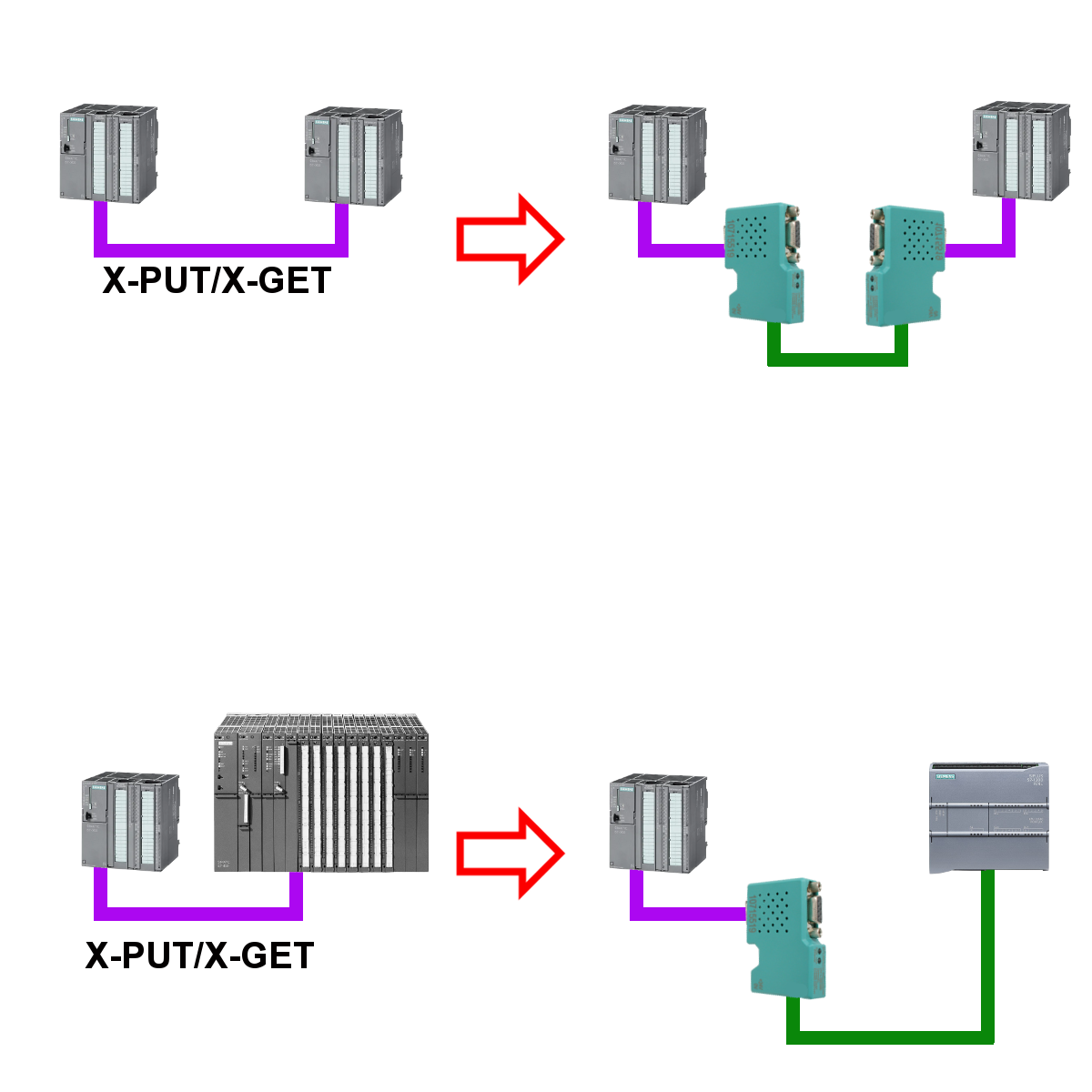

• PUT/GET from S7-1500/1200/300/400 (PN-CPU or with ethernet-CP) with specified and unspecified connection

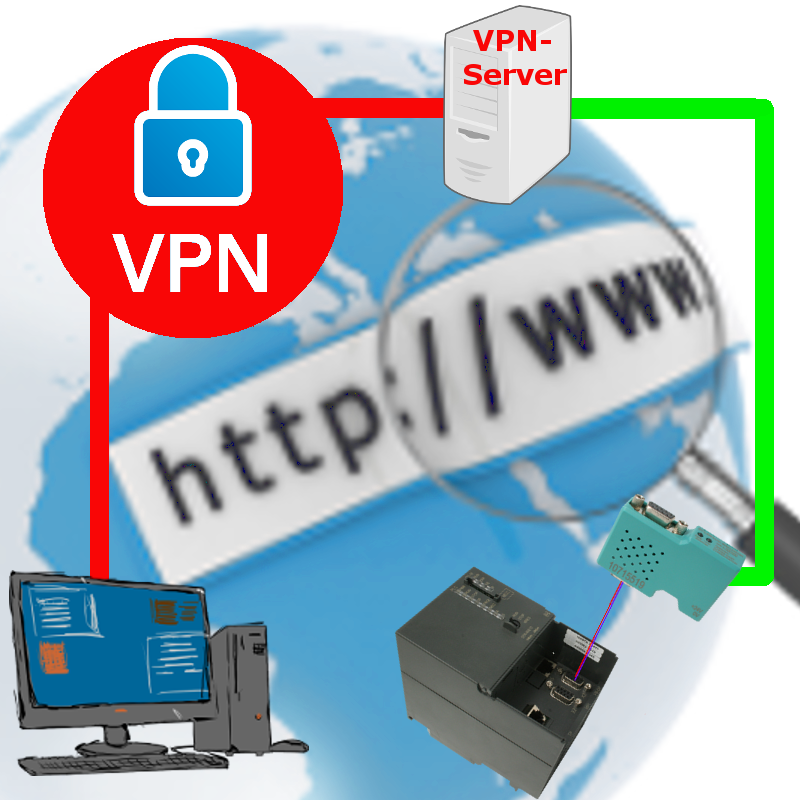

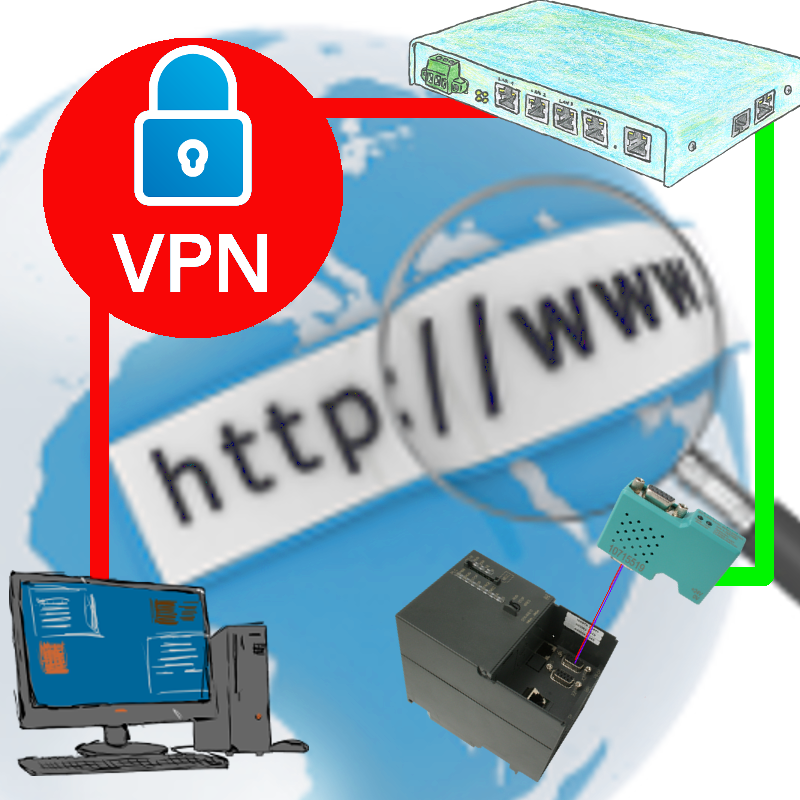

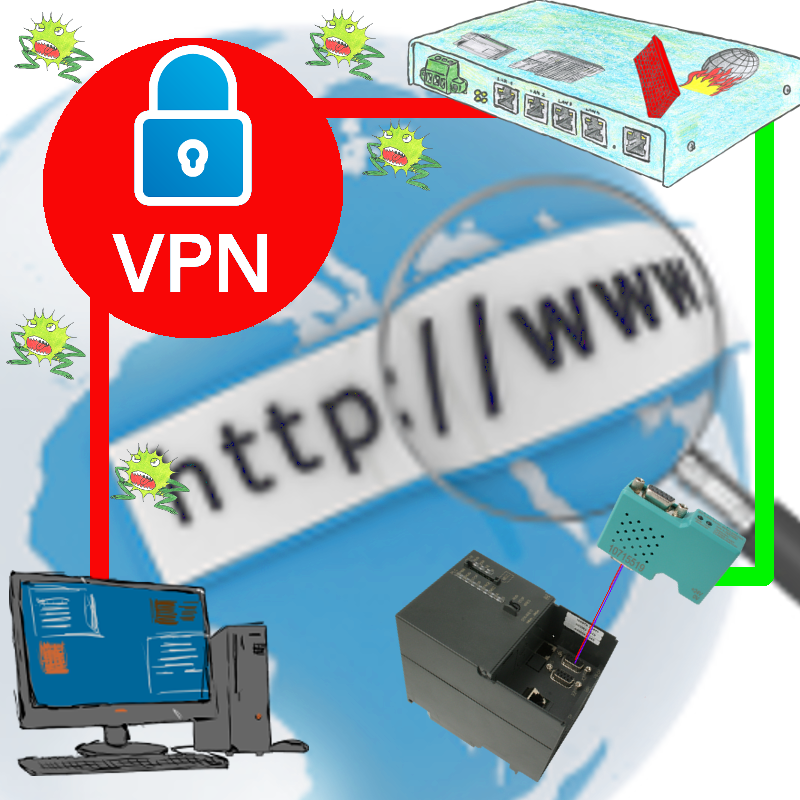

• VPN(Virtual Private Network)-remote-maintenance, maintenance of the PLC via the Internet
• cyclic time reading from NTP-server and setting in the connected PLC

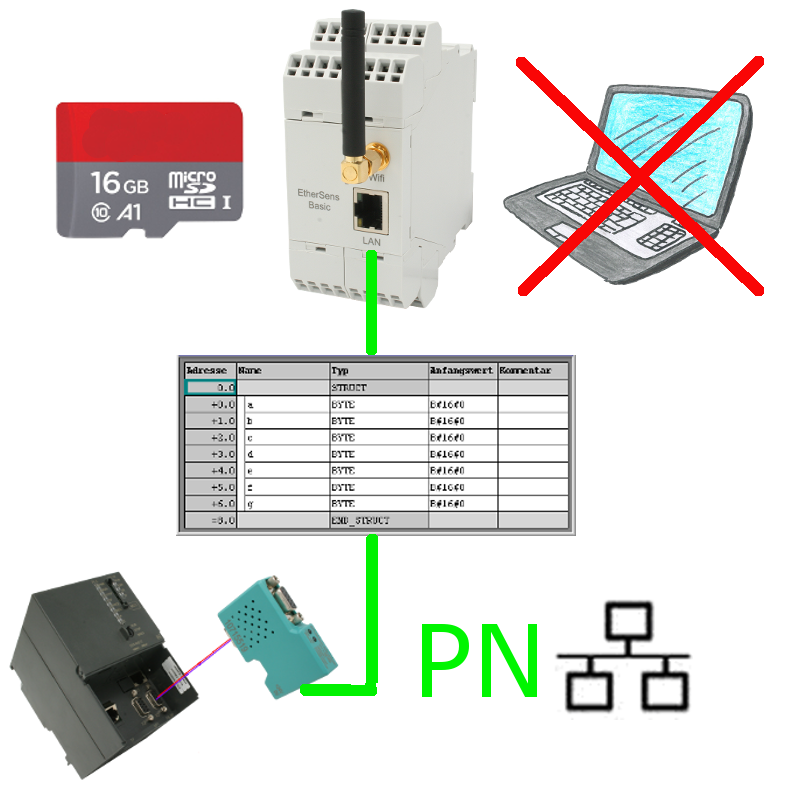

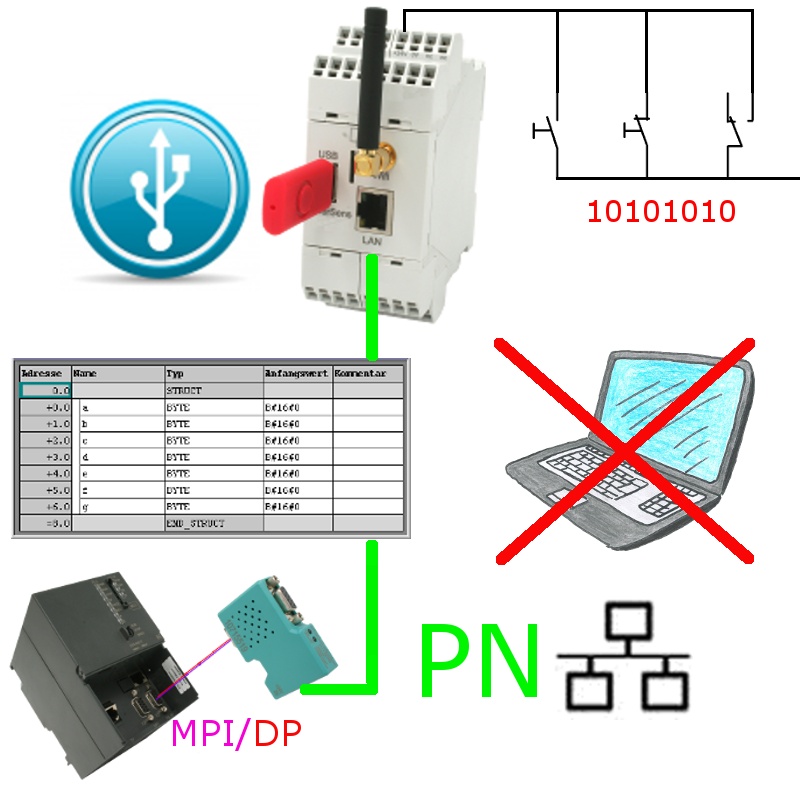

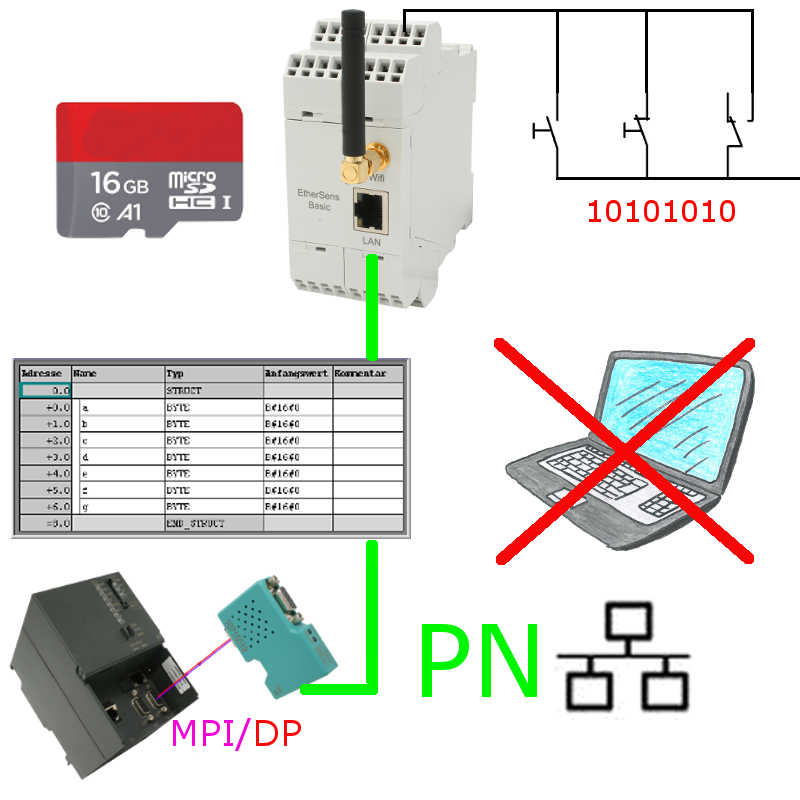

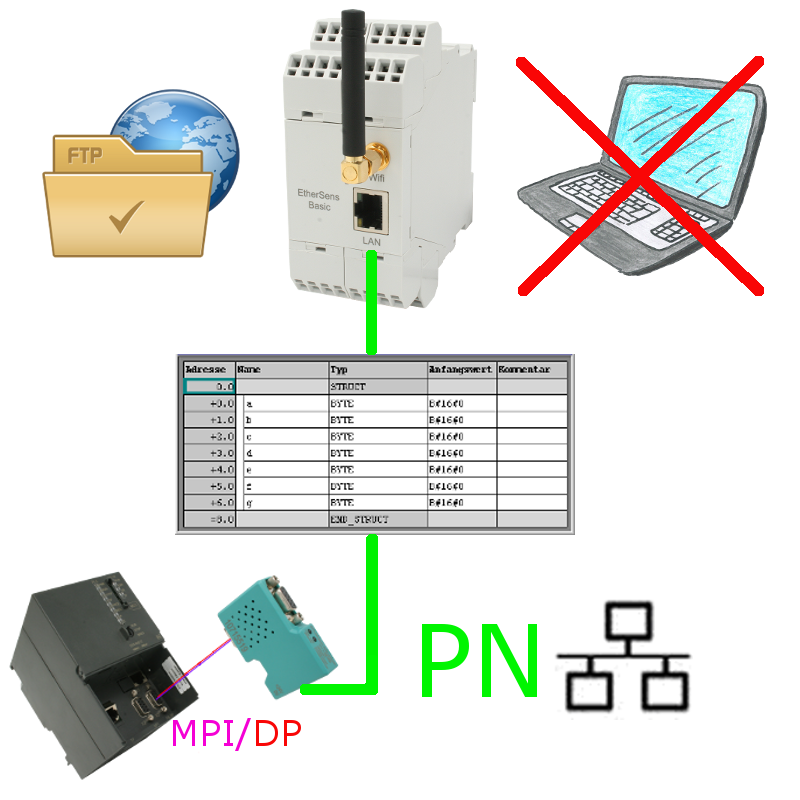

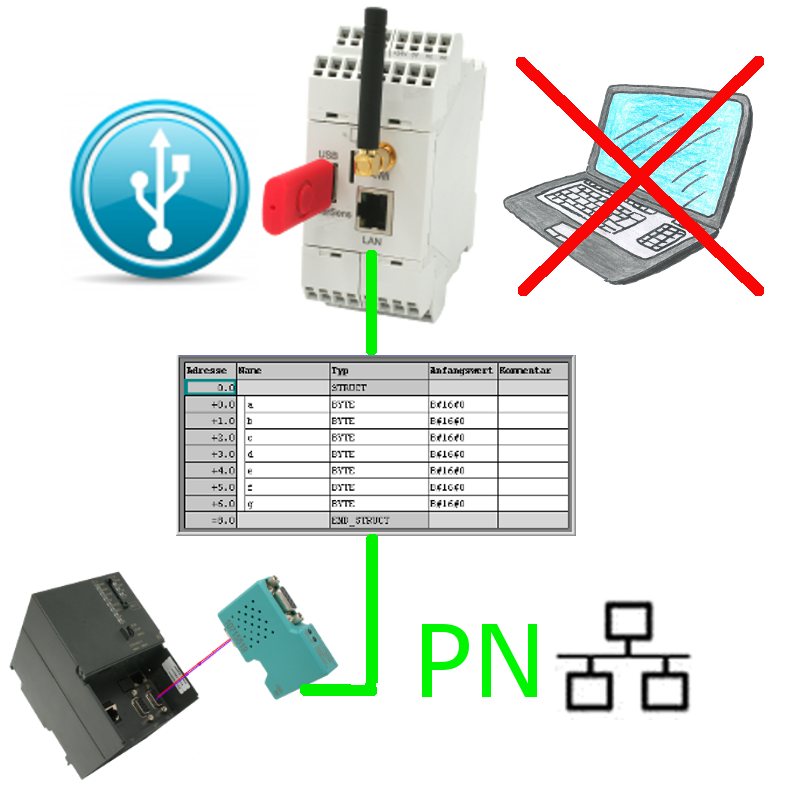

• coupling with DB-transfer to S7-LAN, S7-Gateway, S7-CP, S5-LAN++ or also S5-Gateway

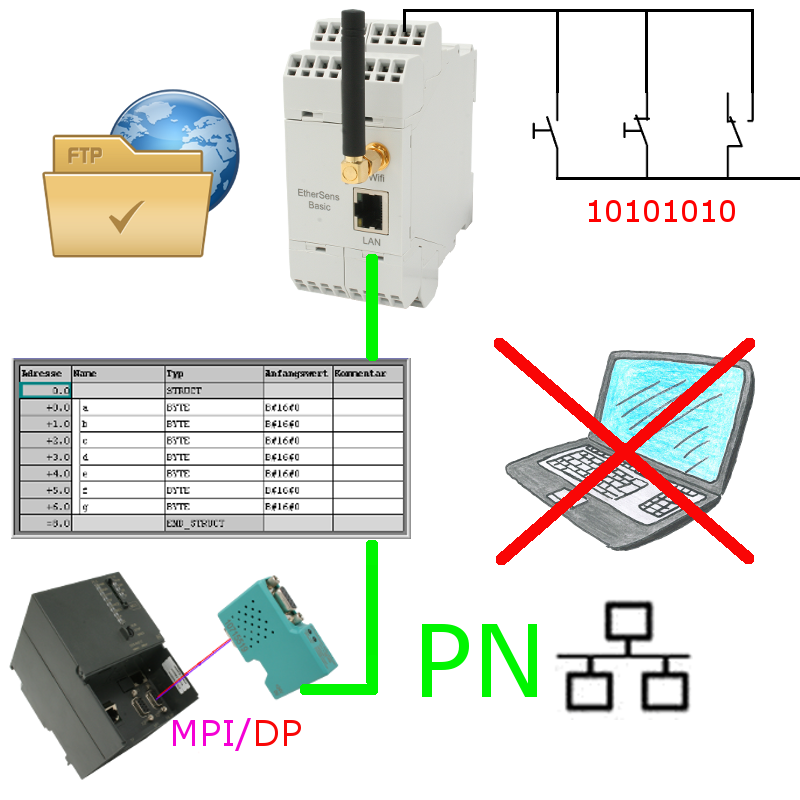

• any TCP-device writes/reads DBs in the S7-300/400 controller
• monitor variables in the WebServer without a Step7 programming-package
• analysis option of the connected bus-system with spikes- and errors-counter
• Parameterization of field devices and drives (DPV1)
• With IP-S7-Link-DLL high-level languages-access

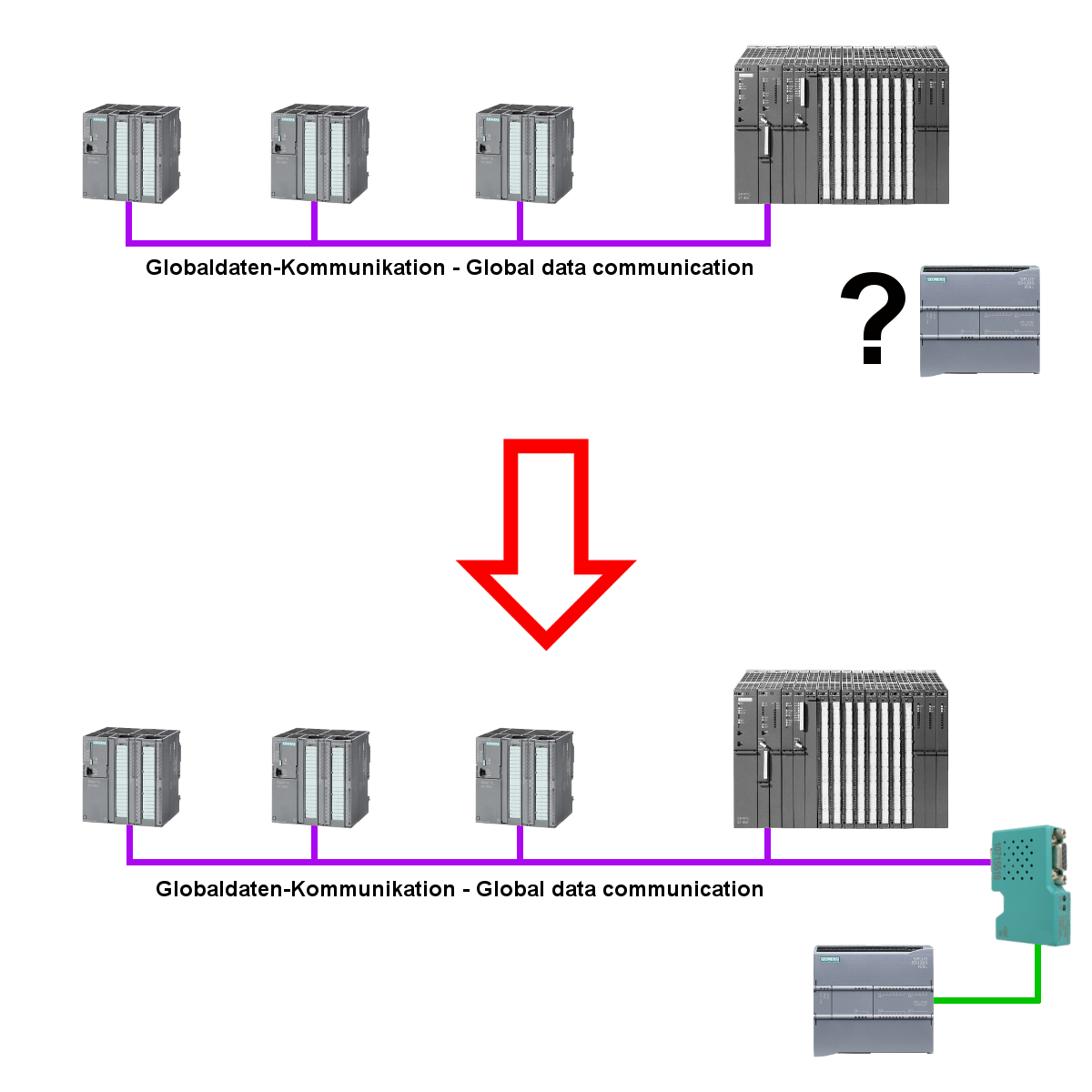

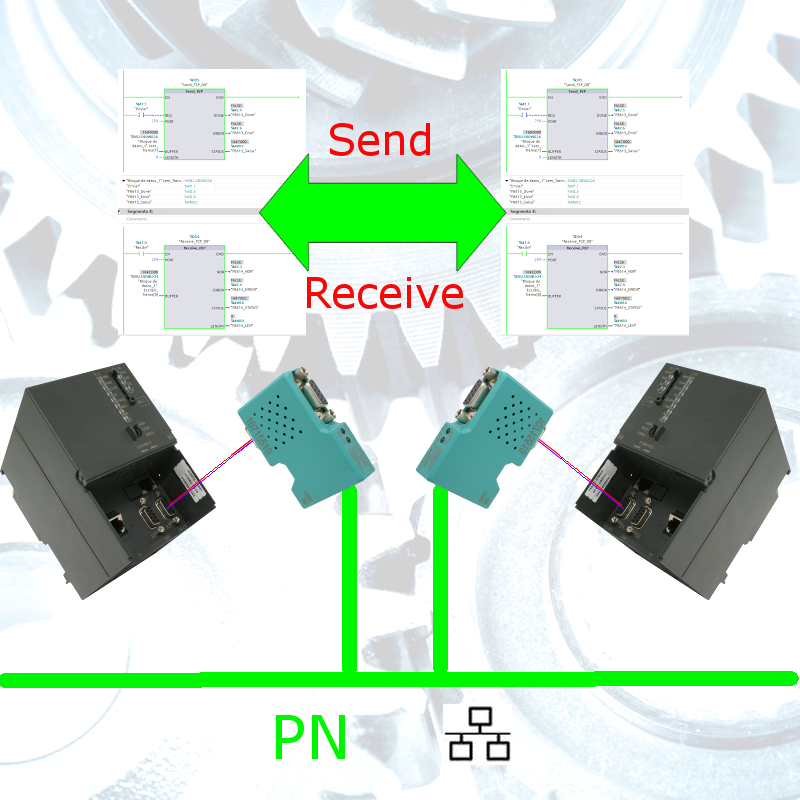

• PLC-PLC-communication (regardless of subnet boundaries, prolongation MPI/DP-bus over network)

TIC-(Totally Integrated Communication)-driver for Step7/TIA-Portal for Win XP/VISTA/7/8/10/11 32/64 Bit:
TIC firmware / configuration-tool / Step7-/TIA-driver

Product overview:

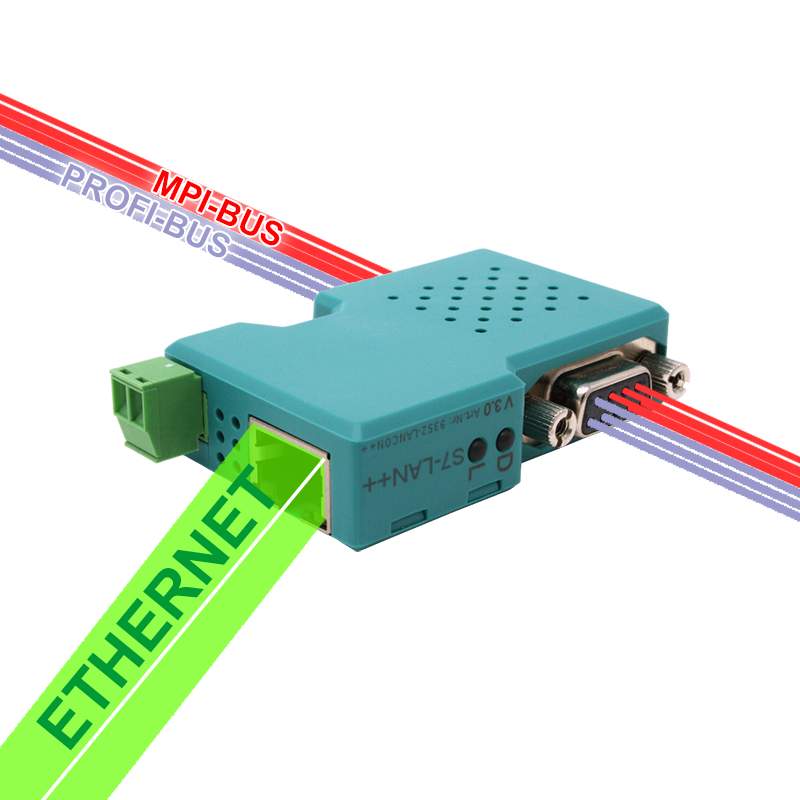

S7-LAN is a reliable and handy S7-network-adapter for PPI-,MPI- and PROFIBUS. Designed for 24/7-operation. The compact design in the PROFIBUS-connector-case and the power supply directly from the MPI/DP-port of the CPU allow to be connected a PLC to the network in less than 3 minutes.
bus protocols/bus profile, incl. baudrate and HSA are recognized independently and automatically and configured.
HMI-devices, for e.g. actual panel-series, as well as any other S7-Ethernet device, direct connect per S7-TCP-IP.
With TIC-driver (configurations-tool and driver) from download-area without changes on the project of Siemens TIA, Simatic Step7 Manager and WinCC-projects communication.
Another advantage is the easy handling of the S7-LAN. The convenient configuration is carried out directly in STEP7 or the PG/PC-interface-dialog. The detection of whether the S7-LAN is connected to a 10 MBit or 100 MBit network takes place automatically. Power is supplied directly from the MPI / DP interface. The connection to passive participants or VIPA-PLC is possible via the integrated 24V-plug.
The S7-LAN is connected to the bus-socket of the PLC and via the hub or directly to the PC. Then install the TIC-driver on the PC. Assign the IP-address with the TIC-configuration-program and go ONLINE. The installation process is completed so quickly.

Configuration:

S7-LAN is designed for quick commissioning. After the module has been plugged into the bus or externally supplied with 24V DC, only an IP address is assigned via the TIC-driver or directly via the Web-interface . The controllers can then be accessed from the network.
With the TIC-driver, there is no need for any additional installation outside of the Siemens world. The configuration takes place directly in the PG-PC interface settings and is therefore optimally integrated. Any network device that speaks S7-TCP/IP RFC1006, such as HMI-devices or PGs, can access the module directly.
In the S7-project itself, the adapter can be integrated using a placeholder entry. This is not a must, operation without project change is possible immediately. The S7-communication runs directly via S7-TCP/IP and expands each MPI-/PROFIBUS with a network gateway. It doesn't matter which control types (S7-200 / S7-300 / S7-400) are connected to the fieldbus of the PLC network.

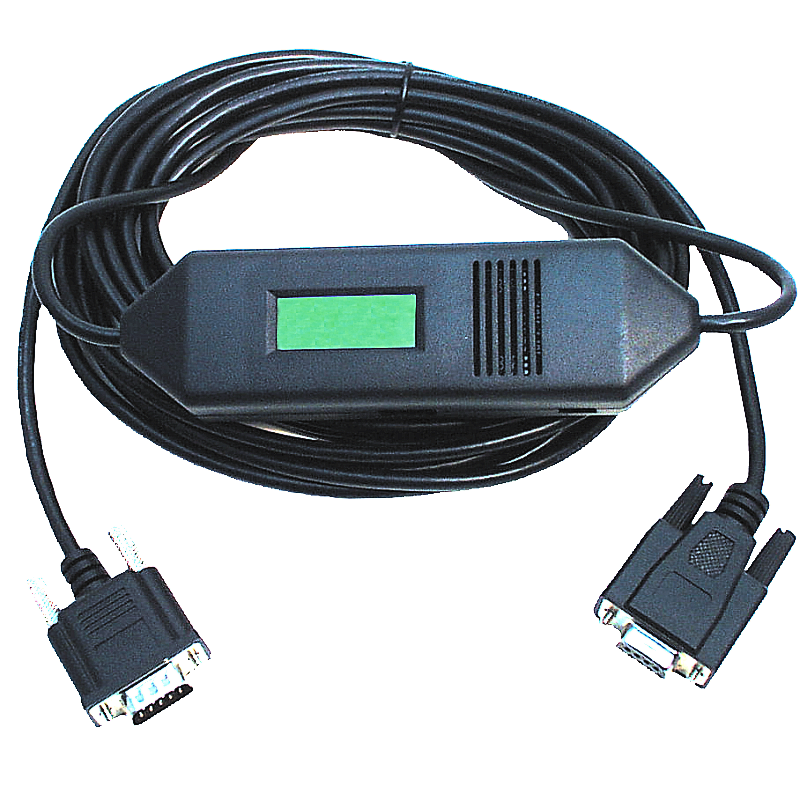

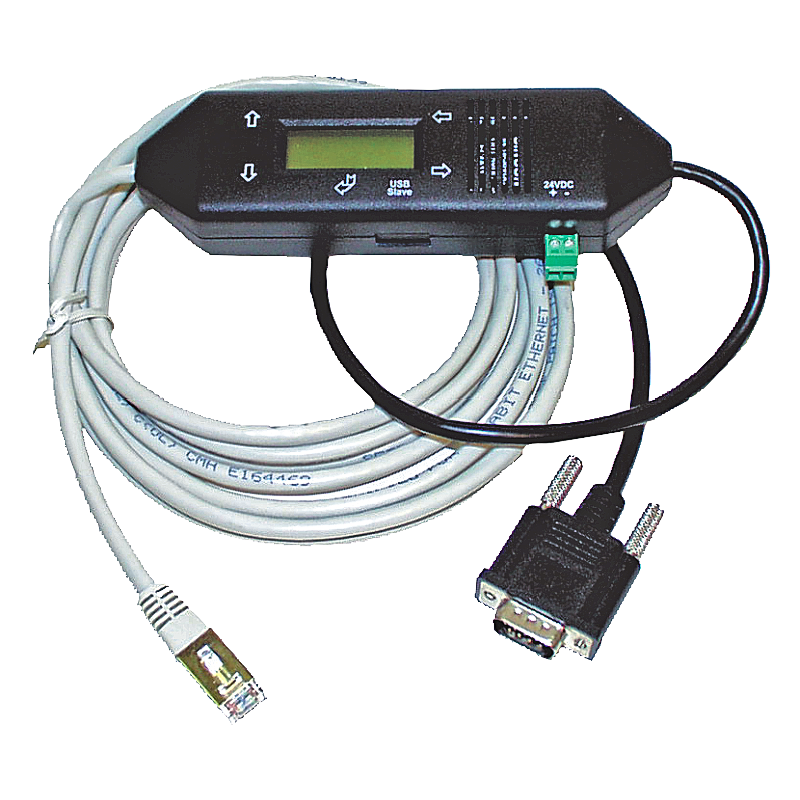

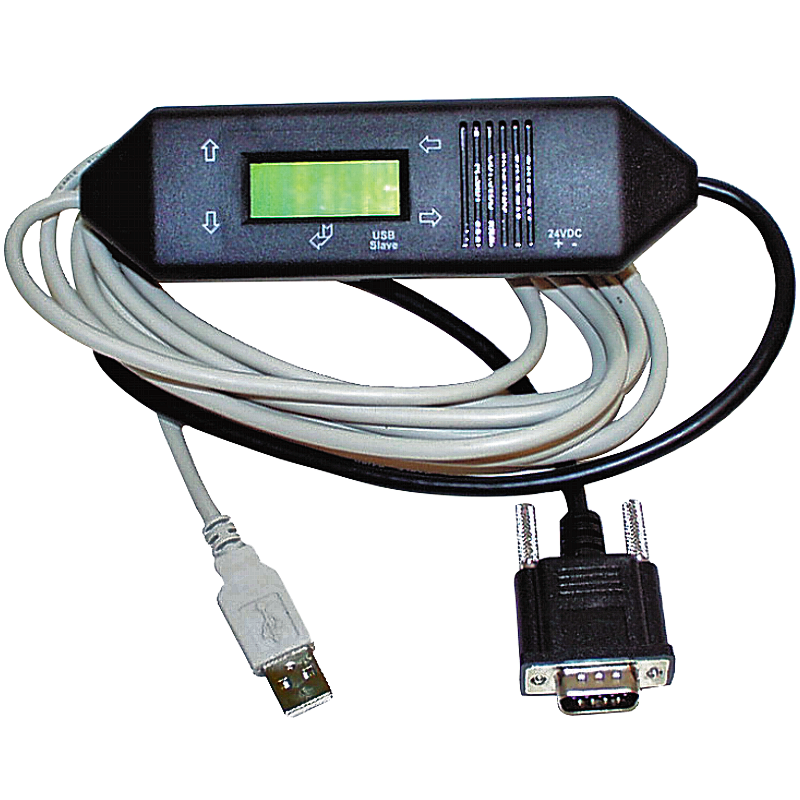

Programming adapter S7

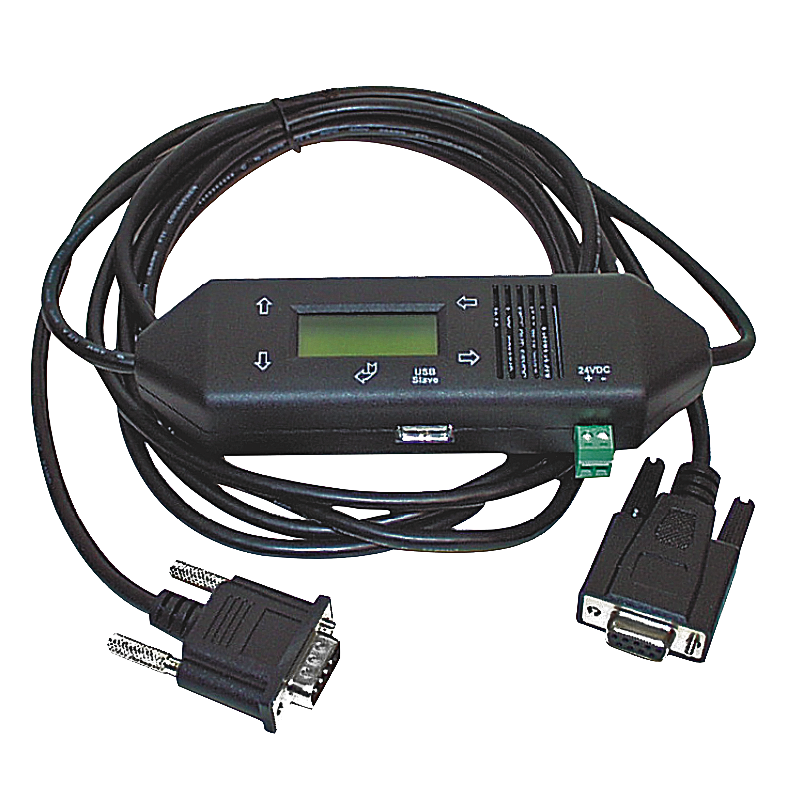

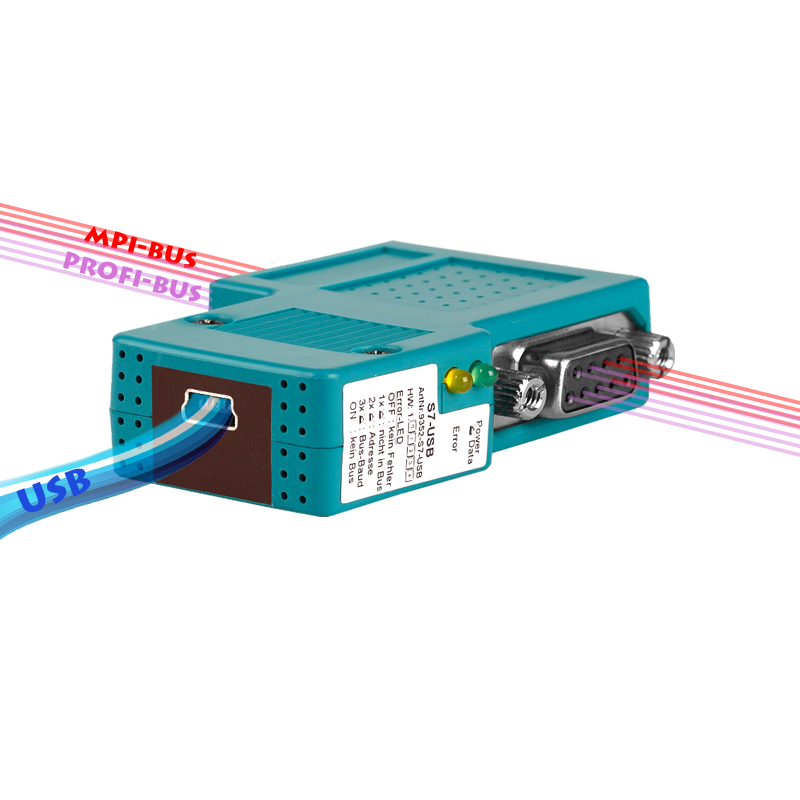

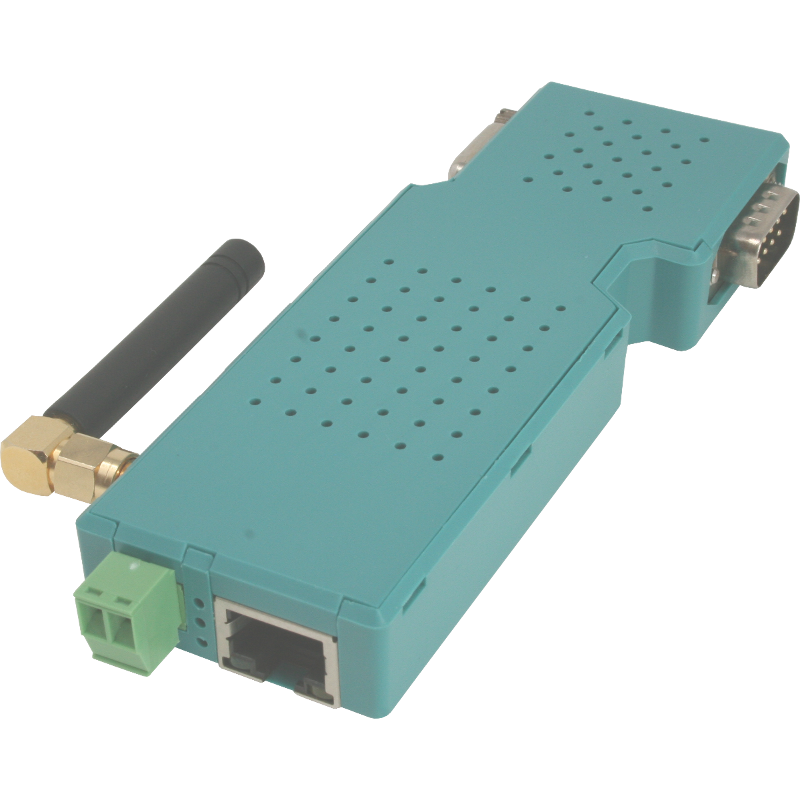

	MPI/PPI	MPI - II	MPI - USB	MPI - LAN	S7 - USB	S7 - LAN	S7 - BRIDGE	S7 - GATE	S7 - LAN++
PPI-Bus
PPI 9.6 KBit/s - 19.2 KBit/s	x	x	x	x	x	x	x	x	x
Multimaster 9.6 KBit/s - 187.5 KBit/s		x	x	x	x	x	x	x	x
MPI-Bus
19.2 KBit/s	x	x	x	x	x	x	x	x	x
187.5 KBit/s	x	x	x	x	x	x	x	x	x
1.5 MBit/s		x	x	x	x	x	x	x	x
Profibus
9.6 KBit/s		x	x	x	x	x	x	x	x
19.2 KBit/s	x	x	x	x	x	x	x	x	x
45.45 KBit/s		x	x	x	x	x	x	x	x
93.75 KBit/s		x	x	x	x	x	x	x	x
187.5 KBit/s	x	x	x	x	x	x	x	x	x
500 KBit/s		x	x	x	x	x	x	x	x
1.5 MBit/s		x	x	x	x	x	x	x	x
3.0 MBit/s		x	x	x	x	x	x	x	x
6.0 MBit/s		x	x	x	x	x	x	x	x
12.0 MBit/s		x	x	x	x	x	x	x	x
Profibus-profile
DP	x(12)	x	x	x	x	x	x	x	x
standard	x(12)	x	x	x	x	x	x	x	x
universal(DP/FMS)		x	x	x	x	x	x	x	x
RS 232
9.6 KBit/s	x(19)	x(19)
19.2 KBit/s	x	x
38.4 KBit/s	x	x
57.6 KBit/s	x(9)	x(9)
115.2 KBit/s	x(9)	x(9)
USB
USB 1.1 (6)		x(1)	x		x(2)
LAN
10/100BaseTx				x(7)		x	x	x	x

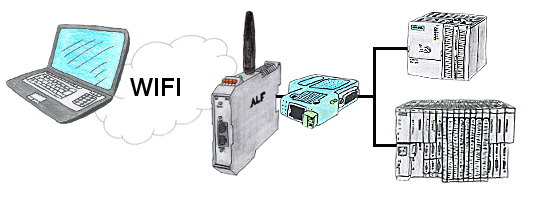

WIFI
2.4 GHz							x
TeleService operation
with S7-300/400	x(14)(18)	x(14)(18)
baud rates at TS-operation directly at the PC
9.6 KBit/s	x	x
19.2 KBit/s	x	x
38.4 KBit/s	x(8)	x(8)
57.6 KBit/s	x(8)	x(8)
baud rates at TS-operation directly with a modem
9.6 KBit/s	x	x
19.2 KBit/s	x	x
38.4 KBit/s	x	x
57.6 KBit/s	x	x
115.2 KBit/s	x	x
HMI
9.6 KBit/s	x	x	x(13)	x(13)	x(13)	x(13)	x(13)	x(13)	x(13)
19.2 KBit/s	x	x	x(13)	x(13)	x(13)	x(13)	x(13)	x(13)	x(13)
38.4 KBit/s	x	x	x(13)	x(13)	x(13)	x(13)	x(13)	x(13)	x(13)
57.6 KBit/s	x	x	x(13)	x(13)	x(13)	x(13)	x(13)	x(13)	x(13)
115.2 KBit/s	x	x	x(13)	x(13)	x(13)	x(13)	x(13)	x(13)	x(13)
update
firmware-update	x(10)	x(10)	x(15)	x(15)	x(15)	x(15)	x(15)	x(15)	x(15)
input/online help
keypad		x	x	x		x(21)	x(21)	x(21)	x(21)
display	x	x	x	x		x(21)	x(21)	x(21)	x(21)
PD connections (maximum)
PLCVCOM		1	1	1	1	1	1	1	1
RFC1006				8		8	32	32	32
AG connections (maximum)
passive subscriber	1	15	15	15	15	15	15	15	15
active subscriber	126	126	126	126	126	126	126	126	126
more functions
integrated PLC-firewall							x	x	x
display diagnostic-buffer in the webbrowser							x	x	x
webserver for configuration				x		x	x	x	x
Remote access over existing VPN-channel				x		x	x	x	x

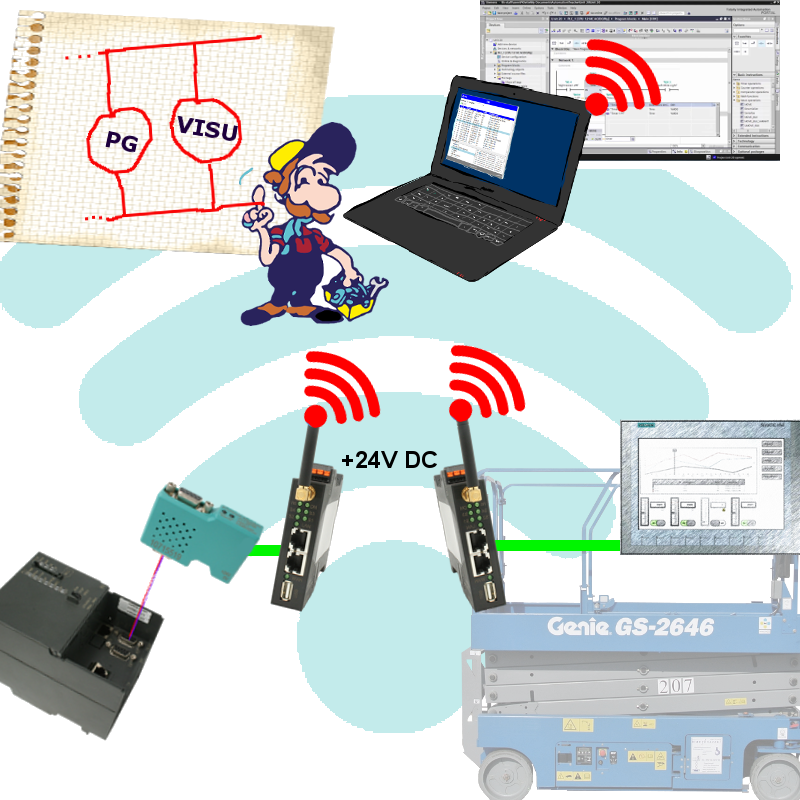

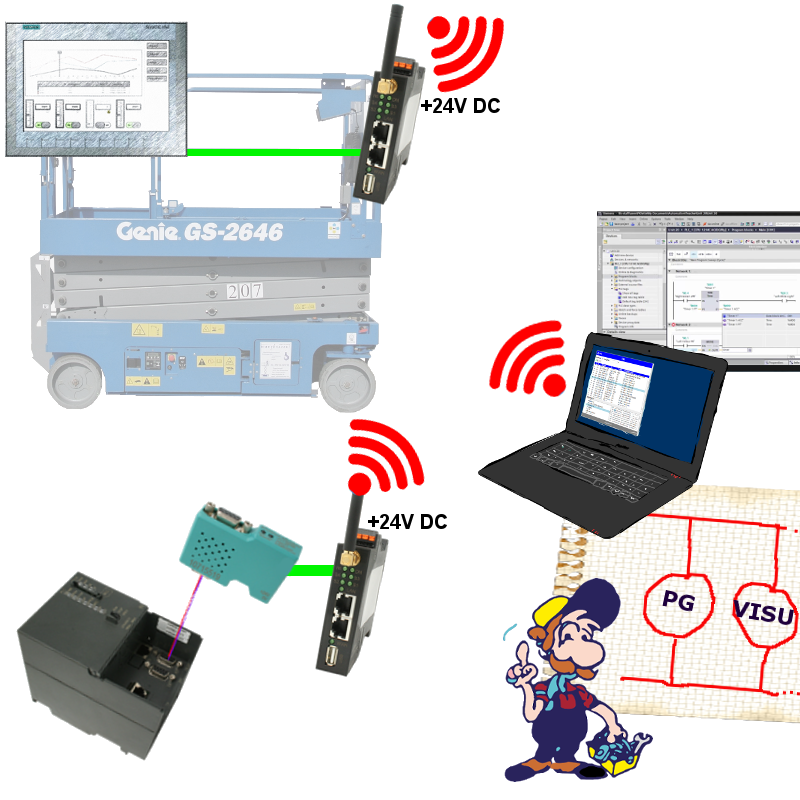

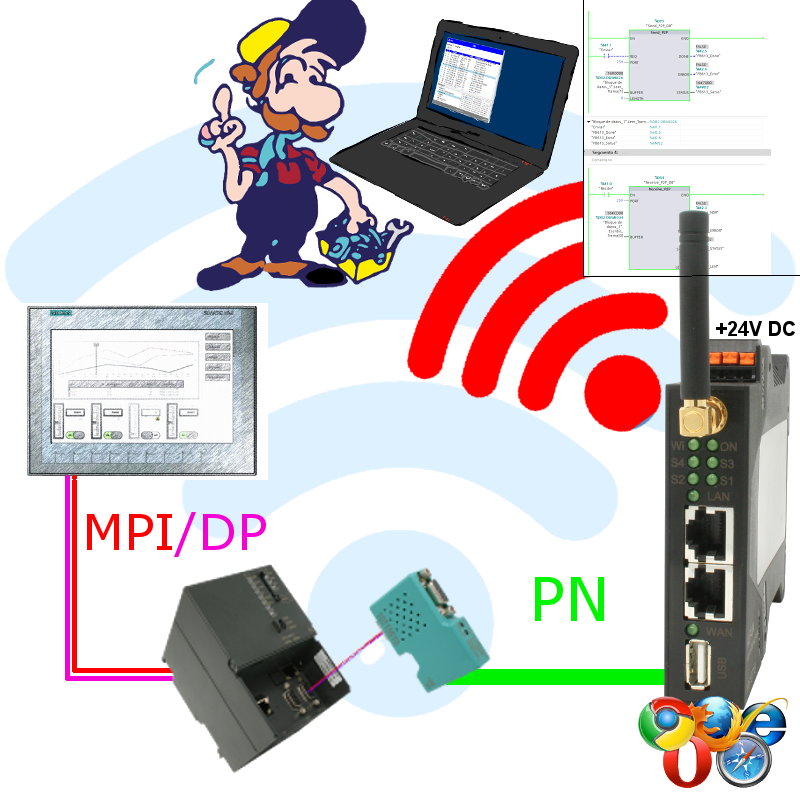

Access via existing WLAN-channel				x		x	x	x	x
status/control variable				x		x	x	x	x
S7 on S7/S5 DB exchange				x		x	x	x	x
S5 on MPI DB exchange		only as S5toMPI
S7 on MPI (Send/Fetch)				x		x	x	x	x
Profinet Gateway				x		x	x	x	x
Time in PLC from NTP-server				x		x	x	x	x
galvanic separation
to the bus (screen connected through)	1KV	1KV	1KV	1,5KV	1KV	1,5KV	1,5KV	1,5KV	1,5KV
mounting
wall monuting (with opt. wall mounting-set)	x	x	x	x
upgrading with
CheapConn+cable	x	x	x	x
supports
WIN 98	x	x(3)		x		x	x	x	x
WIN 98 SE	x	x	x	x	x	x	x	x	x
WIN ME	x	x	x	x	x	x	x	x	x
WIN NT	x	x(5)	x(5)	x	x(5)
WIN 2000	x	x	x	x	x	x	x	x	x
WIN XP Home (4)	x	x	x	x	x	x	x	x	x
WIN XP Professional	x	x	x	x	x	x	x	x	x
Vista(32bit)	x	x	x	x	x	x	x	x	x
Win7(32bit)	x	x	x	x	x	x	x	x	x
Win7(64bit)	(22)	x(23)	x(20)	x(20)	x(20)	x(20)	x(20)	x(20)	x(20)
Win8/8.1	(22)	x(23)	x(20)	x(20)	x(20)	x(20)	x(20)	x(20)	x(20)
Win10	(22)	x(23)	x(20)	x(20)	x(20)	x(20)	x(20)	x(20)	x(20)
Win11	(22)	x(23)	x(20)	x(20)	x(20)	x(20)	x(20)	x(20)	x(20)
(1) just with USB-cable plug <-> plug, type A <-> A, item number: 9352.1 (2) just with USB-cable plug <-> plug, type A <-> mini B, item number: 9352.3 (3) only serial communication (4) Siemens Step7 V5.2 and higher dont run with this operationing system (5) USB-communication is only possible with the special driver for Win NT (6) USB 2.0 is backward compatible to 1.1 (7) Cable is designed for direct connection to PC network card socket. It can also be a hub / switch with uplink port or operated at a hub / switch with automatic detection of assignement and adaptation (8) only in combination with the MPI-Speed-driver („continously-active“) (9) Siemens Step7 supports these baud rates only with the MPI-Speed-Utility (10) Update directly with PC or via Tele-Network if the cable is connected to a device of the Tele-Network-family (Tele-Link, Tele-Book or Tele-Professional) (11) only in the mode: MultiMaster-Mode (12) up to a maximum baud rate of 187.5 KBit/s (13) In this transmission, the baud rate is irrelevant, because it communicates via a virtual COM-port. (14) with the use of the TS-adapter / item number: 9350.TS (15) Update directly with PC and TIC-driver (18) Operation requires Step 7 with additional software Tele-Service (TS) from Siemens (19) only at PPI-communication possible (20) Only with TIC-driver (21) with integrated webserver possible (22) No support of Siemens Step7-software possible (23) Only with USB and with TIC-driver

Remote maintenance

	TELE LINK NETWORK
	TELE-PROF-II	TELE-PROF	TELE-BOOK	MPI-Modem	TELEService	S5-LAN	S7-LAN	TeleRouter
secured modem-protocol	✓	✓	✓
additional software needed				Siemens TS -Software	Siemens TS -Software	VPN-Client	VPN-Client
Providing WinTELEPROF-software	✓	✓	✓
modem	analogue/ISDN	analogue	opt. via PCMCIA	analogue/GSM	analogue/ISDN/GSM	internet-connection	internet-connection	internet-connection
modem for world wide use	✓	✓	✓	✓	✓
interfaces
MPI/Profibus	9600-12MBd			9600-12MBd	9600-12MBd		9600-12MBd
RS232	2x	2x	2x	1x	1x
TTY	2x	2x	2x			1x
PCMCIA	2x (optionally)	1x	1x
Ethernet	10/100BaseTx					1x	1x	5x
USB	2x				1x
LCD-display	✓	✓	✓	✓	instead 10 LEDs	instead status-LED	instead webserver	instead webserver
supported PLC-protocols *
S7	✓	✓	✓	✓	✓		✓
S5	✓	✓ (optional)	✓ (optional)			✓
Pilz PSS	✓	✓ (optional)	✓ (optional)
Allen-Bradley	✓	✓ (optional)	✓ (optional)
AEG		✓ (optional)	✓ (optional)
Bosch		✓ (optional)	✓ (optional)
Telemecanique		✓ (optional)	✓ (optional)
GE-Fanuc		✓ (optional)	✓ (optional)
Klöckner-Moeller		✓ (optional)	✓ (optional)
Mitsubishi		✓ (optional)	✓ (optional)
SMS-sending/Pager(S5/S7)	✓	✓	✓		✓ (no pager)			only for analogue / ISDN
HMI-messaging module(S5/S7)	✓							✓
SMS-receive with GSM					✓
DTMF with analogue					✓
e-mail-dispatch	✓				✓			✓
FAX-dispatch(S5/S7)	✓	✓ (optional)	✓ (optional)					only for analogue / ISDN
PLC-data coupling(S5/S7)	✓	✓ (optional)	✓ (optional)			✓	✓
ASCII-transfer from S5/S7	✓	✓ (optional)	✓ (optional)			only with ASCII-LAN
internet-coupling	✓
Usage as dial-up-router	✓							✓
power supply	24V/DC	24V/DC	24V/DC	24V/DC	24V/DC	24V/DC	24V/DC	24V/DC
dimensions w x h x d (in mm)	High: 67 x 280 x 170 FLAT: 300 x 175 x 70	300 x 175 x 66	235 x 162 x 37	90 x 162 x 54	40 x 125 x 115	42 x 15 x 65	65 x 43 x 17	154 x 92 x 28
* other PLC types on request
